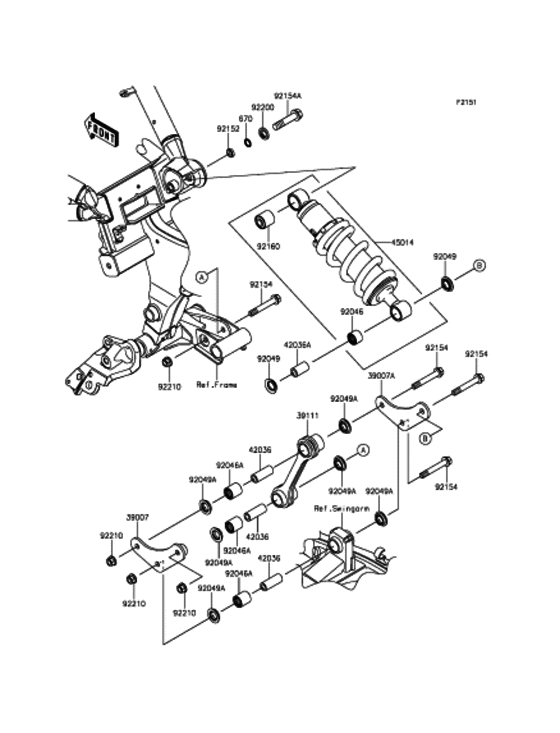

サスペンション/ショックアブソーバ Diagram Kawasaki EN650 Vulcan S
- Year
- 2016
- Colour
- Metallic Matte Carbon Gray (51B)
- Sales region
- Japan
- Engine Capacity
- 650
- Frame
- EN650A-A04902-
- Engine
- ER650AEA00001-
- Model
- Vulcan S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
670
|
670
670B2012 O RING,12MMウンドウヨウ |
670B2012 |
from US $2.84 |
||
|
39007
|
39007
39007-0385-21 ARM-SUSP,LINK,LH,F.BLサスプ |
39007-0385-21 |
from US $42.04 |
||
|
39007A
|
39007A
39007-0386-21 ARM-SUSP,LINK,RH,F.BLサスプ |
39007-0386-21 |
from US $42.04 |
||
|
39111
|
39111
39111-0339 ROD-TIE,SUSPENSIONタイ |
39111-0339 |
from US $102.33 |
||
|
42036
|
42036
42036-0718 SLEEVE,10.1X17X44.510.1X17X44.5 |
42036-0718 |
from US $14.26 |
||
|
42036A
|
42036A
42036-1344 SLEEVE,10.1X18X32 |
42036-1344 |
from US $7.92 |
||
|
45014
|
45014
45014-0472-10 Shock absorber,black |
45014-0472-10 |
from US $312.18 |
||
|
92046
|
92046
92046-1272 BEARING-NEEDLE,SFYZM1ニ-ドル |
92046-1272 |
from US $15.68 |
||
|
92046A
|
92046A
92046-1273 BEARING-NEEDLE,SFYZM1ニ-ドル |
92046-1273 |
from US $18.04 |
||
|
92049
|
92049
92049-0133 SEAL-OILオイル |
92049-0133 |
from US $5.70 |
||
|
92049A
|
92049A
92049-1223 SEAL-OIL,MHA17245.7Fオイル |
92049-1223 |
from US $6.91 |
||
|
92152
|
92152
92152-0811 COLLAR,12.1X16.8X4.4 |
92152-0811 |
from US $2.22 |
||
|
92154
|
92154
92154-0264 BOLT,FLANGED,10X67 |
92154-0264 |
from US $2.53 |
||
|
92154A
|
92154A
92154-0836 BOLT,FLANGED,12X55 |
92154-0836 |
from US $6.18 |
||
|
92160
|
92160
92160-1161 DAMPER,SHOCK ABSORBER |
92160-1161 |
from US $19.01 |
||
|
92200
|
92200
92200-0519 WASHER,12.5X24X3.2 |
92200-0519 |
from US $1.90 |
||
|
92210
|
92210
92210-1139 NUT |
92210-1139 |
from US $2.53 |
