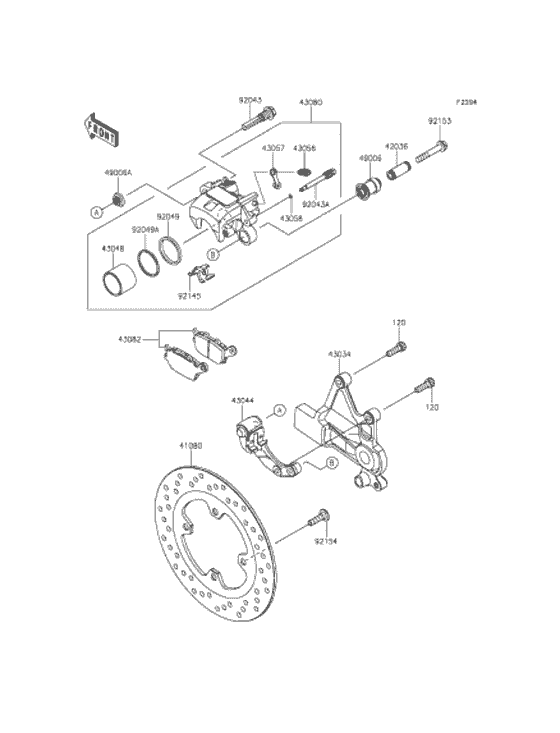

リヤブレーキ Diagram Kawasaki EN650 Vulcan S
- Year
- 2016
- Colour
- Metallic Matte Carbon Gray (51B)
- Sales region
- Japan
- Engine Capacity
- 650
- Frame
- EN650A-A04902-
- Engine
- ER650AEA00001-
- Model
- Vulcan S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CB0825 BOLT-SOCKETロツカクアナ |
120CB0825 |
from US $1.27 |
||
|
41080
|
41080
41080-0625-11H DISC,RR,BLACK |
41080-0625-11H |
from US $288.95 |
||
|
42036
|
42036
42036-0050 SLEEVE |
42036-0050 |
from US $4.59 |
||
|
43034
|
43034
43034-0103 HOLDER-BRAKE,RRブレ-キ |
43034-0103 |
from US $91.70 |
||
|
43044
|
43044
43044-0080 HOLDER-COMP-CALIPERキヤリパ |
43044-0080 |
from US $109.66 |
||
|
43048
|
43048
43048-0008 PISTON-CALIPERキヤリパ |
43048-0008 |
from US $18.37 |
||
|
43056
|
43056
43056-1055 Breather-brake |
43056-1055 |
from US $8.41 |
||
| replacement | |||||
|
43056
|
43056
43056-1056 BREATHER,BRAKE |
43056-1056 |
from US $10.14 |
||
|
43057
|
43057
43057-1001 CAP-BREATHERブリ-ザ |
43057-1001 |
from US $3.48 |
||
|
43058
|
43058
43058-1100 RING,STOPPER |
43058-1100 |
from US $7.92 |
||
|
43080
|
43080
43080-0156-DJ CALIPER-SUB-ASSY,RR,B |
43080-0156-DJ |
from US $233.77 |
||
|
43082
|
43082
43082-0155 PAD-ASSY-BRAKEブレ-キ |
43082-0155 |
from US $78.30 |
||
|
49006
|
49006
49006-0058 BOOT |
49006-0058 |
from US $8.55 |
||
|
49006A
|
49006A
49006-1242 BOOT |
49006-1242 |
from US $3.64 |
||
|
92043
|
92043
92043-0137 PIN |
92043-0137 |
from US $7.44 |
||
|
92043A
|
92043A
92043-0820 PIN,HANGER |
92043-0820 |
from US $4.75 |
||
|
92049
|
92049
92049-1449 SEAL-OILオイル |
92049-1449 |
from US $3.17 |
||
|
92049A
|
92049A
92049-1450 SEAL-OILオイル |
92049-1450 |
from US $2.85 |
||
|
92145
|
92145
92145-0493 SPRING,PAD |
92145-0493 |
from US $3.64 |
||
|
92153
|
92153
92153-1826 BOLT,FLANGED |
92153-1826 |
from US $5.54 |
||
|
92154
|
92154
92154-0844 BOLT,SOCKET,8X30 |
92154-0844 |
from US $2.06 |
||
