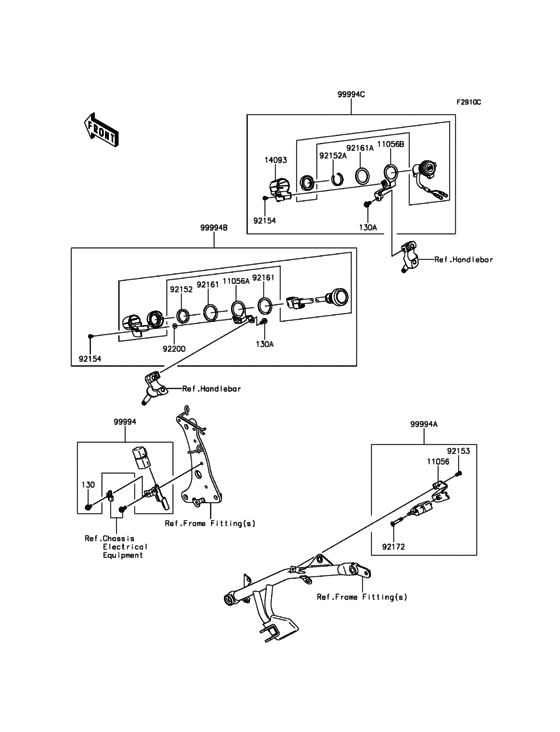

Accessory(Helmet Lock etc.) Diagram Kawasaki EN650 Vulcan S ABS
- Year
- 2015
- Sales region
- Europe (General)
- Engine Capacity
- 650
- Model
- Vulcan S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130AA0610 BOLT-FLANGED,6X10 |
130AA0610 |
from US $0.82 |
||
|
130A
|
130A
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.43 |
||
|
11056
|
11056
11056-7089 BRACKET,HELMET LOCK |
11056-7089 |
from US $63.45 |
||
|
11056A
|
11056A
11056-7104 BRACKET,GEAR POSITION |
11056-7104 |
from US $8.87 |
||
|
11056B
|
11056B
11056-7538 BRACKET |
11056-7538 |
from US $8.87 |
||
|
14093
|
14093
14093-0212 COVER,SOCKET |
14093-0212 |
from US $5.54 |
||
|
92152
|
92152
92152-2122 COLLAR |
92152-2122 |
from US $6.97 |
||
|
92152A
|
92152A
92152-2135 COLLAR |
92152-2135 |
from US $5.23 |
||
|
92153
|
92153
92153-0906 BOLT,6X12 |
92153-0906 |
from US $2.69 |
||
|
92154
|
92154
92154-1292 BOLT,SOCKET,5X10ソケツト，5X10 |
92154-1292 |
from US $0.79 |
||
|
92161
|
92161
92161-1738 DAMPER |
92161-1738 |
from US $5.23 |
||
|
92161A
|
92161A
92161-1789 DAMPER |
92161-1789 |
from US $3.17 |
||
|
92172
|
92172
92172-0835 SCREW,HEXLOBE,6X35ヘツクスローブ，6X35 |
92172-0835 |
from US $1.27 |
||
|
92200
|
92200
92200-1011 WASHER,NYLON,5.2X13X1 |
92200-1011 |
from US $1.90 |
||
|
99994
|
99994
99994-0510 RELAY KIT |
99994-0510 |
from US $28.87 |
||
|
99994A
|
99994A
99994-0538 HELMET LOCK |
99994-0538 |
from US $159.86 |
||
| replacement | |||||
|
99994A
|
99994A
99994-0880 HELMET LOCK |
99994-0880 |
US $191.52 |
||
|
99994B
|
99994B
99994-0540 GEAR POSITION INDICAT |
99994-0540 |
from US $297.66 |
||
|
99994C
|
99994C
99994-0541 DC POWER OUTLET |
99994-0541 |
from US $37.25 |
||
