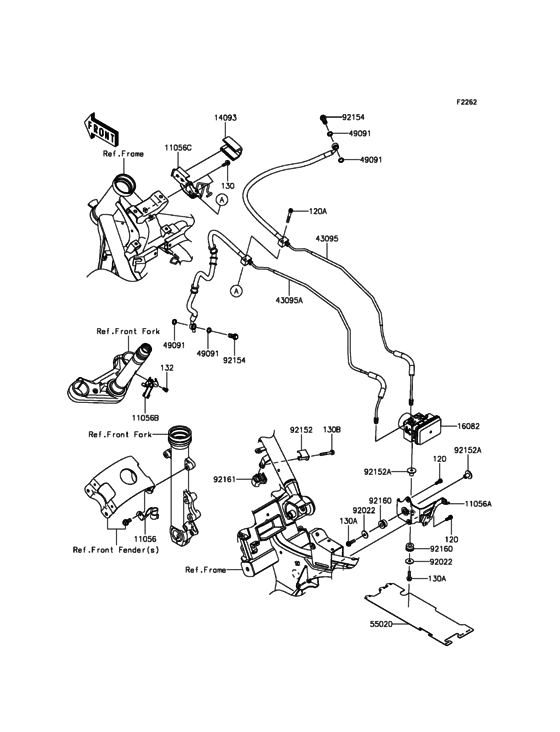

Brake Piping Diagram Kawasaki EN650 Vulcan S ABS
- Year
- 2015
- Sales region
- Europe (General)
- Engine Capacity
- 650
- Model
- Vulcan S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CA0616 BOLT-SOCKET,6X16 |
120CA0616 |
from US $1.11 |
||
|
120A
|
120A
120CA0645 BOLT-SOCKET,6X45 |
120CA0645 |
from US $0.95 |
||
|
130
|
130
130BA0616 BOLT-FLANGED,6X16 |
130BA0616 |
from US $0.79 |
||
|
130A
|
130A
130BA0622 BOLT-FLANGED,6X22 |
130BA0622 |
from US $0.79 |
||
|
130B
|
130B
130BB0635 BOLT-FLANGED,6X35 |
130BB0635 |
from US $1.27 |
||
|
132
|
132
132BB0608 BOLT-FLANGED-SMALL |
132BB0608 |
from US $1.11 |
||
|
11056
|
11056
11056-4120 ブラケット，フロント フエンダ |
11056-4120 |
US $3.64 |
||
|
11056A
|
11056A
11056-4167 BRACKET,ABS UNIT |
11056-4167 |
from US $20.64 |
||
|
11056B
|
11056B
11056-4358 BRACKET,FORK UNDER HO |
11056-4358 |
from US $10.61 |
||
|
11056C
|
11056C
11056-4376 BRACKET,BRAKE HOSE |
11056-4376 |
from US $10.14 |
||
|
14093
|
14093
14093-0145 COVER,BRAKE HOSE BKT. |
14093-0145 |
from US $3.48 |
||
|
16082
|
16082
16082-0742 Pump-Assy-Oil,Abs |
16082-0742 |
from US $1,177.57 |
||
|
43095
|
43095
43095-0838 HOSE-BRAKE,ABS UNIT-M |
43095-0838 |
from US $160.07 |
||
|
43095A
|
43095A
43095-0914 HOSE-BRAKE,ABS UNIT-F |
43095-0914 |
from US $182.95 |
||
|
49091
|
49091
49091-0001 WASHER-SEAL,10.1X14.5 |
49091-0001 |
from US $1.27 |
||
|
55020
|
55020
55020-1885 GUARD,ABS UNIT |
55020-1885 |
from US $15.52 |
||
|
92022
|
92022
92022-237 WASHER 6.5X22X1.6T |
92022-237 |
from US $3.20 |
||
|
92152
|
92152
92152-0996 COLLAR |
92152-0996 |
from US $2.22 |
||
|
92152A
|
92152A
92152-2105 COLLAR,6.5X10X15.6 |
92152-2105 |
US $4 |
||
|
92154
|
92154
92154-0732 BOLT,FLANGED,10X23 |
92154-0732 |
from US $2.53 |
||
|
92160
|
92160
92160-1141 DAMPER |
92160-1141 |
from US $3.73 |
||
|
92161
|
92161
92161-0347 DAMPER,BRAKE PIPEブレーキ パイプ |
92161-0347 |
from US $2.85 |
