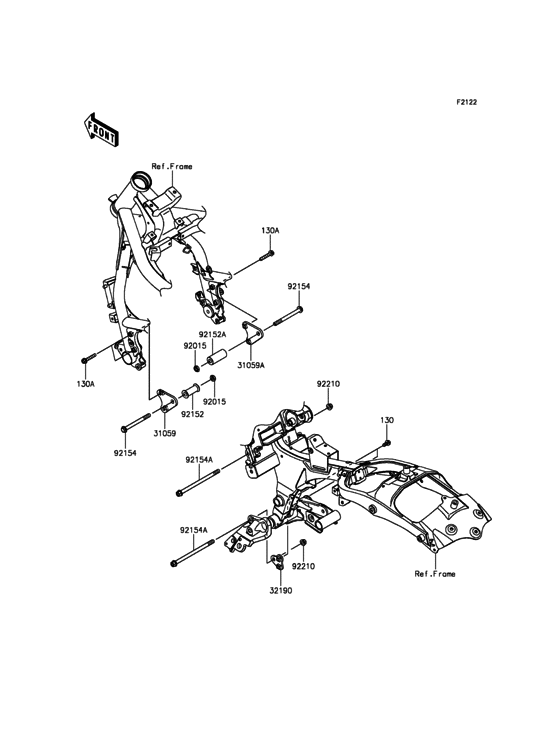

Engine Mount Diagram Kawasaki EN650 Vulcan S ABS
- Year
- 2015
- Sales region
- Europe (General)
- Engine Capacity
- 650
- Model
- Vulcan S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0816 BOLT-FLANGED |
130BA0816 |
from US $1.11 |
||
|
130A
|
130A
130BA0845 BOLT-FLANGED |
130BA0845 |
from US $1.43 |
||
|
31059
|
31059
31059-0010 BRACKET-COMP-ENGINE,L |
31059-0010 |
from US $10.45 |
||
|
31059A
|
31059A
31059-0011 BRACKET-COMP-ENGINE,R |
31059-0011 |
from US $10.45 |
||
|
32190
|
32190
32190-0560 BRACKET-ENGINE,RR,RH |
32190-0560 |
from US $3.48 |
||
|
92015
|
92015
92015-1188 NUT,LOCK,10MM,BLACK |
92015-1188 |
from US $4.25 |
||
|
92152
|
92152
92152-0963 COLLAR,11X26X50.8 |
92152-0963 |
from US $8.87 |
||
|
92152A
|
92152A
92152-1897 COLLAR,11X26X60.7 |
92152-1897 |
from US $11.09 |
||
|
92154
|
92154
92154-0716 BOLT,FLANGED,10X110 |
92154-0716 |
from US $9.82 |
||
|
92154A
|
92154A
92154-0840 BOLT,FLANGED,10X170 |
92154-0840 |
from US $10.93 |
||
|
92210
|
92210
92210-1081 NUT |
92210-1081 |
from US $9.20 |
