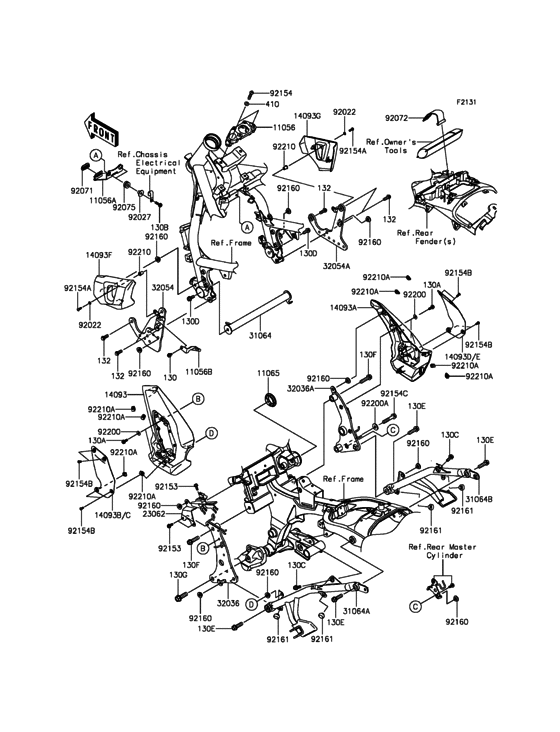

Frame Fittings Diagram Kawasaki EN650 Vulcan S ABS
- Year
- 2015
- Sales region
- Europe (General)
- Engine Capacity
- 650
- Model
- Vulcan S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0610 BOLT-FLANGED,6X10 |
130BA0610 |
from US $0.79 |
||
|
130A
|
130A
130BA0616 BOLT-FLANGED,6X16 |
130BA0616 |
from US $0.79 |
||
|
130B
|
130B
130BA0622 BOLT-FLANGED,6X22 |
130BA0622 |
from US $0.79 |
||
|
130C
|
130C
130BA0820 BOLT-FLANGED,8X20 |
130BA0820 |
from US $1.43 |
||
|
130D
|
130D
130CA0820 BOLT-FLANGED,8X20 |
130CA0820 |
from US $0.69 |
||
|
130E
|
130E
130CA1035 BOLT-FLANGED |
130CA1035 |
from US $1.43 |
||
|
130F
|
130F
130CA1040 BOLT-FLANGED |
130CA1040 |
from US $1.43 |
||
|
130G
|
130G
130CB1240 BOLT-FLANGED,12X40 |
130CB1240 |
from US $1.90 |
||
|
132
|
132
132BB0822 BOLT-FLANGED-SMALL,8X |
132BB0822 |
from US $0.95 |
||
|
410
|
410
410AA0800 WASHER-PLAIN-SMALL,8M |
410AA0800 |
from US $0.63 |
||
|
11056
|
11056
11056-0805 BRACKET,IGNITION SW. |
11056-0805 |
from US $30.52 |
||
|
11056A
|
11056A
11056-4099 BRACKET,REGULATOR |
11056-4099 |
from US $10.14 |
||
|
11056B
|
11056B
11056-4456 BRACKET,STEP STAY COV |
11056-4456 |
from US $3.33 |
||
|
11065
|
11065
11065-0868-18T CAP,SHOCK BKT.,F.S.BL |
11065-0868-18T |
from US $2.69 |
||
|
14093
|
14093
14093-0115 COVER,PIVOT,LH |
14093-0115 |
from US $55.50 |
||
|
14093A
|
14093A
14093-0116 COVER,PIVOT,RH |
14093-0116 |
from US $55.50 |
||
|
14093B
|
14093B
14093-0117-35Z COVER,PIVOT,PLATE,LH, |
14093-0117-35Z |
from US $58.97 |
||
|
14093D
|
14093D
14093-0118-35Z COVER,PIVOT,PLATE,RH, |
14093-0118-35Z |
from US $58.97 |
||
|
14093F
|
14093F
14093-0348-18T COVER,STEP STAY,LH,F. |
14093-0348-18T |
from US $55.50 |
||
|
14093G
|
14093G
14093-0349-18T COVER,STEP STAY,RH,F. |
14093-0349-18T |
from US $55.50 |
||
|
23062
|
23062
23062-0822 BRACKET-COMP,SIDE COV |
23062-0822 |
from US $15.84 |
||
|
31064
|
31064
31064-0649 PIPE-COMP,FR FRAME |
31064-0649 |
from US $16 |
||
|
31064A
|
31064A
31064-0650-18R PIPE-COMP,RR,LH,F.S.B |
31064-0650-18R |
from US $129.25 |
||
|
31064B
|
31064B
31064-0651-18R PIPE-COMP,RR,RH,F.S.B |
31064-0651-18R |
from US $129.25 |
||
|
32036
|
32036
32036-0349 BRACKET-SWINGARM,LH |
32036-0349 |
from US $61.78 |
||
|
32036A
|
32036A
32036-0350 BRACKET-SWINGARM,RH |
32036-0350 |
from US $61.78 |
||
|
32054
|
32054
32054-0075 BRACKET-STEP,LH |
32054-0075 |
from US $110.70 |
||
|
32054A
|
32054A
32054-0076 BRACKET-STEP,RH |
32054-0076 |
from US $103.97 |
||
|
92022
|
92022
92022-1977 WASHER,5.1X10X1.2 |
92022-1977 |
from US $2.53 |
||
|
92027
|
92027
92027-1450 COLLAR,L=13.1,BLACK |
92027-1450 |
from US $3.64 |
||
|
92071
|
92071
92071-0013 GROMMET |
92071-0013 |
from US $3.17 |
||
|
92072
|
92072
92072-0056 BAND,TOOL |
92072-0056 |
from US $0.95 |
||
|
92075
|
92075
92075-209 DAMPER RUBBER,RR FENR |
92075-209 |
from US $3.73 |
||
|
92153
|
92153
92153-0713 BOLT,6X16 |
92153-0713 |
from US $0.95 |
||
|
92154
|
92154
92154-0730 BOLT,TORX,8X35 |
92154-0730 |
from US $3.64 |
||
|
92154A
|
92154A
92154-1470 BOLT,SOCKET,5X16 |
92154-1470 |
from US $0.79 |
||
|
92154B
|
92154B
92154-1471 BOLT,SOCKET,5X12 |
92154-1471 |
from US $0.79 |
||
|
92154C
|
92154C
92154-1620 BOLT,FLANGED,10X50 |
92154-1620 |
from US $3.96 |
||
|
92160
|
92160
92160-1613 DAMPER |
92160-1613 |
from US $3.37 |
||
|
92161
|
92161
92161-0855 DAMPER |
92161-0855 |
from US $2.66 |
||
|
92200
|
92200
92200-0796 WASHER,6.5X16X1.0 |
92200-0796 |
from US $0.32 |
||
|
92200A
|
92200A
92200-1686 WASHER,10.2X25X2.3 |
92200-1686 |
from US $1.11 |
||
|
92210
|
92210
92015-1757 NUT,5MM |
92015-1757 |
from US $4.25 |
||
|
92210A
|
92210A
92210-0935 NUT,PLATE,5MM |
92210-0935 |
from US $1.11 |
