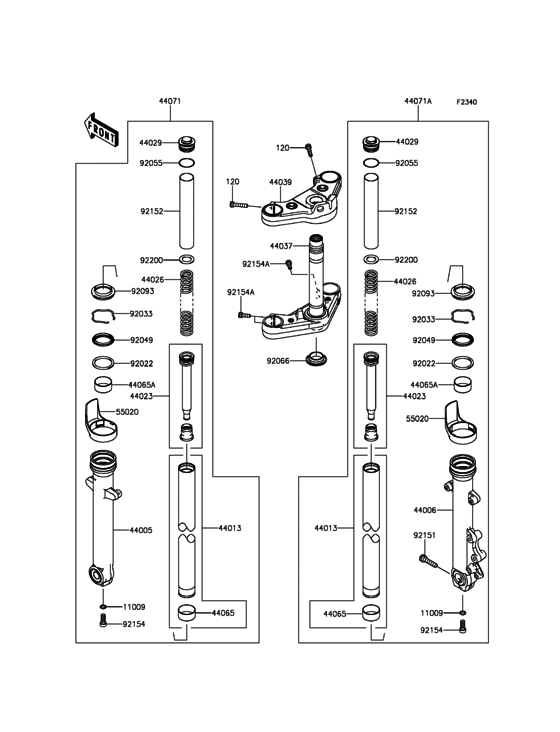

Front Fork Diagram Kawasaki EN650 Vulcan S ABS
- Year
- 2015
- Sales region
- Europe (General)
- Engine Capacity
- 650
- Model
- Vulcan S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CB0835 BOLT-SOCKET,8X35,BLAC |
120CB0835 |
from US $1.27 |
||
|
11009
|
11009
44045057 GASKET,FORK CYLINDER |
44045057 |
from US $3.33 |
||
|
44005
|
44005
44005-0101-32A PIPE-LEFT FORK OUTER, |
44005-0101-32A |
from US $216.35 |
||
|
44006
|
44006
44006-0101-32A PIPE-RIGHT FORK OUTER |
44006-0101-32A |
from US $216.35 |
||
|
44013
|
44013
44013-0270 PIPE-FORK INNER |
44013-0270 |
from US $367.36 |
||
|
44023
|
44023
44023-0133 CYLINDER-SET-FORK |
44023-0133 |
from US $80.34 |
||
|
44026
|
44026
44026-0196 SPRING-FRONT FORK |
44026-0196 |
from US $38.30 |
||
|
44029
|
44029
44029-0005 SEAT-FORK SPRING |
44029-0005 |
from US $29.47 |
||
|
44037
|
44037
44037-0150-18R HOLDER-FORK UNDER,F.S |
44037-0150-18R |
from US $261.36 |
||
|
44039
|
44039
44039-0146-21 HOLDER-FORK UPPER,F.B |
44039-0146-21 |
from US $261.36 |
||
|
44065
|
44065
44065-0014 BUSHING-FRONT FORK,IN |
44065-0014 |
from US $19.48 |
||
|
44065A
|
44065A
44065-1115 BUSHING-FRONT FORK |
44065-1115 |
from US $19.48 |
||
|
44071
|
44071
44071-0988-32A DAMPER-ASSY,FORK,LH,S |
44071-0988-32A |
from US $531.43 |
||
|
44071A
|
44071A
44071-0990-32A DAMPER-ASSY,FORK,RH,S |
44071-0990-32A |
from US $531.43 |
||
|
55020
|
55020
55020-0872 GUARD,FORK |
55020-0872 |
from US $7.29 |
||
|
92022
|
92022
92022-1298 WASHER,FORK OUTER TUB |
92022-1298 |
from US $6.57 |
||
|
92033
|
92033
92033-1036 CIRCLIP |
92033-1036 |
from US $3.80 |
||
|
92049
|
92049
92049-0073 SEAL-OIL |
92049-0073 |
from US $15.05 |
||
|
92055
|
92055
670B3032 0 RING,32MM |
670B3032 |
from US $1.84 |
||
|
92066
|
92066
92066-0817 PLUG |
92066-0817 |
from US $5.70 |
||
|
92093
|
92093
92093-1472 SEAL,FORK OUTER TUBE |
92093-1472 |
from US $15.36 |
||
|
92151
|
92151
92151-1357 BOLT,SOCKET,10X40 |
92151-1357 |
from US $2.53 |
||
|
92152
|
92152
92152-2153 COLLAR |
92152-2153 |
from US $7.92 |
||
|
92154
|
92154
92154-0296 BOLT,SOCKET,FORK CYLI |
92154-0296 |
from US $1.74 |
||
|
92154A
|
92154A
92154-1811 BOLT,SOCKET,8X20 |
92154-1811 |
from US $1.74 |
||
|
92200
|
92200
92200-1467 WASHER |
92200-1467 |
from US $6.02 |
