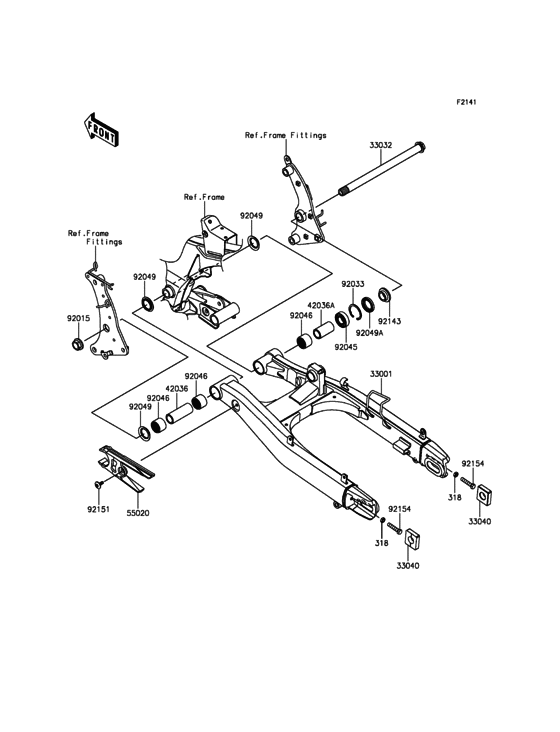

Swingarm Diagram Kawasaki EN650 Vulcan S ABS
- Year
- 2015
- Sales region
- Europe (General)
- Engine Capacity
- 650
- Model
- Vulcan S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
318
|
318
318BA0800 NUT-HEX-SMALL,8MM |
318BA0800 |
from US $0.63 |
||
|
33001
|
33001
33001-0625-18R ARM-COMP-SWING,F.S.BL |
33001-0625-18R |
from US $538.69 |
||
|
33032
|
33032
33032-0042 SHAFT-SWING ARM,20X30 |
33032-0042 |
from US $71.06 |
||
|
33040
|
33040
33040-1109 ADJUSTER-CHAIN |
33040-1109 |
from US $14.57 |
||
|
42036
|
42036
42036-0706 SLEEVE,LH,20.1X28X75. |
42036-0706 |
from US $22.74 |
||
|
42036A
|
42036A
42036-0707 SLEEVE,RH,20.1X28X52. |
42036-0707 |
from US $19.48 |
||
|
55020
|
55020
55020-0985 GUARD,CHAIN |
55020-0985 |
from US $21.84 |
||
|
92015
|
92015
92015-1724 NUT,FLANGED,20MM |
92015-1724 |
from US $9.03 |
||
|
92033
|
92033
92033-1041 CIRCLIP,42MM |
92033-1041 |
from US $3.48 |
||
|
92045
|
92045
92045-0017 BEARING-BALL,6004UL11 |
92045-0017 |
from US $14.26 |
||
|
92046
|
92046
92046-1202 BEARING-NEEDLE,BM2824 |
92046-1202 |
from US $20.28 |
||
|
92049
|
92049
92049-0132 SEAL-OIL |
92049-0132 |
from US $5.39 |
||
|
92049A
|
92049A
92049-0138 SEAL-OIL |
92049-0138 |
from US $5.39 |
||
|
92143
|
92143
92143-1727 COLLAR,SWING ARM,RH,L |
92143-1727 |
from US $12.67 |
||
|
92151
|
92151
92151-1149 BOLT,SOCKET,6X18 |
92151-1149 |
from US $6.21 |
||
|
92154
|
92154
92154-0837 BOLT,8X40 |
92154-0837 |
from US $1.90 |
