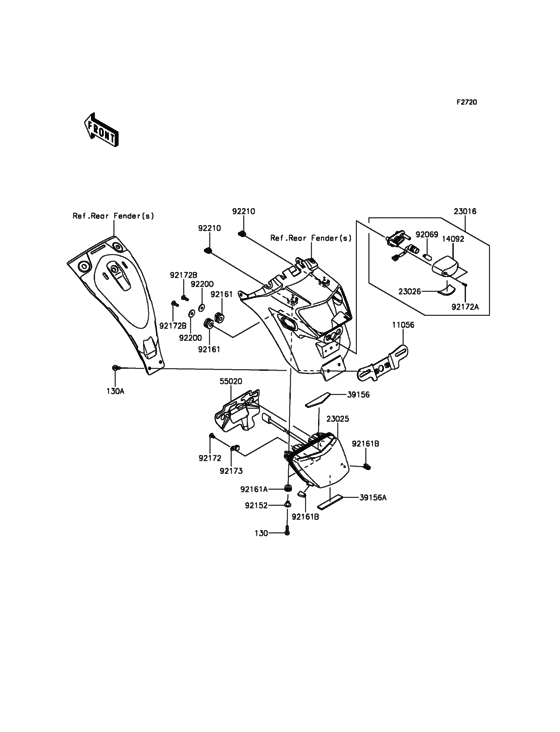

Taillight(s) Diagram Kawasaki EN650 Vulcan S ABS
- Year
- 2015
- Sales region
- Europe (General)
- Engine Capacity
- 650
- Model
- Vulcan S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0520 BOLT-FLANGED,5X20 |
130BA0520 |
from US $0.63 |
||
|
130A
|
130A
130BA0616 BOLT-FLANGED,6X16 |
130BA0616 |
from US $0.79 |
||
|
11056
|
11056
11056-7681 Bracket, License |
11056-7681 |
US $10.77 |
||
|
14092
|
14092
14092-0001 COVER,LICENSE LAMP |
14092-0001 |
from US $13.15 |
||
|
23016
|
23016
23016-0582 LAMP-ASSY,LICENCE |
23016-0582 |
from US $43.23 |
||
| replacements | |||||
|
23016
|
23016
23016-0609 LAMP-ASSY,LICENCE |
23016-0609 |
from US $43.23 |
||
|
23016
|
23016
23016-0658 LAMP-ASSY,LICENCE |
23016-0658 |
from US $43.23 |
||
|
23025
|
23025
23025-0342 LAMP-TAIL |
23025-0342 |
US $311.44 |
||
|
23026
|
23026
23026-0023 LENS,LICENCE LAMP |
23026-0023 |
from US $19.32 |
||
| replacements | |||||
|
23026
|
23026
23026-0028
LENS,LICENCE LAMP
|
23026-0028 |
— | ||
|
23026
|
23026
23026-0035 LENS,LICENCE LAMP |
23026-0035 |
from US $19.32 |
||
|
39156
|
39156
39156-1869 PAD,20X80X3 |
39156-1869 |
from US $1.27 |
||
|
39156A
|
39156A
39156-1928 PAD,15X76X3 |
39156-1928 |
from US $0.48 |
||
|
55020
|
55020
55020-1882 GUARD,TAIL LAMP |
55020-1882 |
from US $13.15 |
||
|
92069
|
92069
92069-1016 BULB,12V 5W |
92069-1016 |
from US $3.96 |
||
|
92152
|
92152
92152-1592 COLLAR |
92152-1592 |
from US $1.43 |
||
|
92161
|
92161
92161-0776 DAMPER |
92161-0776 |
from US $3.54 |
||
|
92161A
|
92161A
92161-1369 DAMPER,8X18X8.1 |
92161-1369 |
from US $0.63 |
||
|
92161B
|
92161B
92161-1694 DAMPER,TAIL LAMP |
92161-1694 |
from US $1.11 |
||
|
92172
|
92172
92172-0262 SCREW,TAPPING,5X10 |
92172-0262 |
from US $0.63 |
||
|
92172A
|
92172A
92172-0343 SCREW,TAPPING,2.9X13 |
92172-0343 |
from US $0.79 |
||
|
92172B
|
92172B
92172-0427 SCREW,TAPPING,5X16 |
92172-0427 |
from US $1.11 |
||
|
92173
|
92173
92173-1337 CLAMP |
92173-1337 |
from US $0.63 |
||
|
92200
|
92200
92200-0284 WASHER,5.5X20X1.2 |
92200-0284 |
from US $0.95 |
||
|
92210
|
92210
92210-0935 NUT,PLATE,5MM |
92210-0935 |
from US $1.11 |
||
