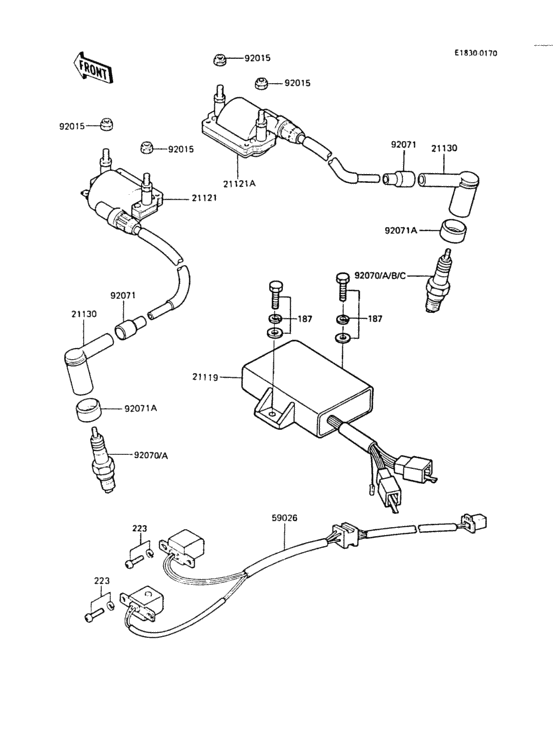

Ignition System Diagram Kawasaki ER250 Z250 Scorpion
- Year
- 1988
- Colour
- Candy Cardinal Red (L1)
- Model code
- ER250-B3
- Sales region
- Europe (General)
- Engine Capacity
- 250
- Model
- Z250 Scorpion
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
187
|
187
187B0618
BOLT-UPSET-WSP
|
187B0618 |
— | ||
| replacement | |||||
|
187
|
187
187AA0618
BOLT-UPSET-WSP
|
187AA0618 |
— | ||
|
223
|
223
223B0514
SCREW-PAN-WS-CROS,5X1
|
223B0514 |
— | ||
| replacement | |||||
|
223
|
223
223AA0514 SCREW-PAN-WS-CROS,5X1 |
223AA0514 |
from US $0.95 |
||
|
21119
|
21119
21119-1227
IGNITER
|
21119-1227 |
— | ||
|
21121
|
21121
21121-1071
COIL-IGNITION,LH
|
21121-1071 |
— | ||
|
21121A
|
21121A
21121-1072
COIL-IGNITION,RH
|
21121-1072 |
— | ||
|
21130
|
21130
21130-1003 CAP,SPARK PLUG"LD05F" |
21130-1003 |
from US $19.17 |
||
|
59026
|
59026
59026-1021 COIL-PULSING |
59026-1021 |
from US $89.76 |
||
|
92015
|
92015
92015-1193
NUT,FLANGED,6MM
|
92015-1193 |
— | ||
| replacement | |||||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92070
|
92070
92070-1065 Plug-spark,dpr8ea-9 |
92070-1065 |
US $7.44 |
||
|
92070A
|
92070A
92070-1068 KA SPARK PLUG DPR9EA-9 |
92070-1068 |
from US $7.44 |
||
| replacement | |||||
|
92070A
|
92070A
DPR9EA9 KA SPARK PLUG DPR9EA-9 |
DPR9EA9 |
US $31.10 |
||
|
92071
|
92071
21132005 GROMMET,SPARK PLG CAP |
21132005 |
US $5.54 |
||
|
92071A
|
92071A
92071-1015 GROMMET,SPARK PLUG |
92071-1015 |
from US $2.85 |
||
