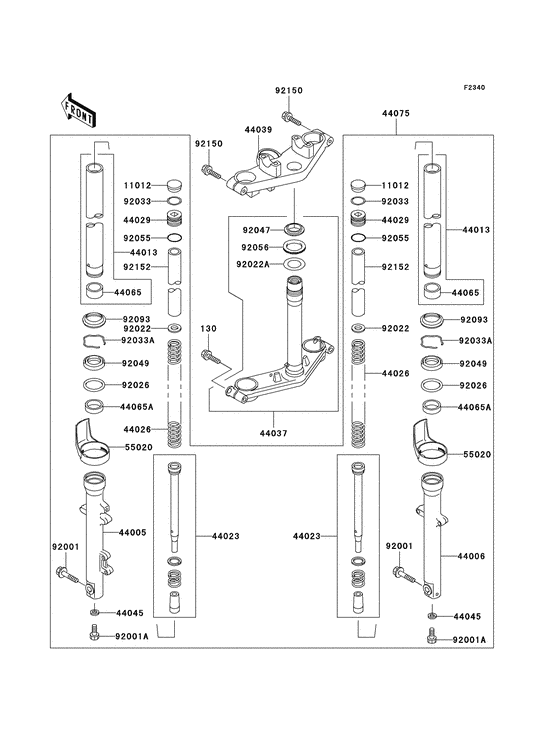

Front fork Diagram Kawasaki ER500 ER-5
- Year
- 2002
- Model code
- ER500-C2
- Sales region
- USA
- Engine Capacity
- 500
- Model
- ER500 ER-5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J1040 BOLT-FLANGED |
130J1040 |
US $3.55 |
||
| replacement | |||||
|
130
|
130
130BB1040 BOLT-FLANGED |
130BB1040 |
from US $1.40 |
||
|
11012
|
11012
11012-1883 CAPCap,fork top; |
11012-1883 |
from US $19.32 |
||
|
44005
|
44005
44005-1412 PIPE-LEFT FORK OUTER |
44005-1412 |
from US $393.78 |
||
|
44006
|
44006
44006-1412 PIPE-RIGHT FORK OUTER |
44006-1412 |
from US $393.78 |
||
|
44013
|
44013
44013-1433
PIPE-FORK INNER
|
44013-1433 |
— | ||
|
44023
|
44023
44023-1159 CYLINDER-SET-FORK |
44023-1159 |
from US $107.31 |
||
|
44026
|
44026
44026-1724 SPRING-FRONT FORK |
44026-1724 |
from US $58.23 |
||
|
44029
|
44029
44029-1127 SEAT-FORK SPRING |
44029-1127 |
from US $30.52 |
||
|
44037
|
44037
44037-1353 Holder-fork under |
44037-1353 |
from US $275.27 |
||
|
44039
|
44039
44039-1268 HOLDER-FORK UPPER |
44039-1268 |
US $229.64 |
||
|
44045
|
44045
44045051 GASKET,FORK CYL BOLTGasket,fork cylinder bolt; |
44045051 |
from US $4.59 |
||
|
44065
|
44065
44065-1110 BUSHING-FRONT FORK,INBushing-front fork,inner pipe; |
44065-1110 |
from US $17.74 |
||
|
44065A
|
44065A
44065-1121 BUSHING-FRONT FORK |
44065-1121 |
from US $14.77 |
||
|
44075
|
44075
44075-1132 DAMPER-SET-FORK |
44075-1132 |
US $1,271.63 |
||
| replacements | |||||
|
44075
|
44075
44070-1850 DAMPER-ASSY,FORK,LH |
44070-1850 |
from US $759.11 |
||
|
44075
|
44075
44070-1851 DAMPER-ASSY,FORK,RH |
44070-1851 |
from US $759.11 |
||
|
55020
|
55020
55020-1691 GUARD,FORKGuard,fork; |
55020-1691 |
from US $6.49 |
||
|
92001
|
92001
92001-1149 BOLT,8X40Bolt,flanged,8x40; |
92001-1149 |
from US $7.07 |
||
|
92001A
|
92001A
92001-1464 BOLT,FORK DRAINBolt,fork cylinder; |
92001-1464 |
from US $3.48 |
||
|
92022
|
92022
92022-1879 WASHER |
92022-1879 |
from US $3.01 |
||
|
92022A
|
92022A
92022-231 WASHER,PLAINWasher,30.5x50x0.6; |
92022-231 |
from US $2.85 |
||
|
92026
|
92026
92026-1443 SPACER,FORKSpacer,fork; |
92026-1443 |
from US $5.54 |
||
|
92033
|
92033
92033-1236 RING-SNAP |
92033-1236 |
from US $4.75 |
||
|
92033A
|
92033A
92033-1286 RING-SNAP |
92033-1286 |
from US $5.23 |
||
|
92047
|
92047
92047-012 CONE,STEERING STEMRace,steering stem bearing; |
92047-012 |
US $12.36 |
||
| replacement | |||||
|
92047
|
92047
92048-0033 Race,steering Stem BeRace,steering stem bearing; |
92048-0033 |
from US $12.36 |
||
|
92049
|
92049
92049-1421 SEAL-OIL,FORK OUTERSeal-oil,fork outer; |
92049-1421 |
from US $14.26 |
||
|
92055
|
92055
92055-1384 RING-O,FORK SPRING SERing-o,fork spring seat; |
92055-1384 |
from US $3.01 |
||
|
92056
|
92056
92056-003 OIL SEAL,STEERING STMSeal-oil,steering stem; |
92056-003 |
from US $5.70 |
||
|
92093
|
92093
92093-1367 SEAL,FORK OUTERSeal,fork outer; |
92093-1367 |
from US $13.94 |
||
|
92150
|
92150
92150-1610 Bolt |
92150-1610 |
from US $5.39 |
||
|
92152
|
92152
92152-1355 COLLARCollar,fork,l=200; |
92152-1355 |
US $6.44 |
||
