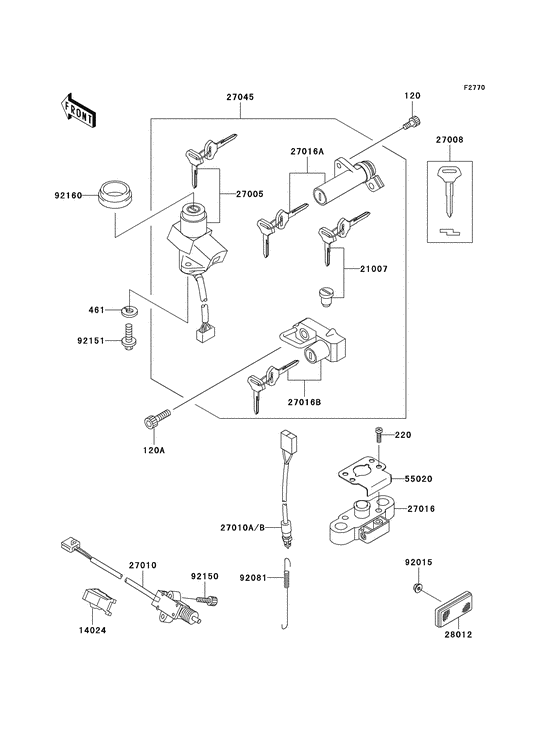

Ignition switch Diagram Kawasaki ER500 ER-5
- Year
- 2002
- Model code
- ER500-C2
- Sales region
- USA
- Engine Capacity
- 500
- Model
- ER500 ER-5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120S0512
BOLT-SOCKET,5X12
|
120S0512 |
— | ||
| replacement | |||||
|
120
|
120
120CB0512 BOLT-SOCKET,5X12 |
120CB0512 |
from US $0.95 |
||
|
120A
|
120A
120S0618 BOLT-SOCKET |
120S0618 |
from US $1.17 |
||
| replacement | |||||
|
120A
|
120A
120CB0618 BOLT-SOCKET |
120CB0618 |
from US $1.11 |
||
|
220
|
220
220C0630
SCREW-PAN-CROSS
Screw-pan-cros,6x30,black; |
220C0630 |
— | ||
| replacement | |||||
|
220
|
220
220AB0630 SCREW-PAN-CROSSScrew-pan-cros,6x30,black; |
220AB0630 |
from US $1.11 |
||
|
461
|
461
461L0600 WASHER-SPRING,6MM |
461L0600 |
US $4.30 |
||
| replacement | |||||
|
461
|
461
461DA0600 WASHER-SPRING,6MM |
461DA0600 |
from US $0.55 |
||
|
14024
|
14024
14024-1532 COVER,SIDE STAND SWITCHCover,side stand switch; |
14024-1532 |
from US $6.02 |
||
|
21007
|
21007
21007-5042
ROTOR,LOCK,TANK CAP
Rotor,lock,tank cap; |
21007-5042 |
— | ||
| replacement | |||||
|
21007
|
21007
21007-5037 ROTOR,LOCK,TANK CAPRotor,lock,tank cap; |
21007-5037 |
from US $67.17 |
||
|
27005
|
27005
27005-5115 SWITCH-ASSY-IGNITION |
27005-5115 |
from US $152.10 |
||
|
27008
|
27008
27008-1189 KEY-LOCK,BLANKKey-lock,blank; (option) |
27008-1189 |
US $15.44 |
||
| replacement | |||||
|
27008
|
27008
27008-0624 KEY-LOCK,BLANKKey-lock,blank; (option) |
27008-0624 |
from US $11.51 |
||
|
27010
|
27010
27010-1258 SWITCH,SIDE STANDSwitch,side stand; |
27010-1258 |
from US $49.41 |
||
|
27010B
|
27010B
27010-1452 SWITCH,BRAKE LAMPSwitch,brake lamp; |
27010-1452 |
from US $19.64 |
||
|
27016
|
27016
27016-1098 LOCK-ASSY,SEAT STRIKELock-assy,seat striker; |
27016-1098 |
from US $66.12 |
||
|
27016A
|
27016A
27016-5248
Lock-assy,seat
Lock-assy,seat; |
27016-5248 |
— | ||
| replacement | |||||
|
27016A
|
27016A
27016-5237 ロツクアツシ，シ-トLock-assy,seat; |
27016-5237 |
US $49.22 |
||
|
27016B
|
27016B
27016-5249
LOCK-ASSY,HELMET
Lock-assy,helmet; |
27016-5249 |
— | ||
| replacement | |||||
|
27016B
|
27016B
27016-5212 LOCK-ASSY,HELMETLock-assy,helmet; |
27016-5212 |
from US $58.49 |
||
|
27045
|
27045
27045-5132 SWITCH-ASSY |
27045-5132 |
from US $371.38 |
||
|
28012
|
28012
28012-1077 Reflector-reflex |
28012-1077 |
from US $19.66 |
||
|
55020
|
55020
55020-1498 GUARD,SEAT STRIKERGuard,seat striker; |
55020-1498 |
from US $12.83 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MMNut,flanged,5mm; |
92015-1259 |
from US $2.53 |
||
|
92081
|
92081
92081-1704 SPRING,BRAKE LAMP SWISpring,brake lamp switch; |
92081-1704 |
from US $5.07 |
||
|
92150
|
92150
92150-1491 BoltBolt,socket,5x22; |
92150-1491 |
from US $2.53 |
||
|
92151
|
92151
92151-1911 BOLT,TORX,6X16Bolt,torx,6x16; |
92151-1911 |
from US $1.11 |
||
| replacement | |||||
|
92151
|
92151
92153-0967 BOLT,TORX,6X16Bolt,torx,6x16; |
92153-0967 |
from US $1.11 |
||
|
92160
|
92160
92160-1712 DAMPERDamper,ignition switch; |
92160-1712 |
from US $4.27 |
||
