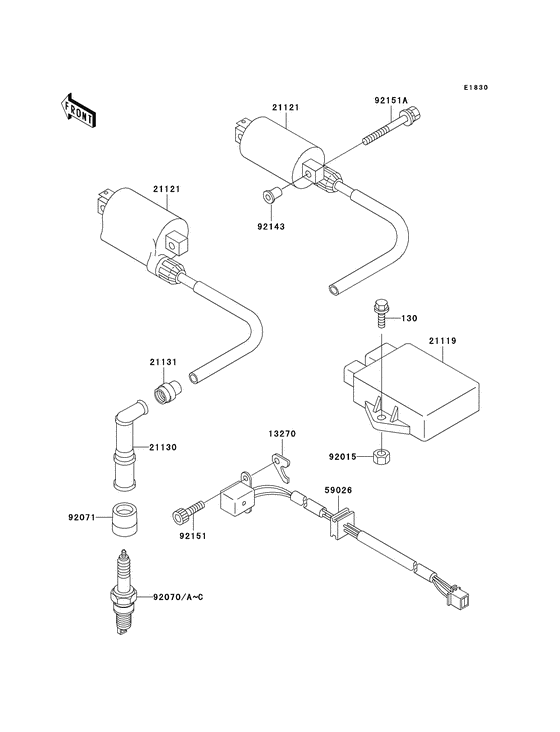

Ignition System Diagram Kawasaki ER500 ER-5
- Year
- 2002
- Model code
- ER500-C2
- Sales region
- USA
- Engine Capacity
- 500
- Model
- ER500 ER-5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0630 BOLT-FLANGED,6X30,BLABolt-flanged,6x30,black; |
130J0630 |
from US $1.74 |
||
| replacement | |||||
|
130
|
130
130BB0630 BOLT-FLANGED,6X30,BLABolt-flanged,6x30,black; |
130BB0630 |
from US $1.27 |
||
|
13270
|
13270
13270-1721 PLATE |
13270-1721 |
from US $5.44 |
||
|
21119
|
21119
21119-1494
IGNITER
|
21119-1494 |
— | ||
|
21121
|
21121
21121-1269
COIL-IGNITION
|
21121-1269 |
— | ||
|
21130
|
21130
21130-1068 Cap-spark plug |
21130-1068 |
from US $28.57 |
||
|
21131
|
21131
21131005 GROMMET,HIGH TENSIONGrommet,high tension; |
21131005 |
US $7.80 |
||
|
59026
|
59026
59026-1141
COIL-PULSING
|
59026-1141 |
— | ||
|
92015
|
92015
92015-1692 NUT,RUBBER,6MM |
92015-1692 |
from US $4.80 |
||
|
92070B
|
92070B
92070-1189 KA SPARK PLUG DR9EAPlug-spark,dr9ea(ngk); |
92070-1189 |
from US $4.16 |
||
|
92070C
|
92070C
92070-1199 SPARK PLUG DR8EAPlug-spark,dr8ea(ngk); (option) |
92070-1199 |
from US $4.50 |
||
|
92071
|
92071
92071-1146 GROMMET,PLUG CAPGrommet,plug cap; |
92071-1146 |
from US $7.44 |
||
|
92143
|
92143
92143-1934 COLLAR |
92143-1934 |
from US $3.57 |
||
|
92151
|
92151
92151-1118
Bolt
Bolt,socket,5x12; |
92151-1118 |
— | ||
| replacement | |||||
|
92151
|
92151
92154-0503 BOLT,SOCKET,5X12Bolt,socket,5x12; |
92154-0503 |
from US $0.63 |
||
|
92151A
|
92151A
92151-1173 BoltBolt,socket,6x45; |
92151-1173 |
from US $3.27 |
||
