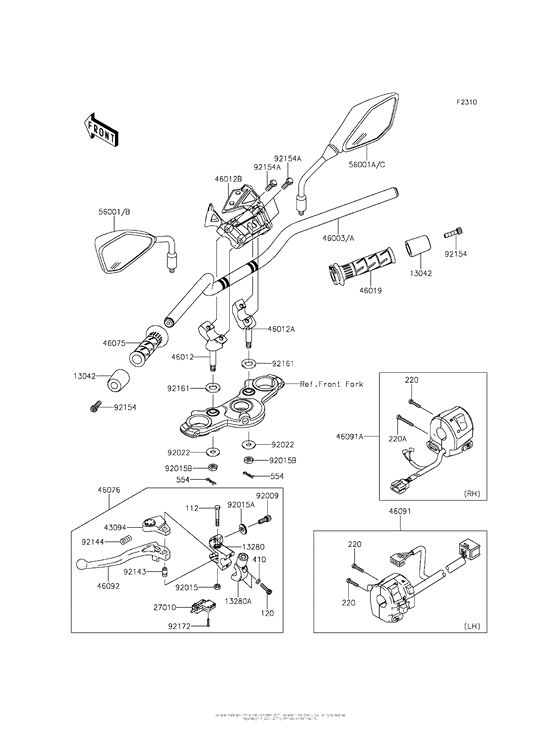

Handlebar Diagram Kawasaki ER650 ER-6N
- Year
- 2016
- Model code
- ER650EGF
- Sales region
- USA
- Engine Capacity
- 650
- Model
- ER-6N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112BB0645 BOLT-UPSET,6X45 |
112BB0645 |
from US $1.74 |
||
|
120
|
120
120CB0625 BOLT-SOCKET |
120CB0625 |
from US $1.27 |
||
|
220
|
220
220AB0525 SCREW-PAN-CROS |
220AB0525 |
from US $0.95 |
||
|
220A
|
220A
220AB0540 SCREW-PAN-CROSS,5X40 |
220AB0540 |
from US $0.95 |
||
|
410
|
410
410AB0600 WASHER-PLAIN-SMALL,6M |
410AB0600 |
from US $0.79 |
||
|
554
|
554
554DB0800 PIN-SNAP |
554DB0800 |
from US $0.63 |
||
|
13042
|
13042
13042-5002 WEIGHT,HANDLE |
13042-5002 |
from US $31.72 |
||
|
13280
|
13280
13280-0306 HOLDER,CLUTCH LEVER |
13280-0306 |
from US $33.36 |
||
|
13280A
|
13280A
13280-0307 HOLDER,CLUTCH LEVER |
13280-0307 |
from US $22.44 |
||
|
27010
|
27010
27010-1094 SWITCH,CLUTCH |
27010-1094 |
from US $21.07 |
||
|
43094
|
43094
43094-0556 ADJUSTER |
43094-0556 |
from US $24.38 |
||
|
46003
|
46003
46003-0588-10 HANDLE,BLACK |
46003-0588-10 |
from US $76.15 |
||
|
46012
|
46012
46012-0303-18R HOLDER-HANDLE,LWR,LH, |
46012-0303-18R |
from US $22.44 |
||
|
46012A
|
46012A
46012-0304-18R HOLDER-HANDLE,LWR,RH, |
46012-0304-18R |
from US $22.44 |
||
|
46012B
|
46012B
46012-0318-18R HOLDER-HANDLE,UPP,F.S. BLACK |
46012-0318-18R |
US $130.93 |
||
|
46019
|
46019
46019-0060 GRIP-ASSY,THROTTLE |
46019-0060 |
from US $19.96 |
||
|
46075
|
46075
46075-0564 GRIP,HANDLE,LH |
46075-0564 |
from US $11.72 |
||
|
46076
|
46076
46076-0137 LEVER-ASSY-GRIP,CLUTCH |
46076-0137 |
from US $116.24 |
||
|
46091
|
46091
46091-0214
HOUSING-ASSY-CONTROL, LH
|
46091-0214 |
— | ||
| replacement | |||||
|
46091
|
46091
46091-0406 Housing-Assy-Control, Lh |
46091-0406 |
from US $147.14 |
||
|
46091A
|
46091A
46091-0246 HOUSING-ASSY-CONTROL, RH |
46091-0246 |
US $129.55 |
||
| replacement | |||||
|
46091A
|
46091A
46091-0480 Housing-Assy-Control, Rh |
46091-0480 |
from US $137.17 |
||
|
46092
|
46092
46092-0031 LEVER-GRIP,CLUTCH |
46092-0031 |
from US $24.83 |
||
|
56001B
|
56001B
56001-0272 MIRROR-ASSY,LHLH |
56001-0272 |
from US $74.83 |
||
|
56001C
|
56001C
56001-0273 MIRROR-ASSY,RHRH |
56001-0273 |
from US $74.83 |
||
|
92009
|
92009
92009-1134 SCREW,CABLE ADJUST,8 |
92009-1134 |
from US $9.19 |
||
|
92015
|
92015
92210-0006 NUT,LOCK,6MM |
92210-0006 |
from US $1.27 |
||
|
92015A
|
92015A
92015-1197 NUT,CABLE ADJUST LOCK |
92015-1197 |
from US $6.34 |
||
|
92015B
|
92015B
92210-1184 NUT |
92210-1184 |
from US $4.09 |
||
|
92022
|
92022
92022-1088 WASHER,10.2X28X2 |
92022-1088 |
from US $2.85 |
||
|
92143
|
92143
92143-1379 COLLAR |
92143-1379 |
from US $6.34 |
||
|
92144
|
92144
92144-1467 SPRING |
92144-1467 |
from US $3.96 |
||
|
92154
|
92154
92154-0440 BOLT,SOCKET,8X30 |
92154-0440 |
from US $1.74 |
||
|
92154A
|
92154A
92154-1246 BOLT,FLANGED,8X30フランジ，8X30 |
92154-1246 |
from US $1.11 |
||
|
92161
|
92161
92161-0037 DAMPER |
92161-0037 |
from US $1.11 |
||
|
92172
|
92172
92172-0183 SCREW,3X16 |
92172-0183 |
from US $0.95 |
||
