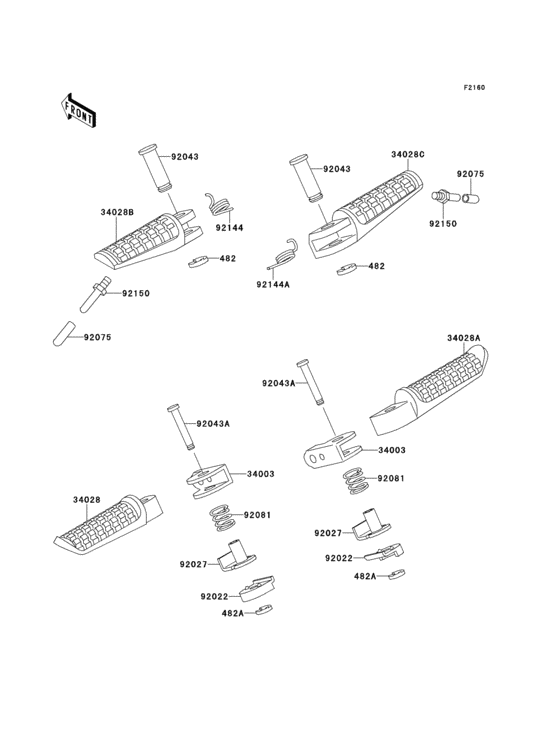

Footrests Diagram Kawasaki EX250 Ninja 250
- Year
- 1993
- Colour
- Ebony (H8)
- Model code
- EX250-F7
- Sales region
- Europe (General)
- Engine Capacity
- 250
- Model
- EX250 Ninja 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
482
|
482
482L0100 RING, SNAP |
482L0100 |
from US $1.11 |
||
| replacement | |||||
|
482
|
482
482EA0100 CIRCLIP-TYPE-E,10MM |
482EA0100 |
from US $0.72 |
||
|
482A
|
482A
482L5000
CIRCLIP-TYPE-E
|
482L5000 |
— | ||
| replacement | |||||
|
482A
|
482A
482EA5000 CIRCLIP-TYPE-E |
482EA5000 |
from US $0.91 |
||
|
34003
|
34003
34003-1297 HOLDER-STEP,RR |
34003-1297 |
from US $20.43 |
||
|
34028
|
34028
34028-1191 STEP,RR,LH |
34028-1191 |
US $60.70 |
||
| replacement | |||||
|
34028
|
34028
34028-1488 STEP,RR,LH |
34028-1488 |
from US $55.35 |
||
|
34028A
|
34028A
34028-1192 STEP,RR,RH |
34028-1192 |
US $60.70 |
||
| replacement | |||||
|
34028A
|
34028A
34028-1489 STEP,RR,RH |
34028-1489 |
from US $55.35 |
||
|
34028B
|
34028B
34028-1334 STEP,FR,LH |
34028-1334 |
from US $54.74 |
||
|
34028C
|
34028C
34028-1335 STEP,FR,RH |
34028-1335 |
from US $56.32 |
||
|
92022
|
92022
92022-1661 WASHER,STOPPER |
92022-1661 |
from US $4.44 |
||
|
92027
|
92027
92027-1732 COLLAR,STEP |
92027-1732 |
from US $7.76 |
||
|
92043
|
92043
92043-1145 PIN,12X42.5 |
92043-1145 |
from US $6.34 |
||
|
92043A
|
92043A
92043-1294 PIN |
92043-1294 |
from US $6.34 |
||
|
92075
|
92075
92075-1980 DAMPER |
92075-1980 |
from US $3.64 |
||
|
92081
|
92081
92081-1612 SPRING,STEP,RR |
92081-1612 |
from US $2.85 |
||
|
92144
|
92144
92144-1567 SPRING,STEP RETURN |
92144-1567 |
from US $3.96 |
||
|
92144A
|
92144A
92144-1568 SPRING,STEP RETURN |
92144-1568 |
from US $3.96 |
||
|
92150
|
92150
92150-1002 BOLT,BANK SENSOR |
92150-1002 |
from US $5.70 |
||
