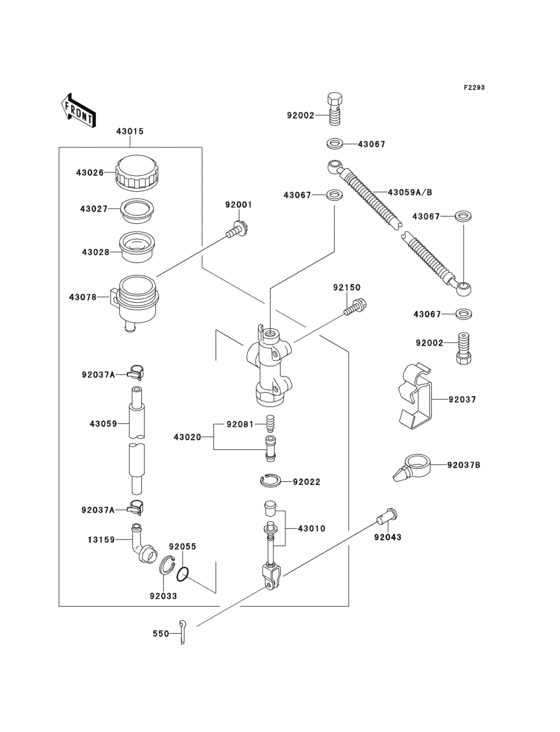

Rear master cylinder Diagram Kawasaki EX250 Ninja 250
- Year
- 1993
- Colour
- Ebony (H8)
- Model code
- EX250-F7
- Sales region
- Europe (General)
- Engine Capacity
- 250
- Model
- EX250 Ninja 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
550
|
550
550D2015
PIN-COTTER,2.0X15
|
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15 |
550AA2015 |
from US $0.63 |
||
|
13159
|
13159
13159-1052 CONNECTOR,RR MASTER C |
13159-1052 |
from US $9.98 |
||
|
43010
|
43010
43010-1055 ROD-ASSY-BRAKE |
43010-1055 |
from US $46.68 |
||
|
43015
|
43015
43015-1495 CYLINDER-ASSY-MASTER, |
43015-1495 |
from US $223.95 |
||
|
43020
|
43020
43020-1057 PISTON-COMP-BRAKE |
43020-1057 |
US $76.53 |
||
|
43026
|
43026
43026-1051 CAP-BRAKE |
43026-1051 |
from US $23.19 |
||
|
43027
|
43027
43027-1051 PLATE-DIAPHRAGM |
43027-1051 |
from US $4.59 |
||
|
43028
|
43028
43028-1057 DIAPHRAGM |
43028-1057 |
from US $13.94 |
||
|
43059
|
43059
43059-1369 HOSE-BRAKE,RR MASTER |
43059-1369 |
from US $26.03 |
||
|
43059A
|
43059A
43059-1637 HOSE-BRAKE,RR |
43059-1637 |
US $80.19 |
||
| replacement | |||||
|
43059A
|
43059A
43059-1883 HOSE-BRAKE,RR |
43059-1883 |
from US $66.56 |
||
|
43067
|
43067
43067-001
WASHER-SEAL,10.1X14.5
|
43067-001 |
— | ||
| replacement | |||||
|
43067
|
43067
49091-0001 WASHER-SEAL,10.1X14.5 |
49091-0001 |
US $2.81 |
||
|
43078
|
43078
43078-1058 RESERVOIR,RR MASTER C |
43078-1058 |
US $28.08 |
||
| replacement | |||||
|
43078
|
43078
43078-1165 RESERVOIR,RR MASTER C |
43078-1165 |
from US $19.01 |
||
|
92001
|
92001
92001-1860 BOLT,6X16 |
92001-1860 |
from US $2.69 |
||
|
92002
|
92002
92002-1888
BOLT,OIL,L=23
|
92002-1888 |
— | ||
| replacement | |||||
|
92002
|
92002
92153-0627 BOLT,OIL,L=23 |
92153-0627 |
from US $2.85 |
||
|
92022
|
92022
92022-1601 RING-SNAP,20.9X24.6X1 |
92022-1601 |
US $4.44 |
||
| replacement | |||||
|
92022
|
92022
92033-0079 RING-SNAP,20.9X24.6X1 |
92033-0079 |
from US $3.80 |
||
|
92033
|
92033
92033-1186 RING-SNAP,20.5MM |
92033-1186 |
from US $3.01 |
||
|
92037
|
92037
92037-1498 CLAMP,RR BRAKE HOSE |
92037-1498 |
from US $5.07 |
||
|
92037A
|
92037A
92037-1547 CLAMP |
92037-1547 |
from US $8.08 |
||
|
92037B
|
92037B
92037-1827 Clamp,Hose |
92037-1827 |
from US $6.21 |
||
|
92043
|
92043
92043-1013 PIN |
92043-1013 |
from US $6.65 |
||
|
92055
|
92055
92055-1251 RING-O,14.8X2.4 |
92055-1251 |
from US $3.96 |
||
| replacement | |||||
|
92055
|
92055
92055-0741 RING-O,14.8X2.4 |
92055-0741 |
from US $1.90 |
||
|
92081
|
92081
92081-1737 SPRING |
92081-1737 |
from US $8.08 |
||
|
92150
|
92150
92150-1843 BOLT,SOCKET,8X30 |
92150-1843 |
from US $3.80 |
||
| replacement | |||||
|
92150
|
92150
92153-1624 BOLT,SOCKET,8X30 |
92153-1624 |
from US $1.90 |
||
