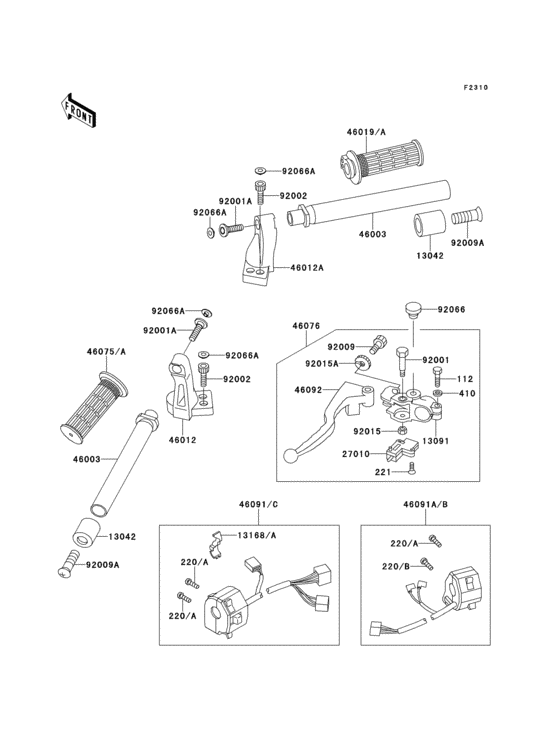

Handlebar Diagram Kawasaki EX250 GPX250R
- Year
- 1995
- Colour
- Ebony (H8)
- Model code
- EX250-F9
- Sales region
- Europe (General)
- Engine Capacity
- 250
- Model
- EX250 GPX250R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112C0622 BOLT-UPSET |
112C0622 |
US $36 |
||
| replacement | |||||
|
112
|
112
112BB0622 BOLT-UPSET |
112BB0622 |
from US $0.95 |
||
|
220A
|
220A
220C0525
SCREW-PAN-CROS
|
220C0525 |
— | ||
| replacement | |||||
|
220A
|
220A
220AB0525 SCREW-PAN-CROS |
220AB0525 |
from US $0.95 |
||
|
220B
|
220B
220C0540 SCREW-PAN-CROSS,5X40 |
220C0540 |
from US $1.11 |
||
| replacement | |||||
|
220B
|
220B
220AB0540 SCREW-PAN-CROSS,5X40 |
220AB0540 |
from US $0.95 |
||
|
221
|
221
221C0316 SCREW-CSK-CROS |
221C0316 |
from US $1.11 |
||
| replacement | |||||
|
221
|
221
221AB0316 SCREW-CSK-CROS |
221AB0316 |
from US $0.79 |
||
|
410
|
410
410F0600 WASHER-PLAIN-SMALL,6M |
410F0600 |
from US $0.45 |
||
| replacement | |||||
|
410
|
410
410AB0600 WASHER-PLAIN-SMALL,6M |
410AB0600 |
from US $0.79 |
||
|
13042
|
13042
13042-1069 WEIGHT,HANDLE |
13042-1069 |
from US $23.34 |
||
|
13091
|
13091
13091-1272 HOLDER,CLUTCH LEVER |
13091-1272 |
from US $32.01 |
||
|
13168A
|
13168A
13168-1516 LEVER,CHOKE |
13168-1516 |
from US $6.81 |
||
|
27010
|
27010
27010-1094 SWITCH,CLUTCH |
27010-1094 |
from US $21.07 |
||
|
46003
|
46003
46003-1280 HANDLE |
46003-1280 |
from US $71.51 |
||
|
46012
|
46012
46012-1183 HOLDER-HANDLE,LH |
46012-1183 |
from US $121.92 |
||
|
46012A
|
46012A
46012-1184 HOLDER-HANDLE,RH |
46012-1184 |
from US $121.92 |
||
|
46019A
|
46019A
46019-1077 GRIP-ASSY,THROTTLE |
46019-1077 |
from US $28.12 |
||
|
46075A
|
46075A
46075-1088 GRIP,LH |
46075-1088 |
from US $15.21 |
||
|
46076
|
46076
46076-1105 LEVER-ASSY-GRIP,CLUTC |
46076-1105 |
from US $43.43 |
||
|
46091B
|
46091B
46091-1589
Housing-assy-control,
|
46091-1589 |
— | ||
| replacement | |||||
|
46091B
|
46091B
46091-1662 HOUSING-ASSY-CONTROL, |
46091-1662 |
US $128.39 |
||
|
46091C
|
46091C
46091-1594
Housing-assy-control,
|
46091-1594 |
— | ||
| replacement | |||||
|
46091C
|
46091C
46091-1666
HOUSING-ASSY-CONTROL,LH
|
46091-1666 |
— | ||
|
46092
|
46092
46092-1103 LEVER-GRIP,CLUTCH |
46092-1103 |
from US $21.24 |
||
|
92001
|
92001
92001-1548 BOLT,CLUTCH LEVER,BLA |
92001-1548 |
from US $5.54 |
||
|
92001A
|
92001A
92001-1995 Bolt |
92001-1995 |
US $3.13 |
||
| replacement | |||||
|
92001A
|
92001A
92154-1865 BOLT,SOCKET,8X30 |
92154-1865 |
from US $2.85 |
||
|
92002
|
92002
92002-1178 BOLT,SOCKET,8X20 |
92002-1178 |
from US $3.01 |
||
|
92009
|
92009
92009-1134 SCREW,CABLE ADJUST,8 |
92009-1134 |
from US $9.19 |
||
|
92009A
|
92009A
92009-1257 SCREW,HUNDLE WEIGHT |
92009-1257 |
from US $3.54 |
||
|
92015
|
92015
92015-1191
NUT,LOCK,6MM
|
92015-1191 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0006 NUT,LOCK,6MM |
92210-0006 |
from US $1.27 |
||
|
92015A
|
92015A
92015-1197 NUT,CABLE ADJUST LOCK |
92015-1197 |
from US $6.34 |
||
|
92066
|
92066
92066-1077 PLUG,9.5X8 |
92066-1077 |
from US $3.01 |
||
|
92066A
|
92066A
92066-1216 PLUG,HANDLE HOLDER |
92066-1216 |
from US $3.01 |
||
