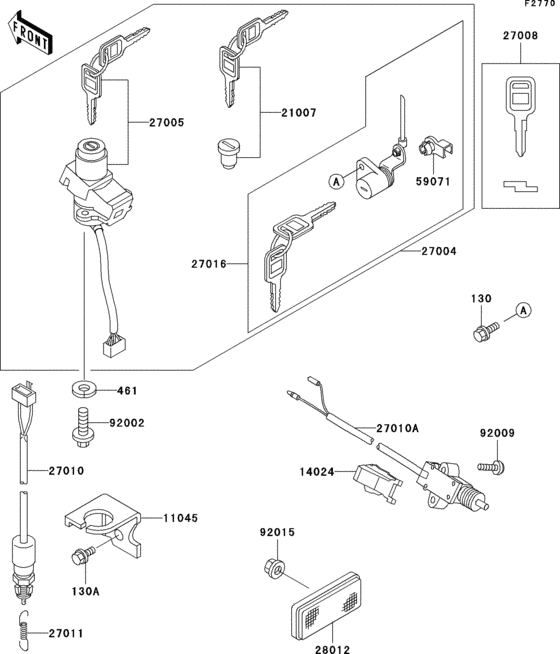

Ignition switch Diagram Kawasaki EX250 ZZR250
- Year
- 1999
- Model code
- EX250-H10
- Sales region
- Netherlands
- Engine Capacity
- 250
- Model
- EX250 ZZR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130AA0510 BOLT-FLANGED |
130AA0510 |
from US $0.95 |
||
|
130A
|
130A
130BA0610 BOLT-FLANGED,6X10 |
130BA0610 |
from US $0.79 |
||
|
461
|
461
461DA0600 WASHER-SPRING,6MM |
461DA0600 |
from US $0.55 |
||
|
11045
|
11045
11045-1641 BRACKET,REAR BRAKE SW |
11045-1641 |
from US $5.86 |
||
|
14024
|
14024
14024-1532 COVER,SIDE STAND SWITCH |
14024-1532 |
from US $6.02 |
||
|
21007
|
21007
21007-5037 ROTOR,LOCK,TANK CAP |
21007-5037 |
from US $67.17 |
||
|
27004
|
27004
27004-5484 Switch-assy |
27004-5484 |
US $339.65 |
||
|
27005
|
27005
27005-5102 SWITCH-ASSY-IGNITION |
27005-5102 |
US $203.28 |
||
|
27008
|
27008
27008-1173
KEY-LOCK,BLANK
|
27008-1173 |
— | ||
| replacement | |||||
|
27008
|
27008
27008-0621 KEY-LOCK,BLANK |
27008-0621 |
from US $20.78 |
||
|
27010
|
27010
27010-1479 SWITCH,REAR BRAKE |
27010-1479 |
from US $19.01 |
||
|
27010A
|
27010A
27010-1223 SWITCH,SIDE STAND |
27010-1223 |
from US $50.27 |
||
|
27011
|
27011
92145-0683 SPRING,BRAKE LAMP SWI |
92145-0683 |
from US $1.90 |
||
|
27016
|
27016
27016-5218 Lock-assy,seat |
27016-5218 |
US $58.49 |
||
|
28012
|
28012
28012-1077 Reflector-reflex |
28012-1077 |
from US $19.66 |
||
|
59071
|
59071
59071-1103 JOINT |
59071-1103 |
from US $6.81 |
||
|
92002
|
92002
92153-0967 BOLT,TORX,6X16 |
92153-0967 |
from US $1.11 |
||
|
92009
|
92009
92009-1459 SCREW |
92009-1459 |
from US $3.90 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MM |
92015-1259 |
from US $2.53 |
||
