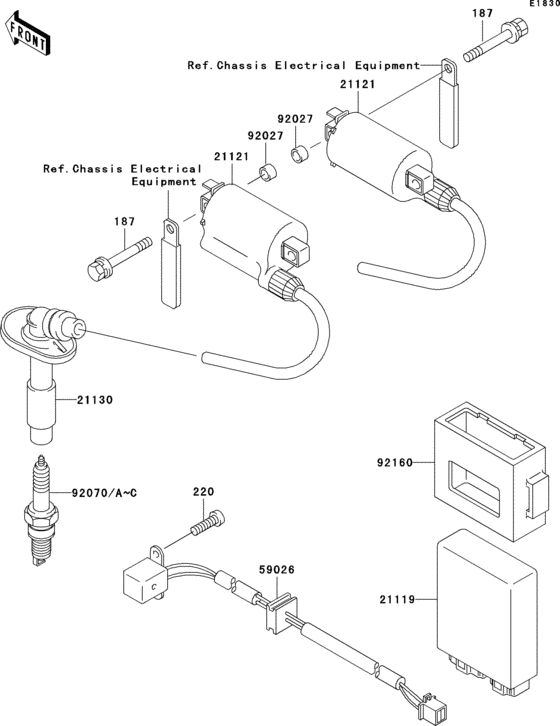

Ignition System Diagram Kawasaki EX250 ZZR250
- Year
- 1999
- Model code
- EX250-H10
- Sales region
- Netherlands
- Engine Capacity
- 250
- Model
- EX250 ZZR250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
187
|
187
187BA0625 BOLT-UPSET-WSP |
187BA0625 |
from US $1.24 |
||
|
220
|
220
220AA0510 SCREW-PAN-CROSS,5X10 |
220AA0510 |
from US $0.48 |
||
|
21119
|
21119
21119-0010 IGNITER |
21119-0010 |
from US $548.99 |
||
|
21121
|
21121
21121-1163 COIL-IGNITION |
21121-1163 |
from US $145.11 |
||
|
21130
|
21130
21130-1056 Cap-spark plug |
21130-1056 |
from US $35.90 |
||
|
59026
|
59026
59026-1086 COIL-PULSING |
59026-1086 |
from US $81.08 |
||
|
92027
|
92027
92027-103 COLLAR |
92027-103 |
from US $2.38 |
||
|
92070
|
92070
16126-1211
Valve,vacuum
|
16126-1211 |
— | ||
|
92070A
|
92070A
11038-1127 CASE-ASSY-AIR FILTER |
11038-1127 |
from US $219.25 |
||
|
92160
|
92160
92160-1137 DAMPER |
92160-1137 |
from US $22.86 |
