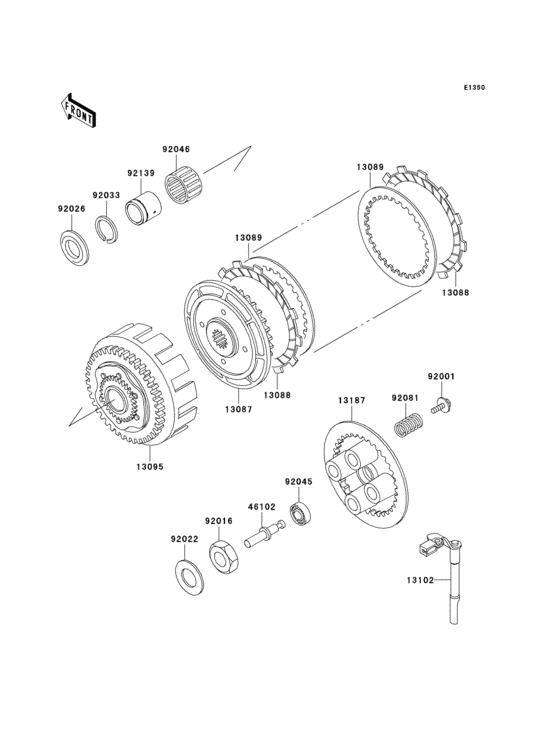

Clutch Diagram Kawasaki EX250 Ninja 250
- Year
- 2007
- Colour
- Kmt.candy Persimmon Red (G2)
- Model code
- EX250F7F
- Sales region
- Europe (General)
- Engine Capacity
- 250
- Model
- EX250 Ninja 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13087
|
13087
13087-1076 Hub-clutch |
13087-1076 |
from US $87.22 |
||
|
13088
|
13088
13088-1013 PLATE-FRICTION |
13088-1013 |
from US $15.96 |
||
|
13089
|
13089
13089026 PLATE,CLUTCH STEEL |
13089026 |
from US $12.36 |
||
|
13095
|
13095
13095-1145 HOUSING-COMP-CLUTCH |
13095-1145 |
US $393.49 |
||
|
13102
|
13102
13102-1079 RELEASE-COMP-CLUTCH |
13102-1079 |
from US $44.88 |
||
| replacement | |||||
|
13102
|
13102
13102-0036 RELEASE-COMP-CLUTCH |
13102-0036 |
from US $42.79 |
||
|
13187
|
13187
13187-1057 PLATE-CLUTCH OPERATIN |
13187-1057 |
from US $61.19 |
||
|
46102
|
46102
46102-1030 ROD |
46102-1030 |
from US $21.07 |
||
|
92001
|
92001
92001-1066 BOLT,CLUTCH SPR FITT |
92001-1066 |
from US $4.25 |
||
|
92016
|
92016
92016-028 NUT 20MM |
92016-028 |
from US $6.34 |
||
| replacement | |||||
|
92016
|
92016
92016-043
NUT,20MM
|
92016-043 |
— | ||
|
92022
|
92022
92022-1116 WASHER,PLAIN,2.3X20.3 |
92022-1116 |
from US $5.39 |
||
|
92026
|
92026
92026-116 SPACER,THRUST,T=5.5MM |
92026-116 |
from US $11.09 |
||
|
92033
|
92033
92033-1212 RING-SNAP |
92033-1212 |
from US $5.70 |
||
|
92045
|
92045
92045-1408 BEARING-BALL |
92045-1408 |
from US $12.85 |
||
|
92046
|
92046
92046-028 BEARING,KTV323723 |
92046-028 |
from US $19.17 |
||
|
92081
|
92081
92081-139 SPRING,CLUTCH |
92081-139 |
from US $5.54 |
||
|
92139
|
92139
92139-0091 BUSHING,25X32X32.1 |
92139-0091 |
from US $24.98 |
||
