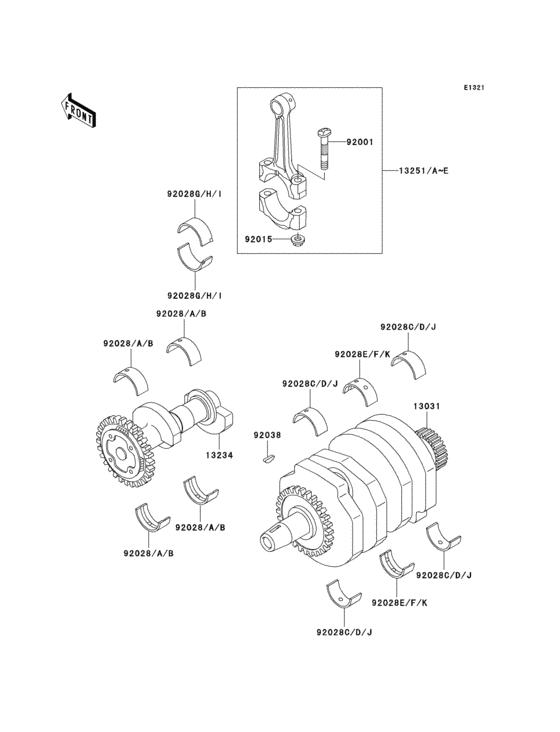

Crankshaft Diagram Kawasaki EX250 Ninja 250
- Year
- 2007
- Colour
- Kmt.candy Persimmon Red (G2)
- Model code
- EX250F7F
- Sales region
- Europe (General)
- Engine Capacity
- 250
- Model
- EX250 Ninja 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13031
|
13031
13031-0013
Crankshaft-comp
|
13031-0013 |
— | ||
| replacement | |||||
|
13031
|
13031
13031-0129 Crankshaft-comp |
13031-0129 |
from US $769.82 |
||
|
13234
|
13234
13234-1098 SHAFT-COMP,BALANCER |
13234-1098 |
from US $445.76 |
||
|
13251
|
13251
13251-1083-FF
ROD-ASSY-CONNECTING
|
13251-1083-FF |
— | ||
| replacements | |||||
|
13251
|
13251
13251-1103-HH ROD-ASSY-CONNECTING |
13251-1103-HH |
from US $190.21 |
||
|
13251
|
13251
13251-1103-II
ROD-ASSY-CONNECTING
|
13251-1103-II |
— | ||
|
13251A
|
13251A
13251-1083-GG
ROD-ASSY-CONNECTING
|
13251-1083-GG |
— | ||
| replacements | |||||
|
13251A
|
13251A
13251-1103-HH ROD-ASSY-CONNECTING |
13251-1103-HH |
from US $190.21 |
||
|
13251A
|
13251A
13251-1103-II
ROD-ASSY-CONNECTING
|
13251-1103-II |
— | ||
|
13251B
|
13251B
13251-1083-HH
ROD-ASSY-CONNECTING
|
13251-1083-HH |
— | ||
| replacements | |||||
|
13251B
|
13251B
13251-1103-HH ROD-ASSY-CONNECTING |
13251-1103-HH |
from US $190.21 |
||
|
13251B
|
13251B
13251-1103-II
ROD-ASSY-CONNECTING
|
13251-1103-II |
— | ||
|
13251C
|
13251C
13251-1083-II
ROD-ASSY-CONNECTING
|
13251-1083-II |
— | ||
| replacements | |||||
|
13251C
|
13251C
13251-1103-HH ROD-ASSY-CONNECTING |
13251-1103-HH |
from US $190.21 |
||
|
13251C
|
13251C
13251-1103-II
ROD-ASSY-CONNECTING
|
13251-1103-II |
— | ||
|
13251D
|
13251D
13251-1083-JJ
Rod-assy-connecting,j
|
13251-1083-JJ |
— | ||
| replacements | |||||
|
13251D
|
13251D
13251-1103-HH ROD-ASSY-CONNECTING |
13251-1103-HH |
from US $190.21 |
||
|
13251D
|
13251D
13251-1103-II
ROD-ASSY-CONNECTING
|
13251-1103-II |
— | ||
|
13251E
|
13251E
13251-1083-KK
ROD-ASSY-CONNECTING
|
13251-1083-KK |
— | ||
| replacements | |||||
|
13251E
|
13251E
13251-1103-HH ROD-ASSY-CONNECTING |
13251-1103-HH |
from US $190.21 |
||
|
13251E
|
13251E
13251-1103-II
ROD-ASSY-CONNECTING
|
13251-1103-II |
— | ||
|
92001
|
92001
92001-1793 BOLT,CONNECTING ROD |
92001-1793 |
from US $5.39 |
||
|
92015
|
92015
92015-1527 NUT,CONNECTING ROD,8M |
92015-1527 |
from US $3.17 |
||
|
92028
|
92028
92028-1422 BUSHING,BALANCER,BLUE |
92028-1422 |
from US $11.88 |
||
|
92028A
|
92028A
92028-1423 BUSHING,BALANCER,BLACK |
92028-1423 |
from US $11.88 |
||
|
92028B
|
92028B
92028-1424 BUSHING,BALANCER,BROWN |
92028-1424 |
from US $11.88 |
||
|
92028C
|
92028C
92028-1486 BUSHING,CRANKSHAFT,#1&3,BLUE |
92028-1486 |
from US $13.62 |
||
|
92028D
|
92028D
92028-1487 BUSHING,CRANKSHAFT, #1&3, BLACK |
92028-1487 |
from US $13.62 |
||
|
92028E
|
92028E
92028-1489 BUSHING,CRANKSHAFT,#2,BLUE |
92028-1489 |
from US $13.62 |
||
|
92028F
|
92028F
92028-1490 BUSHING,CRANKSHAFT,#2, BLACK |
92028-1490 |
from US $13.62 |
||
|
92028G
|
92028G
92028-1492 BUSHING,CONNECTING ROD,BLUE |
92028-1492 |
from US $13.62 |
||
|
92028H
|
92028H
92028-1493 BUSHING,CONNECTING ROD,BLACK |
92028-1493 |
from US $13.62 |
||
|
92028I
|
92028I
92028-1494 BUSHING,CONNECTING ROD,BROWN |
92028-1494 |
from US $16.47 |
||
|
92028J
|
92028J
92028-1582 BUSHING,CRANKSHAFT,#1&3,YELLOW |
92028-1582 |
from US $13.62 |
||
|
92028K
|
92028K
92028-1586 BUSHING,CRANKSHAFT,#2,YELLOW |
92028-1586 |
from US $13.62 |
||
|
92038
|
92038
92038-001 WOODRUFF KEY |
92038-001 |
from US $3.73 |
||
