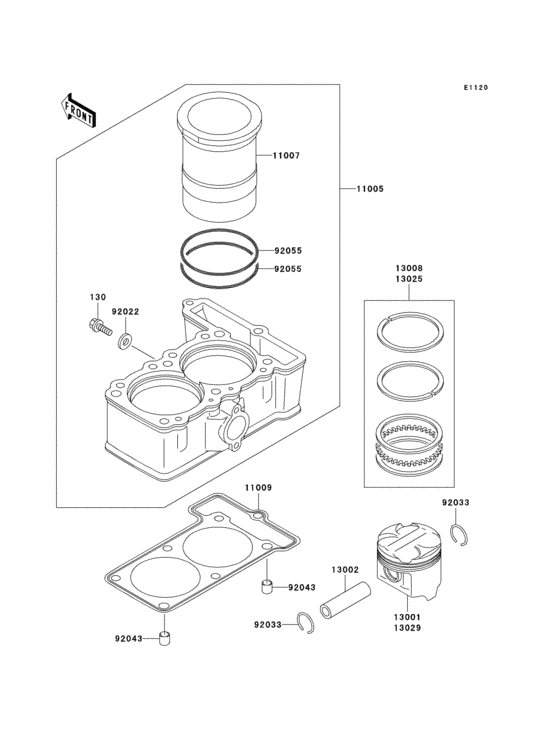

Cylinder/piston(s) Diagram Kawasaki EX250 Ninja 250
- Year
- 2007
- Colour
- Kmt.candy Persimmon Red (G2)
- Model code
- EX250F7F
- Sales region
- Europe (General)
- Engine Capacity
- 250
- Model
- EX250 Ninja 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130C0610
BOLT-FLANGED
|
130C0610 |
— | ||
| replacements | |||||
|
130
|
130
130BB0610 BOLT-FLANGED,6X10 |
130BB0610 |
from US $1.11 |
||
|
130
|
130
130AB0610 BOLT-FLANGED |
130AB0610 |
from US $1.11 |
||
|
11005
|
11005
11005-1623 CYLINDER-ENGINE |
11005-1623 |
from US $833.09 |
||
|
11007
|
11007
11007-1111 LINER-CYLINDER |
11007-1111 |
from US $112.80 |
||
|
11009
|
11009
11009-1572 GASKET,CYLINDER BASE |
11009-1572 |
from US $34.86 |
||
|
13001
|
13001
13001-1325 PISTON-ENGINE,STD |
13001-1325 |
from US $86.39 |
||
|
13002
|
13002
13002-1097 PIN-PISTON |
13002-1097 |
from US $16.79 |
||
|
13008
|
13008
13008-0025 RING-SET-PISTON,STD |
13008-0025 |
from US $77.52 |
||
|
13025
|
13025
13025-0010
RING-SET-PISTON L,O/S 0.50
|
13025-0010 |
— | ||
|
13029
|
13029
13029-1201
PISTON-ENGINE L,O/S 0.50
|
13029-1201 |
— | ||
|
92022
|
92022
92022-304 WASHER,PLAIN |
92022-304 |
from US $2.53 |
||
|
92033
|
92033
92033-1161 RING-SNAP,PISTON PIN |
92033-1161 |
from US $2.53 |
||
|
92043
|
92043
92043-1264 PIN,DOWEL,8.2X10X14 |
92043-1264 |
from US $0.85 |
||
|
92055
|
92055
92055-1338 RING-O, 68.2X2.4 |
92055-1338 |
from US $4.31 |
||
