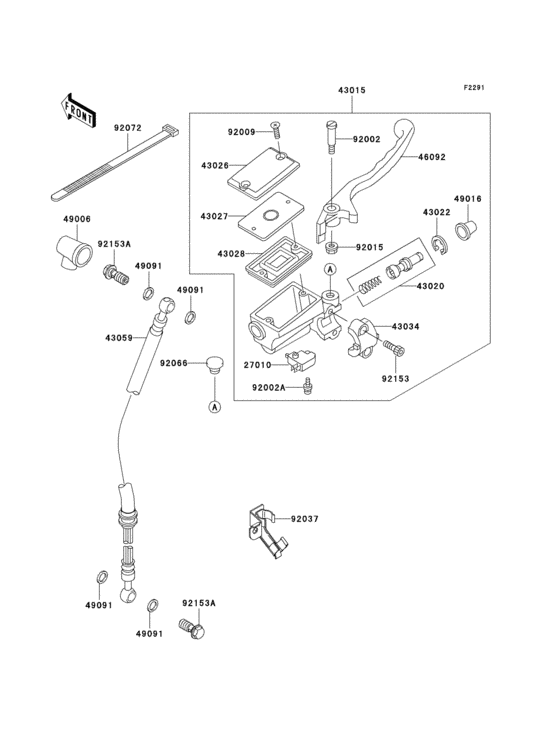

Front master cylinder Diagram Kawasaki EX250 Ninja 250
- Year
- 2007
- Colour
- Kmt.candy Persimmon Red (G2)
- Model code
- EX250F7F
- Sales region
- Europe (General)
- Engine Capacity
- 250
- Model
- EX250 Ninja 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27010
|
27010
27010-0025 SWITCH,BRAKE |
27010-0025 |
from US $23.19 |
||
|
43015
|
43015
43015-0037 CYLINDER-ASSY-MASTER, |
43015-0037 |
from US $268.73 |
||
|
43020
|
43020
43020-1098 PISTON-COMP-BRAKE |
43020-1098 |
from US $34.41 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPER |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1076 CAP-BRAKE |
43026-1076 |
from US $28.57 |
||
|
43027
|
43027
43027-1055 PLATE-DIAPHRAGM |
43027-1055 |
from US $7.08 |
||
|
43028
|
43028
43028-1058 DIAPHRAGM,MASTER CYLI |
43028-1058 |
from US $16.16 |
||
|
43034
|
43034
43034-1053 HOLDER-BRAKE,MASTER C |
43034-1053 |
from US $24.24 |
||
|
43059
|
43059
43059-1882 HOSE-BRAKE,FR |
43059-1882 |
from US $80.71 |
||
|
46092
|
46092
46092-1117 LEVER-GRIP,FRONT BRAKE |
46092-1117 |
from US $21.24 |
||
|
49006
|
49006
49006-1040 BOOT,DUST |
49006-1040 |
from US $7.29 |
||
| replacement | |||||
|
49006
|
49006
49006-1041 BOOT,DUST |
49006-1041 |
from US $9.35 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDER |
49016-1044 |
from US $10.61 |
||
|
49091
|
49091
49091-0001 WASHER-SEAL,10.1X14.5 |
49091-0001 |
US $2.81 |
||
|
92002
|
92002
92002-1322 BOLT,LEVER SET |
92002-1322 |
from US $7.13 |
||
|
92002A
|
92002A
92002-1323 Bolt |
92002-1323 |
from US $2.53 |
||
|
92009
|
92009
92009-1458 SCREW,4MM |
92009-1458 |
from US $3.02 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MM |
92015-1233 |
from US $3.90 |
||
|
92037
|
92037
92037-1852 Clamp,Hose |
92037-1852 |
from US $10.93 |
||
|
92066
|
92066
92066-1077 PLUG,9.5X8 |
92066-1077 |
from US $3.01 |
||
|
92072
|
92072
92072-1197 BAND |
92072-1197 |
from US $5.07 |
||
|
92153
|
92153
92153-0417 BOLT,SOCKET,6X20 |
92153-0417 |
from US $3.80 |
||
|
92153A
|
92153A
92153-0627 BOLT,OIL,L=23 |
92153-0627 |
from US $2.85 |
||
