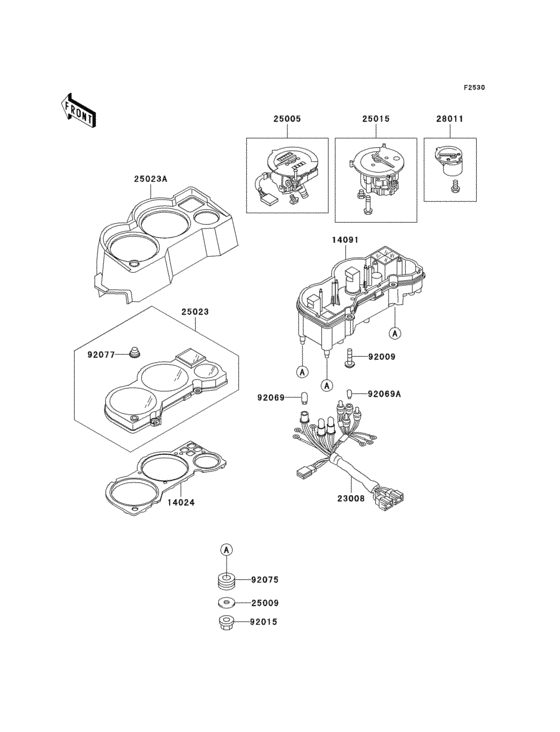

Meter(s) Diagram Kawasaki EX250 Ninja 250
- Year
- 2007
- Colour
- Kmt.candy Persimmon Red (G2)
- Model code
- EX250F7F
- Sales region
- Europe (General)
- Engine Capacity
- 250
- Model
- EX250 Ninja 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14024
|
14024
14024-1463 COVER,METER |
14024-1463 |
from US $23.64 |
||
|
14091
|
14091
14091-0127 COVER,METER HOUSING |
14091-0127 |
from US $52.82 |
||
|
23008
|
23008
23008-1367 SOCKET-ASSY,METER |
23008-1367 |
from US $44.01 |
||
|
25005
|
25005
25005-1388 SPEEDOMETER,MPH |
25005-1388 |
from US $363.92 |
||
|
25009
|
25009
25009-004
WASHER,5.2X16X16X1.2T
|
25009-004 |
— | ||
| replacement | |||||
|
25009
|
25009
92200-2276
Washer,5.2X16X1.2
|
92200-2276 |
— | ||
|
25015
|
25015
25015-0001 TACHOMETER,X1000R/MIN |
25015-0001 |
from US $386.31 |
||
|
25023
|
25023
25023-1158 Cover-meter case,upp |
25023-1158 |
from US $61.19 |
||
|
25023A
|
25023A
25023-1159 COVER-METER CASE |
25023-1159 |
from US $49.37 |
||
|
28011
|
28011
28011-1100 METER,TEMP |
28011-1100 |
from US $105.98 |
||
|
92009
|
92009
92009-1163 SCREW,TAPPING,4X16 |
92009-1163 |
from US $2.69 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MM |
92015-1259 |
from US $2.53 |
||
|
92069
|
92069
92069-1007 BULB,12V3.4W |
92069-1007 |
from US $3.33 |
||
|
92069A
|
92069A
92069-1068 BULB,14V 3W |
92069-1068 |
from US $3.33 |
||
|
92075
|
92075
92075-1385 DAMPER,METER BRACKET |
92075-1385 |
from US $3.64 |
||
|
92077
|
92077
92077-1061 BOOT,TRIP RESET KNOB |
92077-1061 |
from US $6.49 |
||
