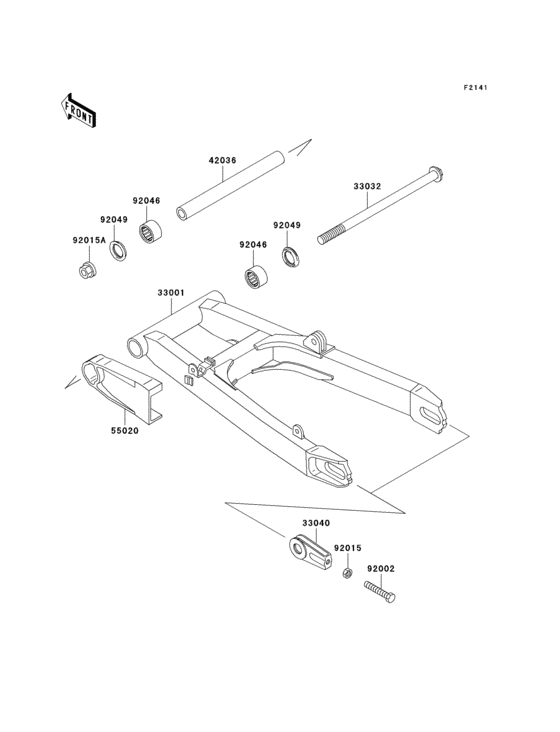

Swingarm Diagram Kawasaki EX250 Ninja 250
- Year
- 2007
- Colour
- Kmt.candy Persimmon Red (G2)
- Model code
- EX250F7F
- Sales region
- Europe (General)
- Engine Capacity
- 250
- Model
- EX250 Ninja 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33001
|
33001
33001-1301-CE ARM-COMP-SWING,SILVER |
33001-1301-CE |
from US $429.30 |
||
|
33032
|
33032
33032-1134 SHAFT-SWING ARM |
33032-1134 |
from US $36.65 |
||
|
33040
|
33040
33040043 ADJUSTER-CHAIN |
33040043 |
US $18.69 |
||
| replacement | |||||
|
33040
|
33040
33040-1004 ADJUSTER-CHAIN |
33040-1004 |
from US $14 |
||
|
42036
|
42036
42036-1218 SLEEVE |
42036-1218 |
from US $31.27 |
||
|
55020
|
55020
55020-1218 GUARD,CHAIN |
55020-1218 |
from US $37.25 |
||
|
92002
|
92002
92002-1825 Bolt |
92002-1825 |
US $1.55 |
||
| replacement | |||||
|
92002
|
92002
92153-1407 BOLT,8X55 |
92153-1407 |
from US $1.25 |
||
|
92015
|
92015
92015-1364 NUT,8MM |
92015-1364 |
from US $2.53 |
||
|
92015A
|
92015A
92015-1946 NUT |
92015-1946 |
from US $7.76 |
||
|
92046
|
92046
92046-1174 BEARING-NEEDLE,TA2230 |
92046-1174 |
from US $29.62 |
||
|
92049
|
92049
92049-1289 SEAL-OIL |
92049-1289 |
from US $5.70 |
||
