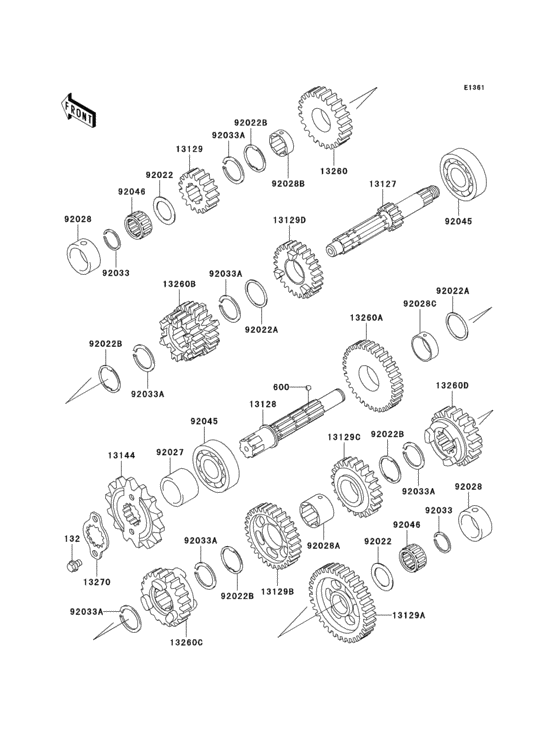

Transmission Diagram Kawasaki EX250 Ninja 250
- Year
- 2007
- Colour
- Kmt.candy Persimmon Red (G2)
- Model code
- EX250F7F
- Sales region
- Europe (General)
- Engine Capacity
- 250
- Model
- EX250 Ninja 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0608 BOLT-FLANGED-SMALL,6X |
132G0608 |
from US $1.43 |
||
| replacement | |||||
|
132
|
132
132BA0608 BOLT-FLANGED-SMALL,6X |
132BA0608 |
from US $1.11 |
||
|
600
|
600
600A0500 BALL STEEL 5/32' |
600A0500 |
from US $0.91 |
||
|
13127
|
13127
13127-1134 SHAFT-TRANSMISSION IN |
13127-1134 |
from US $174.24 |
||
|
13128
|
13128
13128-1131 SHAFT-TRANSMISSION OU |
13128-1131 |
from US $144.96 |
||
|
13129
|
13129
13129-1086 2ND GEAR,DRIVE,19T |
13129-1086 |
from US $67.17 |
||
|
13129A
|
13129A
13129-1254 LOW GEAR,OUTPUT,39T |
13129-1254 |
from US $113.55 |
||
|
13129B
|
13129B
13129-1781 GEAR,OUTPUT 3RD,31T |
13129-1781 |
from US $105.92 |
||
|
13129C
|
13129C
13129-1782 GEAR,OUTPUT 4TH,29T |
13129-1782 |
US $111.30 |
||
|
13129D
|
13129D
13129-1882 GEAR-TRANSMISSION SPU |
13129-1882 |
from US $111.30 |
||
|
13144
|
13144
13144-1126 SPROCKET-OUTPUT,14T |
13144-1126 |
from US $57.60 |
||
|
13260
|
13260
13260-1033 GEAR,INPUT TOP,28T |
13260-1033 |
US $101.13 |
||
|
13260A
|
13260A
13260-1034 GEAR,OUTPUT 2ND,34T |
13260-1034 |
from US $101.13 |
||
|
13260B
|
13260B
13260-1098 GEAR,INPUT 3RD&4TH,22 |
13260-1098 |
US $121.92 |
||
|
13260C
|
13260C
13260-1099 GEAR,OUTPUT TOP,25T |
13260-1099 |
US $104.12 |
||
|
13260D
|
13260D
13260-1267 GEAR,OUTPUT 5TH,27T |
13260-1267 |
from US $113.55 |
||
|
13270
|
13270
13270-1060 PLATE,SPROCKET |
13270-1060 |
from US $6.81 |
||
|
92022
|
92022
92022-112 WASHER THRUST |
92022-112 |
from US $5.54 |
||
|
92022A
|
92022A
92022-161 WASHER PLAIN |
92022-161 |
from US $6.65 |
||
|
92022B
|
92022B
92022-1935 WASHER,23X30X1.0 |
92022-1935 |
from US $3.33 |
||
|
92027
|
92027
92027-1302 COLLAR,ENGINE SPROCKE |
92027-1302 |
US $9.98 |
||
|
92028
|
92028
92028-1426 BUSHING,25X33X14 |
92028-1426 |
from US $26.48 |
||
|
92028A
|
92028A
92028-1437 BUSHING |
92028-1437 |
from US $17.27 |
||
|
92028B
|
92028B
92028-1563 BUSHING,TOP GEAR |
92028-1563 |
from US $17.27 |
||
|
92028C
|
92028C
92028-1564 BUSHING,9.4X25X28 |
92028-1564 |
from US $14.26 |
||
|
92033
|
92033
92033-015 CIRCLIP |
92033-015 |
from US $2.69 |
||
|
92033A
|
92033A
92033-026 CIRCLIP |
92033-026 |
from US $6.72 |
||
|
92045
|
92045
92045-1013 BEARING-BALL,#6205NX3 |
92045-1013 |
from US $20.75 |
||
|
92046
|
92046
92046-044 BRG,N,20R25139 |
92046-044 |
from US $19.64 |
||
