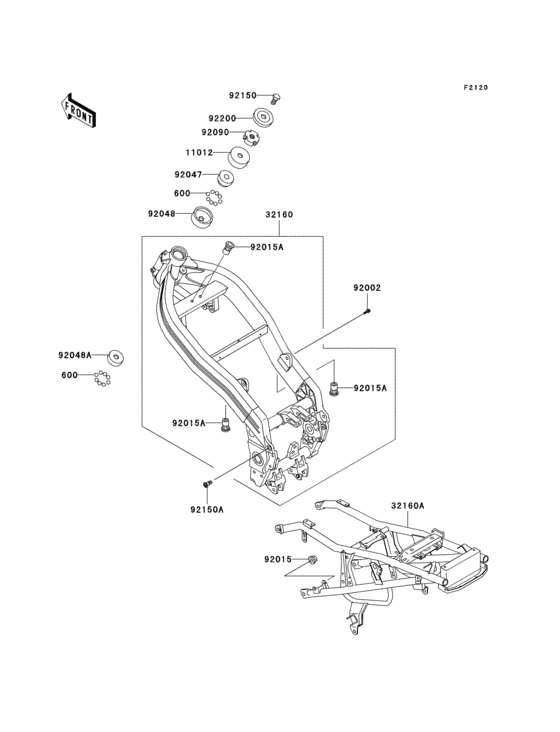

Frame Diagram Kawasaki EX250 ZZR250
- Year
- 2006
- Colour
- Kmt.candy Thunder Blue (620)
- Model code
- EX250H6F
- Sales region
- Canada
- Engine Capacity
- 250
- Model
- EX250 ZZR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
600
|
600
600A0800 BALL,6.35MM |
600A0800 |
from US $0.82 |
||
|
11012
|
11012
11012-1743 Cap,steering stem |
11012-1743 |
US $6.97 |
||
|
32160
|
32160
32160-1145-458 フレ-ム コンプ，al，fr，シルバー |
32160-1145-458 |
US $1,742.40 |
||
|
32160A
|
32160A
32160-1352 FRAME-COMP,RR |
32160-1352 |
US $1,080.29 |
||
|
92002
|
92002
92002-1368 BOLT,FLANGED,10X20 |
92002-1368 |
from US $3.98 |
||
|
92015
|
92015
92015-1428 NUT,FLANGED,10MM |
92015-1428 |
from US $3.01 |
||
|
92015A
|
92015A
92015-1792 NUT,POP,6MM,L=16.5 |
92015-1792 |
from US $2.85 |
||
|
92047
|
92047
92047-011 CONE,STRNG STM BRNG |
92047-011 |
US $12.36 |
||
| replacement | |||||
|
92047
|
92047
92048-0032 Race,steering Stem Be |
92048-0032 |
from US $12.36 |
||
|
92048
|
92048
92048-006
RACE STRNG STEM BERNG
|
92048-006 |
— | ||
| replacement | |||||
|
92048
|
92048
92048-0036 Race,steering Stem Be |
92048-0036 |
from US $9.35 |
||
|
92048A
|
92048A
92048-008 RACE,STRNG STM BRNG |
92048-008 |
US $13.62 |
||
| replacement | |||||
|
92048A
|
92048A
92048-0037 Race,steering Stem Be |
92048-0037 |
from US $13.62 |
||
|
92090
|
92090
92090-007 NUT, STEERING STEM LOCK |
92090-007 |
from US $7.13 |
||
|
92150
|
92150
92150-1672 BOLT,14X25 |
92150-1672 |
from US $8.71 |
||
|
92150A
|
92150A
92150-1747 Bolt |
92150-1747 |
from US $5.07 |
||
|
92200
|
92200
92200-1140 WASHER |
92200-1140 |
from US $6.97 |
||
