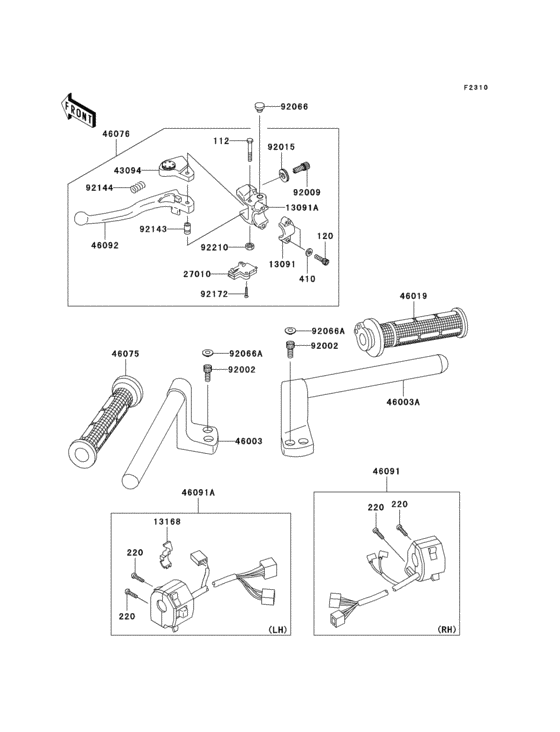

Handlebar Diagram Kawasaki EX250 ZZR250
- Year
- 2006
- Colour
- Kmt.candy Thunder Blue (620)
- Model code
- EX250H6F
- Sales region
- Canada
- Engine Capacity
- 250
- Model
- EX250 ZZR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112C0640 BOLT-UPSET |
112C0640 |
from US $0.95 |
||
| replacement | |||||
|
112
|
112
112BB0640 BOLT-UPSET |
112BB0640 |
from US $0.94 |
||
|
120
|
120
120S0620 BOLT-SOCKET |
120S0620 |
from US $1.11 |
||
| replacement | |||||
|
120
|
120
120CB0620 BOLT-SOCKET |
120CB0620 |
from US $1.11 |
||
|
220
|
220
220C0520 SCREW-PAN-CROS |
220C0520 |
from US $0.79 |
||
| replacement | |||||
|
220
|
220
220AB0520 SCREW-PAN-CROS |
220AB0520 |
from US $0.79 |
||
|
410
|
410
410F0600 WASHER-PLAIN-SMALL,6M |
410F0600 |
from US $0.45 |
||
| replacement | |||||
|
410
|
410
410AB0600 WASHER-PLAIN-SMALL,6M |
410AB0600 |
from US $0.79 |
||
|
13091
|
13091
13091-1624 HOLDER,CLUTCH LEVER |
13091-1624 |
from US $24.24 |
||
|
13091A
|
13091A
13091-1652 HOLDER,CLUTCH LEVER |
13091-1652 |
from US $38.30 |
||
| replacement | |||||
|
13091A
|
13091A
13280-0248 HOLDER,CLUTCH LEVER |
13280-0248 |
from US $32.31 |
||
|
13168
|
13168
13168-1448 LEVER,CHAKE |
13168-1448 |
from US $14.57 |
||
|
27010
|
27010
27010-1094 SWITCH,CLUTCH |
27010-1094 |
from US $21.07 |
||
|
43094
|
43094
43094-1053 ADJUSTER,CLUTCH LEVER |
43094-1053 |
from US $24.38 |
||
|
46003
|
46003
46003-1348-458 ハンドル，lh，シルバー |
46003-1348-458 |
US $146.46 |
||
|
46003A
|
46003A
46003-1349-458 ハンドル，rh，シルバー |
46003-1349-458 |
US $146.46 |
||
|
46019
|
46019
46019-1077 GRIP-ASSY,THROTTLE |
46019-1077 |
from US $28.12 |
||
|
46075
|
46075
46075-1088 GRIP,LH |
46075-1088 |
from US $15.21 |
||
|
46076
|
46076
46076-1180 LEVER-ASSY-GRIP,CLUTC |
46076-1180 |
from US $111.42 |
||
| replacement | |||||
|
46076
|
46076
46076-0045 LEVER-ASSY-GRIP,CLUTC |
46076-0045 |
from US $116.24 |
||
|
46091
|
46091
46091-1763 HOUSING-ASSY-CNTRL,RH |
46091-1763 |
from US $119.38 |
||
|
46091A
|
46091A
46091-1796 Housing-assy-control,lh |
46091-1796 |
US $151.91 |
||
|
46092
|
46092
46092-1162 LEVER-GRIP,CLUTCH |
46092-1162 |
from US $18.14 |
||
|
92002
|
92002
92002-1178 BOLT,SOCKET,8X20 |
92002-1178 |
from US $3.01 |
||
|
92009
|
92009
92009-1134 SCREW,CABLE ADJUST,8 |
92009-1134 |
from US $9.19 |
||
|
92015
|
92015
92015-1197 NUT,CABLE ADJUST LOCK |
92015-1197 |
from US $6.34 |
||
|
92066
|
92066
92066-1077 PLUG,9.5X8 |
92066-1077 |
from US $3.01 |
||
|
92066A
|
92066A
92066-1216 PLUG,HANDLE HOLDER |
92066-1216 |
from US $3.01 |
||
|
92143
|
92143
92143-1379 COLLAR |
92143-1379 |
from US $6.34 |
||
|
92144
|
92144
92144-1467 SPRING |
92144-1467 |
from US $3.96 |
||
|
92172
|
92172
92172-0183 SCREW,3X16 |
92172-0183 |
from US $0.95 |
||
|
92210
|
92210
92210-0006 NUT,LOCK,6MM |
92210-0006 |
from US $1.27 |
||
