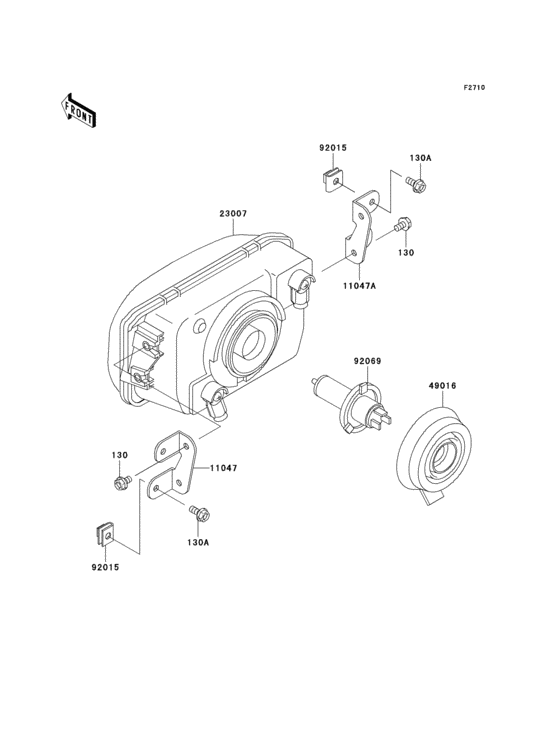

Headlight(s) Diagram Kawasaki EX250 ZZR250
- Year
- 2006
- Colour
- Kmt.candy Thunder Blue (620)
- Model code
- EX250H6F
- Sales region
- Canada
- Engine Capacity
- 250
- Model
- EX250 ZZR250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0610
BOLT-FLANGED,6X10
|
130J0610 |
— | ||
| replacement | |||||
|
130
|
130
130BB0610 BOLT-FLANGED,6X10 |
130BB0610 |
from US $1.11 |
||
|
130A
|
130A
130J0614
BOLT-FLANGED,6X14
|
130J0614 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0614 BOLT-FLANGED,6X14 |
130BB0614 |
from US $1.11 |
||
|
11047
|
11047
11047-1024 Bracket,head lamp,lh |
11047-1024 |
US $8.71 |
||
|
11047A
|
11047A
11047-1025 Bracket,head lamp,rh |
11047-1025 |
US $8.71 |
||
|
23007
|
23007
23007-1282 Lens-comp,head lamp |
23007-1282 |
US $408.01 |
||
|
49016
|
49016
49016-1108 COVER-SEAL,HEAD LAMP |
49016-1108 |
from US $15.52 |
||
|
92015
|
92015
92015-1094 NUT,MUFFLER |
92015-1094 |
from US $5.39 |
||
|
92069
|
92069
92069-1002
BULB,12V 60/55W,H4
|
92069-1002 |
— | ||
| replacement | |||||
|
92069
|
92069
92069-0050 BULB,12V 60/55W,H412V 60/55W,H4 |
92069-0050 |
from US $18.68 |
||
