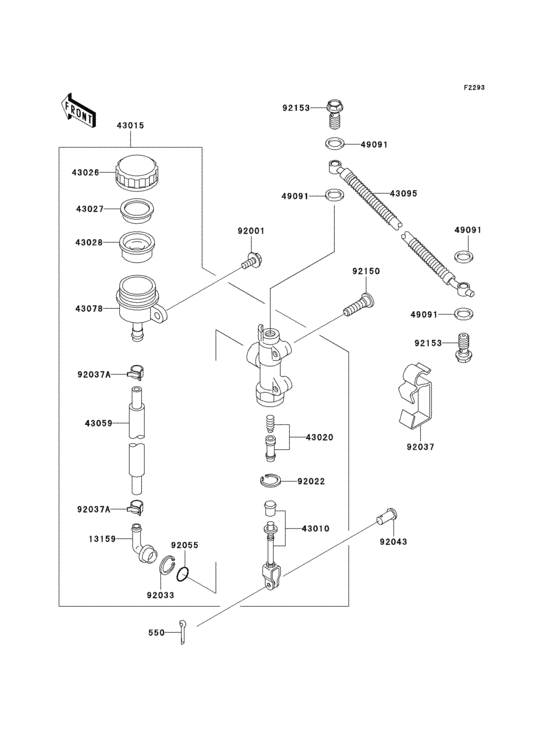

Rear master cylinder Diagram Kawasaki EX250 ZZR250
- Year
- 2006
- Colour
- Kmt.candy Thunder Blue (620)
- Model code
- EX250H6F
- Sales region
- Canada
- Engine Capacity
- 250
- Model
- EX250 ZZR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
550
|
550
550D2015
PIN-COTTER,2.0X15
|
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15 |
550AA2015 |
from US $0.63 |
||
|
13159
|
13159
13159-1056 CONNECTOR |
13159-1056 |
from US $9.98 |
||
|
43010
|
43010
43010-1055 ROD-ASSY-BRAKE |
43010-1055 |
from US $46.68 |
||
|
43015
|
43015
43015-1497 Cylinder-assy-master, |
43015-1497 |
US $242.48 |
||
|
43020
|
43020
43020-1073 PISTON-COMP-BRAKE |
43020-1073 |
US $60.64 |
||
| replacement | |||||
|
43020
|
43020
43020-1094 PISTON-COMP-BRAKE |
43020-1094 |
from US $42.04 |
||
|
43026
|
43026
43026-1077 CAP-BRAKE |
43026-1077 |
from US $25.13 |
||
|
43027
|
43027
43027-1053 PLATE-DIAPHRAGM |
43027-1053 |
from US $4.59 |
||
|
43028
|
43028
43028-1065 DIAPHRAGM |
43028-1065 |
from US $13.94 |
||
|
43059
|
43059
43059-1651
HOSE-BRAKE,RR MASTER
|
43059-1651 |
— | ||
|
43078
|
43078
43078-1080 RESERVOIR |
43078-1080 |
from US $19.01 |
||
|
43095
|
43095
43095-0145 ホ-ス(ブレ-キ)，rr |
43095-0145 |
US $62.23 |
||
|
49091
|
49091
49091-0001 WASHER-SEAL,10.1X14.5 |
49091-0001 |
US $2.81 |
||
|
92001
|
92001
92001-1860 BOLT,6X16 |
92001-1860 |
from US $2.69 |
||
|
92022
|
92022
92022-1601 RING-SNAP,20.9X24.6X1 |
92022-1601 |
US $4.44 |
||
| replacement | |||||
|
92022
|
92022
92033-0079 RING-SNAP,20.9X24.6X1 |
92033-0079 |
from US $3.80 |
||
|
92033
|
92033
92033-1186 RING-SNAP,20.5MM |
92033-1186 |
from US $3.01 |
||
|
92037
|
92037
92037-1498 CLAMP,RR BRAKE HOSE |
92037-1498 |
from US $5.07 |
||
|
92037A
|
92037A
92037-1710 Clamp |
92037-1710 |
from US $6.65 |
||
|
92043
|
92043
92043-1303 PIN,8X14.5 |
92043-1303 |
from US $3.64 |
||
| replacement | |||||
|
92043
|
92043
92043-0104 PIN,8X14.5 |
92043-0104 |
from US $1.90 |
||
|
92055
|
92055
92055-1251 RING-O,14.8X2.4 |
92055-1251 |
from US $3.96 |
||
| replacement | |||||
|
92055
|
92055
92055-0741 RING-O,14.8X2.4 |
92055-0741 |
from US $1.90 |
||
|
92150
|
92150
92150-1843 BOLT,SOCKET,8X30 |
92150-1843 |
from US $3.80 |
||
| replacement | |||||
|
92150
|
92150
92153-1624 BOLT,SOCKET,8X30 |
92153-1624 |
from US $1.90 |
||
|
92153
|
92153
92153-0627 BOLT,OIL,L=23 |
92153-0627 |
from US $2.85 |
||
