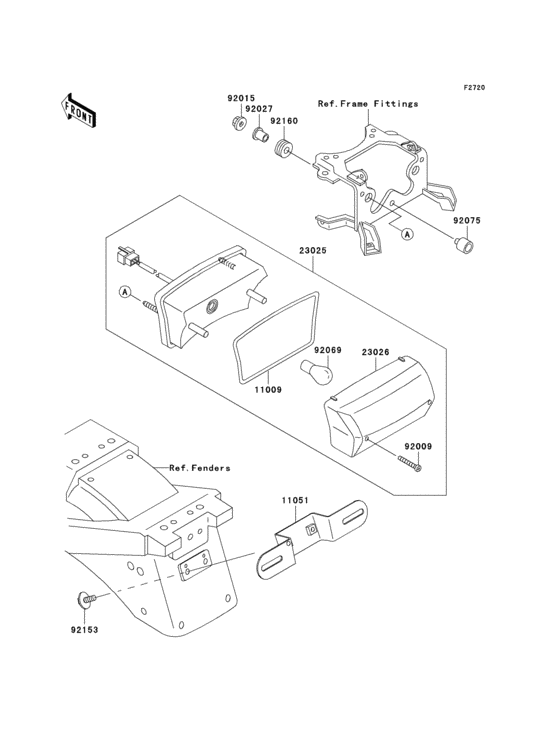

Taillight(s) Diagram Kawasaki EX250 ZZR250
- Year
- 2006
- Colour
- Kmt.candy Thunder Blue (620)
- Model code
- EX250H6F
- Sales region
- Canada
- Engine Capacity
- 250
- Model
- EX250 ZZR250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1889 Gasket,tail lamp lens |
11009-1889 |
US $8.55 |
||
|
11051
|
11051
11051-1525 Bracket,license |
11051-1525 |
US $13.81 |
||
|
23025
|
23025
23025-1298 Lamp-tail |
23025-1298 |
US $141.65 |
||
|
23026
|
23026
23026-1120 Lens,tail lamp |
23026-1120 |
US $39.20 |
||
|
92009
|
92009
92009-1506 SCREW,TAPPING,4X30 |
92009-1506 |
from US $3.01 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92027
|
92027
92027-251
COLLAR
|
92027-251 |
— | ||
| replacement | |||||
|
92027
|
92027
92152-0365 COLLAR |
92152-0365 |
from US $0.91 |
||
|
92069
|
92069
92069-063 BULB,12V 21/5W |
92069-063 |
from US $6.49 |
||
|
92075
|
92075
92075-035 DAMPER, RUBBER |
92075-035 |
from US $3.32 |
||
|
92153
|
92153
92153-0684 BOLT,6X16 |
92153-0684 |
from US $3.20 |
||
|
92160
|
92160
92160-1162 DAMPER |
92160-1162 |
from US $3.90 |
||
