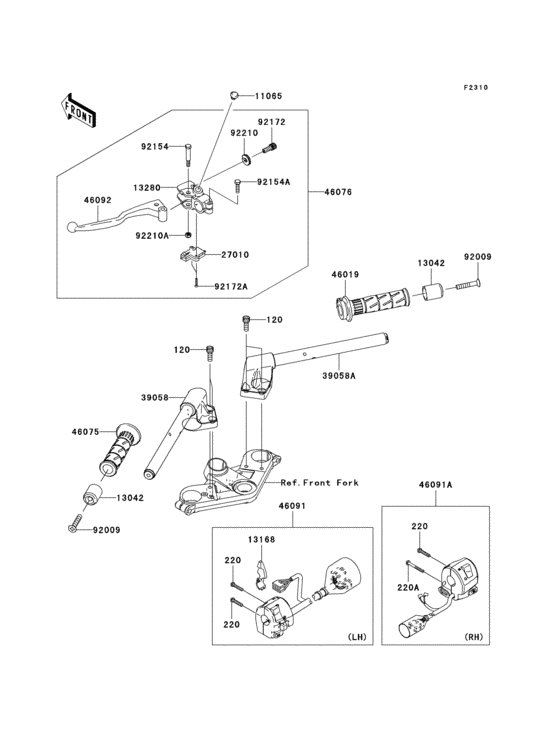

Handlebar Diagram Kawasaki EX250 Ninja 250
- Year
- 2008
- Colour
- Kmt.ebony (IG)
- Model code
- EX250J8F
- Sales region
- Australia
- Engine Capacity
- 250
- Model
- EX250 Ninja 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CB0822 BOLT-SOCKET,8X22 |
120CB0822 |
from US $1.27 |
||
|
220
|
220
220AB0525 SCREW-PAN-CROS |
220AB0525 |
from US $0.95 |
||
|
220A
|
220A
220AB0540 SCREW-PAN-CROSS,5X40 |
220AB0540 |
from US $0.95 |
||
|
11065
|
11065
11065-0218 CAP,DUMMY |
11065-0218 |
from US $3.17 |
||
| replacement | |||||
|
11065
|
11065
11065-0921 CAP,DUMMY |
11065-0921 |
from US $3.17 |
||
|
13042
|
13042
13042-1069 WEIGHT,HANDLE |
13042-1069 |
from US $23.34 |
||
|
13168
|
13168
13168-1516 LEVER,CHOKE |
13168-1516 |
from US $6.81 |
||
|
13280
|
13280
13280-0295 HOLDER,CLUTCH LEVER |
13280-0295 |
from US $23.19 |
||
|
27010
|
27010
27010-0098 SWITCH,CLUTCH |
27010-0098 |
from US $20.38 |
||
|
39058
|
39058
39058-0007-18R HANDLE-COMP,LH,BLACK |
39058-0007-18R |
from US $86.62 |
||
|
39058A
|
39058A
39058-0008-18R HANDLE-COMP,RH,BLACK |
39058-0008-18R |
from US $86.62 |
||
|
46019
|
46019
46019-0001 GRIP-ASSY,THROTTLE |
46019-0001 |
from US $30.75 |
||
|
46075
|
46075
46075-1144 GRIP,LH |
46075-1144 |
from US $18.40 |
||
|
46076
|
46076
46076-0054 New Genuine Part |
46076-0054 |
US $49.21 |
||
| replacement | |||||
|
46076
|
46076
46076-0123 LEVER-ASSY-GRIP,CLUTC |
46076-0123 |
from US $57.90 |
||
|
46091
|
46091
46091-0156 HOUSING-ASSY-CONTROL, |
46091-0156 |
from US $167.96 |
||
|
46091A
|
46091A
46091-0157
HOUSING-ASSY-CONTROL,
|
46091-0157 |
— | ||
|
46092
|
46092
46092-0030 LEVER-GRIP,CLUTCH |
46092-0030 |
from US $22.99 |
||
| replacement | |||||
|
46092
|
46092
46076-0123 LEVER-ASSY-GRIP,CLUTC |
46076-0123 |
from US $57.90 |
||
|
92009
|
92009
92009-1257 SCREW,HUNDLE WEIGHT |
92009-1257 |
from US $3.54 |
||
|
92154
|
92154
92154-0066 BOLT,CLUTCH LEVER |
92154-0066 |
from US $1.90 |
||
|
92154A
|
92154A
92154-0067 Bolt |
92154-0067 |
from US $0.95 |
||
|
92172
|
92172
92172-0376 SCREW,CABLE ADJUST,8M |
92172-0376 |
from US $4.59 |
||
|
92172A
|
92172A
92172-0379 SCREW,3X16 |
92172-0379 |
US $1.44 |
||
| replacement | |||||
|
92172A
|
92172A
92172-0183 SCREW,3X16 |
92172-0183 |
from US $0.95 |
||
|
92210
|
92210
92210-0479 NUT,CABLE ADJUST,LOCK |
92210-0479 |
from US $4.59 |
||
|
92210A
|
92210A
92210-0480 NUT,LOCK,6MM |
92210-0480 |
from US $1.27 |
||
