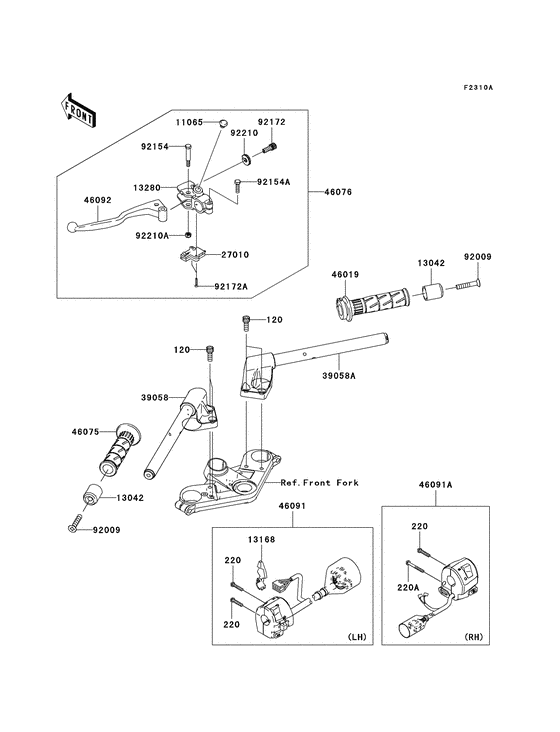

Handlebar (J9f/j9fa) Diagram Kawasaki EX250 Ninja 250
- Year
- 2009
- Model code
- EX250J9F
- Sales region
- USA
- Engine Capacity
- 250
- Model
- EX250 Ninja 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CB0822 BOLT-SOCKET,8X22Bolt-socket,8x22; |
120CB0822 |
from US $1.20 |
||
|
220
|
220
220AB0525 SCREW-PAN-CROSScrew-pan-cros,5x25; |
220AB0525 |
from US $0.84 |
||
|
220A
|
220A
220AB0540 SCREW-PAN-CROSS,5X40Screw-pan-cross,5x40; |
220AB0540 |
from US $0.84 |
||
|
11065
|
11065
11065-0218 CAP,DUMMYCap,dummy; |
11065-0218 |
US $4.24 |
||
| replacement | |||||
|
11065
|
11065
11065-0921 CAP,DUMMYCap,dummy; |
11065-0921 |
from US $2.80 |
||
|
13042
|
13042
13042-1069 WEIGHT,HANDLEWeight,handle; |
13042-1069 |
from US $19.50 |
||
|
13168
|
13168
13168-1516 LEVER,CHOKELever,choke; |
13168-1516 |
from US $6.02 |
||
|
13280
|
13280
13280-0295 HOLDER,CLUTCH LEVERHolder,clutch lever; |
13280-0295 |
from US $21.32 |
||
|
27010
|
27010
27010-1094 SWITCH,CLUTCHSwitch,clutch,black; |
27010-1094 |
from US $18.62 |
||
|
39058
|
39058
39058-0007-18R HANDLE-COMP,LH,BLACKHandle-comp,lh,black; |
39058-0007-18R |
from US $79.53 |
||
|
39058A
|
39058A
39058-0008-18R HANDLE-COMP,RH,BLACKHandle-comp,rh,black; |
39058-0008-18R |
from US $79.53 |
||
|
46019
|
46019
46019-0001 GRIP-ASSY,THROTTLEGrip-assy,throttle; |
46019-0001 |
from US $23.80 |
||
|
46075
|
46075
46075-1144 GRIP,LHGrip,lh; |
46075-1144 |
from US $13.44 |
||
|
46076
|
46076
46076-0058 レバ-アツシ(グリツプ)，クラツチLever-assy-grip,clutch; |
46076-0058 |
US $50.31 |
||
| replacement | |||||
|
46076
|
46076
46076-0123 LEVER-ASSY-GRIP,CLUTCLever-assy-grip,clutch; |
46076-0123 |
from US $53.85 |
||
|
46091
|
46091
46091-0156 HOUSING-ASSY-CONTROL,Housing-assy-control,lh; |
46091-0156 |
from US $163.30 |
||
|
46091A
|
46091A
46091-0157 HOUSING-ASSY-CONTROL,Housing-assy-control,rh; |
46091-0157 |
from US $101.15 |
||
|
46092
|
46092
46092-0030 LEVER-GRIP,CLUTCHLever-grip,clutch; |
46092-0030 |
US $22.35 |
||
| replacement | |||||
|
46092
|
46092
46076-0123 LEVER-ASSY-GRIP,CLUTCLever-grip,clutch; |
46076-0123 |
from US $53.85 |
||
|
92009
|
92009
92009-1257 SCREW,HUNDLE WEIGHTScrew,8x45; |
92009-1257 |
from US $2.52 |
||
|
92154
|
92154
92154-0066 BOLT,CLUTCH LEVERBolt,clutch lever; |
92154-0066 |
from US $1.67 |
||
|
92154A
|
92154A
92154-0067 BOLT |
92154-0067 |
from US $0.91 |
||
|
92172
|
92172
92172-0376 SCREW,CABLE ADJUST,8MScrew,cable adjust,8mm; |
92172-0376 |
from US $4.23 |
||
|
92172A
|
92172A
92172-0397 SCREW,3X16Screw,3x16; |
92172-0397 |
from US $0.76 |
||
|
92210
|
92210
92210-0479 NUT,CABLE ADJUST,LOCKNut,cable adjust,lock,8mm; |
92210-0479 |
from US $4.23 |
||
|
92210A
|
92210A
92210-0480 NUT,LOCK,6MMNut,lock,6mm; |
92210-0480 |
from US $1.20 |
||
