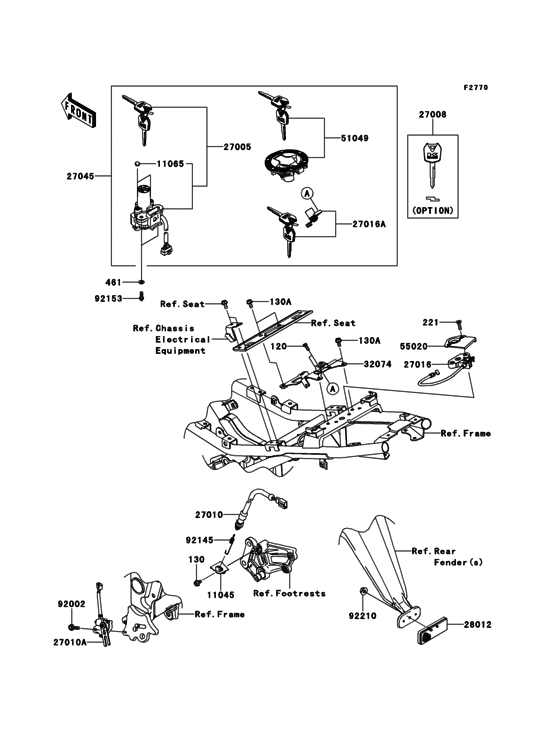

Ignition Switch Diagram Kawasaki EX250 Ninja 250R
- Year
- 2011
- Model code
- EX250KBFA
- Sales region
- Europe (General)
- Engine Capacity
- 250
- Model
- EX250 Ninja 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CB0512 BOLT-SOCKET,5X12 |
120CB0512 |
from US $0.95 |
||
|
130
|
130
130BA0610 BOLT-FLANGED,6X10 |
130BA0610 |
from US $0.79 |
||
|
130A
|
130A
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.43 |
||
|
221
|
221
221AA0625 SCREW-CSK-CROSS,6X25 |
221AA0625 |
from US $0.95 |
||
|
461
|
461
461DA0600 WASHER-SPRING,6MM |
461DA0600 |
from US $0.55 |
||
|
11045
|
11045
11045-1641 BRACKET,REAR BRAKE SW |
11045-1641 |
from US $5.86 |
||
|
11065
|
11065
11065-0708 CAP,IGNITION SWITCH |
11065-0708 |
from US $2.22 |
||
|
27005
|
27005
27005-5144 SWITCH-ASSY-IGNITION |
27005-5144 |
from US $159.72 |
||
|
27008
|
27008
27008-0053 KEY-LOCK,BLANK |
27008-0053 |
from US $12.83 |
||
|
27010
|
27010
27010-0080 SWITCH,REAR BRAKE |
27010-0080 |
from US $32.61 |
||
|
27010A
|
27010A
27010-0097 SWITCH,SIDE STAND |
27010-0097 |
from US $82.13 |
||
|
27016
|
27016
27016-0022 LOCK-ASSY,SEAT STRIKE |
27016-0022 |
from US $32.61 |
||
|
27016A
|
27016A
27016-5353 LOCK-ASSY,SEAT |
27016-5353 |
from US $76.89 |
||
|
27045
|
27045
27048-5087 SWITCH-ASSY |
27048-5087 |
from US $320.37 |
||
|
28012
|
28012
28012-1077 Reflector-reflex |
28012-1077 |
from US $19.66 |
||
|
32074
|
32074
32074-0014 BRACKET-LOCK |
32074-0014 |
from US $26.33 |
||
|
51049
|
51049
51049-5009 CAP-TANK,FUEL |
51049-5009 |
from US $132.70 |
||
|
55020
|
55020
55020-0554 GUARD,SEAT LOCK |
55020-0554 |
from US $9.98 |
||
|
92002
|
92002
92002-1582 BOLT,6X25 |
92002-1582 |
from US $2.85 |
||
|
92145
|
92145
92145-0683 SPRING,BRAKE LAMP SWI |
92145-0683 |
from US $1.90 |
||
|
92153
|
92153
92153-0967 BOLT,TORX,6X16 |
92153-0967 |
from US $1.11 |
||
|
92210
|
92210
92210-0007 NUT,FLANGED,5MM |
92210-0007 |
from US $1.61 |
