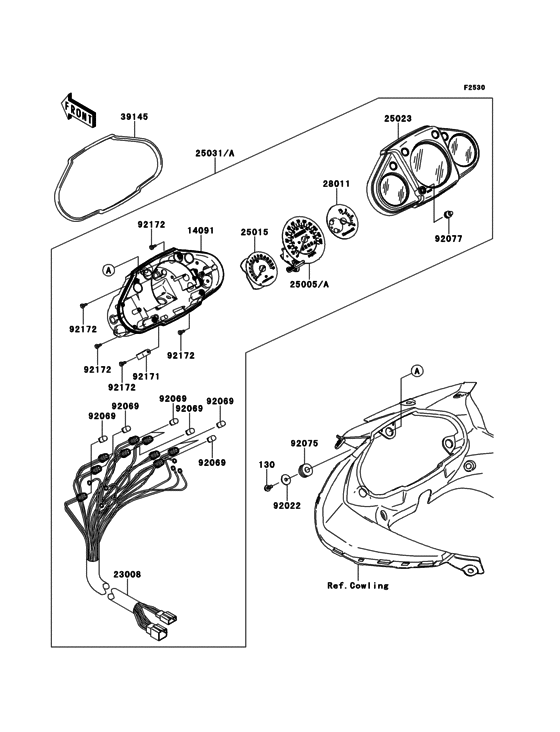

Meter(s) Diagram Kawasaki EX250 Ninja 250R
- Year
- 2011
- Model code
- EX250KBFA
- Sales region
- Europe (General)
- Engine Capacity
- 250
- Model
- EX250 Ninja 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0514 BOLT-FLANGED,5X14 |
130BA0514 |
from US $0.95 |
||
|
14091
|
14091
14091-0804 COVER,METER HOUSING |
14091-0804 |
from US $62.68 |
||
|
23008
|
23008
23008-0077 ソケツトアツシ，メータ |
23008-0077 |
US $48.92 |
||
|
25005
|
25005
25005-0088 スピ-ドメ-タKPH |
25005-0088 |
US $357.19 |
||
|
25015
|
25015
25015-0018 TACHOMETER,X1000R/MIN |
25015-0018 |
from US $197.51 |
||
|
25023
|
25023
25023-0031 Cover-meter case,upp |
25023-0031 |
from US $73.52 |
||
|
25031
|
25031
25031-0493 Meter-Assy,kph |
25031-0493 |
US $737.16 |
||
|
28011
|
28011
28011-0178 Metalconnecting rodテンプ&フユーエル |
28011-0178 |
US $211.99 |
||
|
39145
|
39145
39145-0039 TRIM-SEAL,L=640 |
39145-0039 |
from US $15.21 |
||
|
92022
|
92022
92022-1405 WASHER,5.5X20X1.2 |
92022-1405 |
from US $2.69 |
||
|
92069
|
92069
92069-1007 BULB,12V3.4W |
92069-1007 |
from US $3.33 |
||
|
92075
|
92075
92075-1690 DAMPER |
92075-1690 |
from US $3.90 |
||
|
92077
|
92077
92077-0010 KNOB,TRIP RESET |
92077-0010 |
from US $5.23 |
||
|
92171
|
92171
92171-1601 Clamp |
92171-1601 |
from US $4.12 |
||
|
92172
|
92172
92172-0340 SCREW,TAPPING |
92172-0340 |
from US $2.22 |
