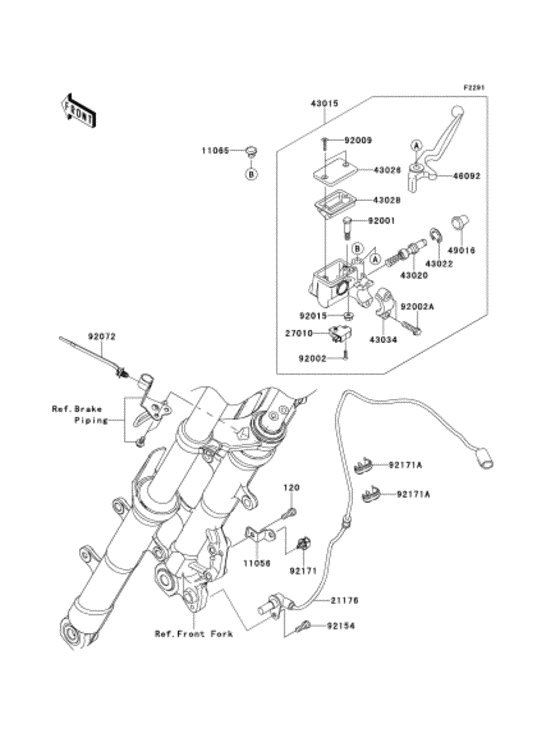

Front master cylinder Diagram Kawasaki EX250 Ninja 250
- Year
- 2013
- Colour
- Ebony (H8)
- Model code
- EX250MDFA
- Sales region
- Japan
- Engine Capacity
- 250
- Frame
- EX250L A03281 - A35138
- Engine
- EX250LE A00001 -
- Model
- EX250 Ninja 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CA0616 BOLT-SOCKET,6X16ボルト(ロツカクアナ)，6X16 |
120CA0616 |
from US $1.11 |
||
|
11056
|
11056
11056-1816 BRACKETI/X ブラケット |
11056-1816 |
from US $1.43 |
||
| replacement | |||||
|
11056
|
11056
11056-4005 BRACKETブラケット |
11056-4005 |
from US $2.69 |
||
|
11065
|
11065
11065-0218 CAP,DUMMYキヤツプ，ダミー |
11065-0218 |
from US $3.17 |
||
| replacement | |||||
|
11065
|
11065
11065-0921 CAP,DUMMYキヤツプ，ダミー |
11065-0921 |
from US $3.17 |
||
|
21176
|
21176
21176-0750 SENSOR,ABS,FRABS，FR センサ-，ABS，FR |
21176-0750 |
from US $92.30 |
||
|
27010
|
27010
27010-1170
SWITCH,BRAKE
スイツチ，ブレ-キ |
27010-1170 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-0025 SWITCH,BRAKEスイツチ，ブレ-キ |
27010-0025 |
from US $23.19 |
||
|
43015
|
43015
43015-0110
Cylinder assy, Master, Front
シリンダアツシ(マスタ)，FR |
43015-0110 |
— | ||
| replacements | |||||
|
43015
|
43015
43015-0622 CYLINDER-ASSY-MASTER,シリンダアツシ(マスタ)，FR |
43015-0622 |
from US $153.19 |
||
|
43015
|
43015
43015-0728 Cylinder-Assy-Master,シリンダアツシ(マスタ)，FR |
43015-0728 |
from US $151.79 |
||
|
43020
|
43020
43020-1095
PISTON-COMP-BRAKE
ピストンコンプ(ブレ-キ) |
43020-1095 |
— | ||
| replacement | |||||
|
43020
|
43020
43020-1098 PISTON-COMP-BRAKEピストンコンプ(ブレ-キ) |
43020-1098 |
from US $34.41 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPERストツパ(ブレ-キ)，ピストン |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1074 CAP-BRAKEキヤツプ(ブレ-キ) |
43026-1074 |
from US $17.42 |
||
|
43028
|
43028
43028-1061 DIAPHRAGMダイアフラム |
43028-1061 |
from US $11.72 |
||
|
43034
|
43034
43034-1016 HOLDER-BRAKE,MASTER Cホルダ(ブレ-キ) |
43034-1016 |
from US $14.10 |
||
|
46092
|
46092
46092-0028 LEVER-GRIP,FRONT BRAKレバ-(グリツプ)，フロント ブレーキ |
46092-0028 |
from US $16.49 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDERカバ-(シ-ル) |
49016-1044 |
from US $10.61 |
||
|
92001
|
92001
92001-1728 BOLT,FRONT BRAKE LEVERボルト，フロント ブレ-キ レバ- |
92001-1728 |
from US $10.45 |
||
|
92002
|
92002
92002-1323 Boltボルト，スクリユ，4X12 |
92002-1323 |
from US $2.53 |
||
|
92002A
|
92002A
92002-1894 Boltボルト |
92002-1894 |
from US $3.17 |
||
|
92009
|
92009
92009-1458 SCREW,4MMスクリユ-，4MM |
92009-1458 |
from US $3.02 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMナツト，フランジ，6MM，ブラツク |
92015-1233 |
from US $3.90 |
||
|
92072
|
92072
92072-1414 BANDバンド |
92072-1414 |
from US $1.74 |
||
|
92154
|
92154
92154-0235 BOLT,SOCKET,6X16ボルト，ソケツト，6X16 |
92154-0235 |
from US $1.27 |
||
|
92171
|
92171
92171-0640 Clampクランプ |
92171-0640 |
from US $2.32 |
||
|
92171A
|
92171A
92171-1819 CLAMP,BRAKE HOSEクランプ，ブレーキ ホース |
92171-1819 |
from US $2.85 |
||
