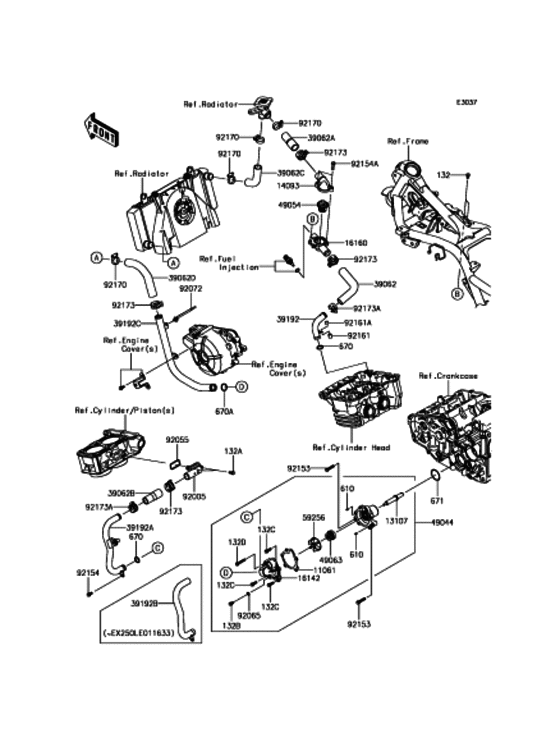

ウォータパイプ Diagram Kawasaki EX250 Ninja 250
- Year
- 2015
- Colour
- Metallic Moondust Gray (25X)
- Model code
- EX250MFF
- Sales region
- Japan
- Engine Capacity
- 250
- Frame
- EX250L-011001-017000
- Engine
- EX250LE000001-
- Model
- EX250 Ninja 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BA0614 BOLT-FLANGED-SMALL,6Xコガタツバツキ |
132BA0614 |
from US $0.79 |
||
|
132A
|
132A
132BA0616 BOLT-FLANGED-SMALL,6Xコガタツバツキ |
132BA0616 |
from US $0.79 |
||
|
132B
|
132B
132BB0610 BOLT-FLANGED-SMALL,6Xコガタツバツキ |
132BB0610 |
from US $1.11 |
||
|
132C
|
132C
132BB0618 BOLT-FLANGED-SMALLコガタツバツキ |
132BB0618 |
from US $1.11 |
||
|
132D
|
132D
132BB0635 BOLT-FLANGED-SMALLコガタツバツキ |
132BB0635 |
from US $1.27 |
||
|
610
|
610
610A0408 PIN DOWEL 4X8 |
610A0408 |
from US $1.07 |
||
|
670
|
670
670B2016 O RING,16MMウンドウヨウ |
670B2016 |
from US $3.20 |
||
|
670A
|
670A
670B2018 0 RING,18MMウンドウヨウ |
670B2018 |
from US $3.20 |
||
|
11061
|
11061
11061-0795 Gasket, Water Pump |
11061-0795 |
from US $6.97 |
||
|
13107
|
13107
13107-0742 SHAFT |
13107-0742 |
from US $25.58 |
||
|
14093
|
14093
14093-0224 COVER,THERMOSTAT |
14093-0224 |
from US $39.64 |
||
|
16142
|
16142
16142-0708 COVER-PUMPポンプ ポンプ |
16142-0708 |
from US $27.68 |
||
|
16160
|
16160
16160-0762 BODY,THERMO.,LWR |
16160-0762 |
from US $22.29 |
||
|
39062
|
39062
39062-0691 HOSE-COOLING,THERMO.-ク-リング |
39062-0691 |
from US $23.19 |
||
|
39062A
|
39062A
39062-0692 HOSE-COOLING,THERMO.-ク-リング |
39062-0692 |
from US $9.35 |
||
|
39062B
|
39062B
39062-0693 HOSE-COOLING,W/P-CYLIク-リング |
39062-0693 |
from US $2.85 |
||
|
39062C
|
39062C
39062-0694 HOSE-COOLING,RAD.-CAPク-リング |
39062-0694 |
from US $4.91 |
||
|
39062D
|
39062D
39062-0695 HOSE-COOLING,RAD.-W/Pク-リング |
39062-0695 |
from US $23.19 |
||
|
39192
|
39192
39192-0590 PIPE-WATERウオ-タ |
39192-0590 |
from US $23.19 |
||
|
39192A
|
39192A
39192-0600 PIPE-WATER,W/P-CYLINDウオ-タ |
39192-0600 |
from US $20.75 |
||
|
39192B
|
39192B
39192-0603 KIT,WATER-PIPE&BOLTウオ-タ |
39192-0603 |
US $22.29 |
||
| replacement | |||||
|
39192B
|
39192B
99996-1374 KIT,WATER-PIPE&BOLTウオ-タ |
99996-1374 |
from US $22.09 |
||
|
39192C
|
39192C
39192-0604 PIPE-WATER,RAD.-W/Pウオ-タ |
39192-0604 |
from US $19.17 |
||
|
49044
|
49044
49044-0013 PUMP-WATERウオ-タ |
49044-0013 |
from US $190.21 |
||
|
49054
|
49054
49054-1056 THERMOSTAT |
49054-1056 |
from US $39.34 |
||
|
49063
|
49063
49063-1055 SEAL-MECHANICALメカニカル |
49063-1055 |
from US $21.37 |
||
|
59256
|
59256
59256-0554 IMPELLER |
59256-0554 |
from US $14.26 |
||
|
92005
|
92005
92005-0777 FITTING,CYLINDER |
92005-0777 |
from US $13.46 |
||
| replacement | |||||
|
92005
|
92005
92005-0890 Fitting,cylinder |
92005-0890 |
from US $13.46 |
||
|
92055
|
92055
92055-0735 RING-O,2.4MM2.4MM |
92055-0735 |
from US $1.74 |
||
|
92065
|
92065
92065-096 GASKET,FUEL COCK |
92065-096 |
from US $3.01 |
||
|
92072
|
92072
92072-1414 BAND |
92072-1414 |
from US $1.74 |
||
|
92153
|
92153
92153-0832 BOLT,6X30 |
92153-0832 |
from US $1.90 |
||
|
92154
|
92154
92154-1140 BOLT,FLANGED,6X12フランジ，6X12 |
92154-1140 |
from US $0.95 |
||
|
92154A
|
92154A
92154-1212 BOLT,FLANGED,6X25フランジ，6X25 |
92154-1212 |
from US $1.27 |
||
|
92161
|
92161
92161-0690 DAMPER,10X11.5 |
92161-0690 |
from US $1.90 |
||
|
92161A
|
92161A
92161-0691 DAMPER,10X7.5 |
92161-0691 |
from US $0.63 |
||
|
92170
|
92170
92170-1033 CLAMP,COOLING HOSE |
92170-1033 |
from US $9.66 |
||
|
92173
|
92173
92173-1416 CLAMP |
92173-1416 |
from US $2.22 |
||
|
92173A
|
92173A
92173-1417 CLAMP |
92173-1417 |
from US $1.74 |
||
