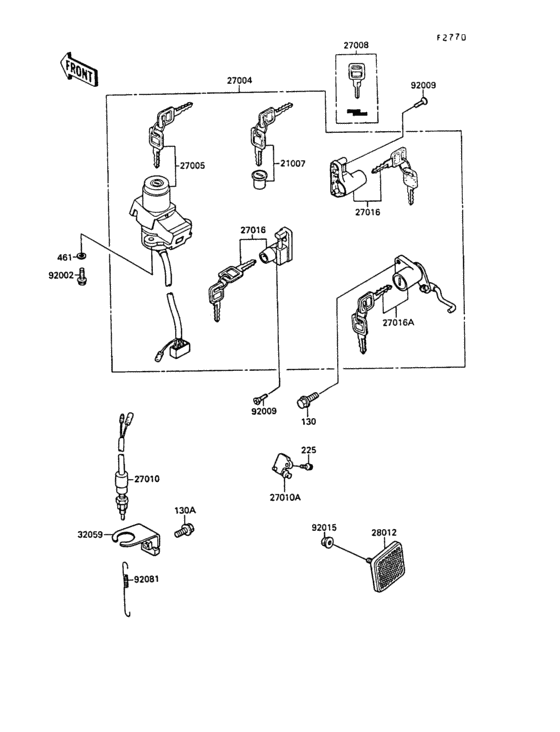

Ignition switch Diagram Kawasaki EX400 GPZ400S
- Year
- 1988
- Colour
- 003
- Model code
- EX400-A2
- Sales region
- Sweden
- Engine Capacity
- 400
- Model
- EX400 GPZ400S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0510 BOLT-FLANGED |
130B0510 |
US $0.76 |
||
| replacements | |||||
|
130
|
130
130CA0510 BOLT-FLANGED |
130CA0510 |
from US $0.95 |
||
|
130
|
130
130AA0510 BOLT-FLANGED |
130AA0510 |
from US $0.95 |
||
|
130A
|
130A
130B0614 Bolt |
130B0614 |
US $0.68 |
||
| replacements | |||||
|
130A
|
130A
130AA0614 BOLT-FLANGED |
130AA0614 |
from US $0.82 |
||
|
130A
|
130A
130BA0614 BOLT-FLANGED,6X14 |
130BA0614 |
from US $0.79 |
||
|
225
|
225
225C0416 SCREW,4X16 |
225C0416 |
from US $1.27 |
||
| replacement | |||||
|
225
|
225
92009-1500 SCREW,4X16 |
92009-1500 |
from US $2.65 |
||
|
461
|
461
461L0600 WASHER-SPRING,6MM |
461L0600 |
US $4.30 |
||
| replacement | |||||
|
461
|
461
461DA0600 WASHER-SPRING,6MM |
461DA0600 |
from US $0.55 |
||
|
21007
|
21007
21007-5013
Rotor,lock,tank cap
|
21007-5013 |
— | ||
| replacement | |||||
|
21007
|
21007
21007-5037 ROTOR,LOCK,TANK CAP |
21007-5037 |
from US $67.17 |
||
|
27004
|
27004
27004-5301
Switch-assy
|
27004-5301 |
— | ||
|
27005
|
27005
27005-5071
SWITCH-ASSY-IGNITION
|
27005-5071 |
— | ||
| replacement | |||||
|
27005
|
27005
27005-5069
SWITCH-ASSY-IGNITION
|
27005-5069 |
— | ||
|
27008
|
27008
27008-1103 KEY-LOCK,BLANK |
27008-1103 |
from US $14.57 |
||
|
27010
|
27010
27010-1019
SWITCH,REAR BRAKE
|
27010-1019 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-1474 SWITCH,REAR BRAKE |
27010-1474 |
from US $21.84 |
||
|
27010A
|
27010A
27010-1185 SWITCH,BRAKE |
27010-1185 |
from US $26.93 |
||
|
27016
|
27016
27016-5092
Lock-assy,helmet
|
27016-5092 |
— | ||
| replacement | |||||
|
27016
|
27016
27016-5091 LOCK-ASSY,HELMET |
27016-5091 |
from US $57.62 |
||
|
27016A
|
27016A
27016-5124
Lock-assy,seat
|
27016-5124 |
— | ||
| replacement | |||||
|
27016A
|
27016A
27016-5123 LOCK-ASSY,SEAT |
27016-5123 |
from US $74.09 |
||
|
28012
|
28012
28012-1054
Reflector-reflex,rr
|
28012-1054 |
— | ||
| replacement | |||||
|
28012
|
28012
28012-1088 Reflector-reflex |
28012-1088 |
from US $17.58 |
||
|
32059
|
32059
32059-1081 BRACKET-SWITCH,REAR B |
32059-1081 |
from US $6.55 |
||
|
92002
|
92002
92002-1333
Bolt
|
92002-1333 |
— | ||
| replacements | |||||
|
92002
|
92002
92153-0967 BOLT,TORX,6X16 |
92153-0967 |
from US $1.11 |
||
|
92002
|
92002
92151-1911 BOLT,TORX,6X16 |
92151-1911 |
from US $1.11 |
||
|
92009
|
92009
92009-1305 SCREW,5X16 |
92009-1305 |
from US $2.53 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MM |
92015-1259 |
from US $2.53 |
||
|
92081
|
92081
27011006 SPRING BRAKE LAMP SW |
27011006 |
from US $6.97 |
||
