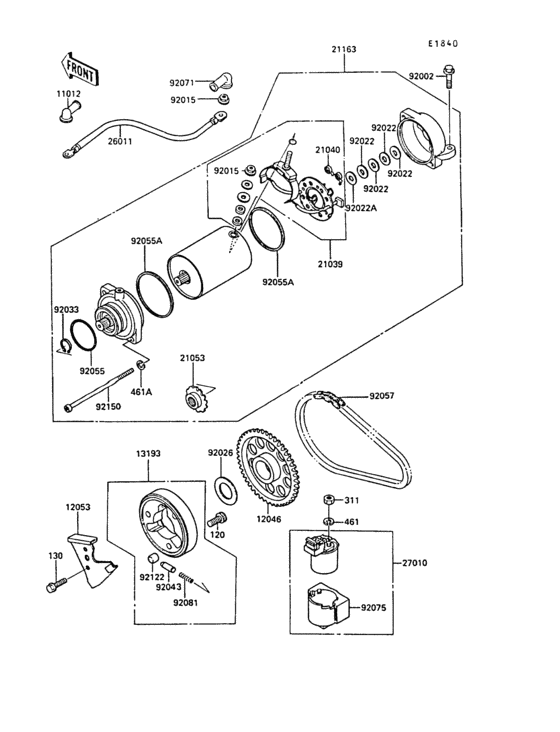

Starter motor Diagram Kawasaki EX400 GPZ400S
- Year
- 1988
- Colour
- 003
- Model code
- EX400-A2
- Sales region
- Sweden
- Engine Capacity
- 400
- Model
- EX400 GPZ400S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0816 BOLT-SOCKET |
120P0816 |
US $1.74 |
||
| replacement | |||||
|
120
|
120
120CA0816 BOLT-SOCKET |
120CA0816 |
from US $1.27 |
||
|
130
|
130
130G0620
BOLT-FLANGED,6X20
|
130G0620 |
— | ||
| replacements | |||||
|
130
|
130
130CA0620 BOLT-FLANGED,6X20 |
130CA0620 |
from US $1.11 |
||
|
130
|
130
130BA0620 BOLT-FLANGED,6X20 |
130BA0620 |
from US $1.11 |
||
|
311
|
311
311B0600
NUT-HEX,6MM
|
311B0600 |
— | ||
| replacement | |||||
|
311
|
311
311AA0600 NUT-HEX,6MM |
311AA0600 |
from US $0.63 |
||
|
461
|
461
461F0600
WASHER-SPRING,6MM
|
461F0600 |
— | ||
| replacement | |||||
|
461
|
461
461DA0600 WASHER-SPRING,6MM |
461DA0600 |
from US $0.55 |
||
|
461A
|
461A
461K0600
WASHER-SPRING
|
461K0600 |
— | ||
| replacement | |||||
|
461A
|
461A
461DB0600 WASHER-SPRING |
461DB0600 |
from US $0.79 |
||
|
11012
|
11012
11012-1354 CAP,TERMINAL |
11012-1354 |
from US $7.44 |
||
|
12046
|
12046
12046-1072 SPROCKET,ONEWAY CLUTC |
12046-1072 |
from US $67.92 |
||
| replacement | |||||
|
12046
|
12046
12046-0633 Sprocket,Oneway Clutc |
12046-0633 |
US $86.46 |
||
|
12053
|
12053
12053-1214
GUIDE-CHAIN
|
12053-1214 |
— | ||
|
13193
|
13193
13193-1060 CLUTCH-ASSY |
13193-1060 |
from US $124.92 |
||
|
21039
|
21039
21039-1053 BRUSH,CARBON |
21039-1053 |
from US $100.53 |
||
|
21040
|
21040
21040-1003 SPRING-BRUSH |
21040-1003 |
from US $7.13 |
||
|
21053
|
21053
21053-1057 SPROCKET-ASSY |
21053-1057 |
US $32.46 |
||
|
21163
|
21163
21163-1120 Starter-electric |
21163-1120 |
US $535.28 |
||
| replacement | |||||
|
21163
|
21163
21163-1163 Starter-electric |
21163-1163 |
from US $535.28 |
||
|
26011
|
26011
26011-1135 WIRE-LEAD,START MOTOR |
26011-1135 |
from US $49.07 |
||
|
27010
|
27010
27010-1213
SWITCH,MAGNETIC
|
27010-1213 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-0778 SWITCH,MAGNETIC |
27010-0778 |
from US $101.09 |
||
|
92002
|
92002
92002-1086 BOLT,6X25 |
92002-1086 |
from US $3.90 |
||
|
92015
|
92015
92015-1476 NUT,6MM |
92015-1476 |
from US $2.69 |
||
|
92022
|
92022
21025011 WASHER,THRUST,0.2T |
21025011 |
from US $4.28 |
||
|
92022A
|
92022A
92022-1132 WASHER,THRUST,0.8T |
92022-1132 |
from US $3.48 |
||
|
92026
|
92026
92026-1285 SPACER,25.2X40X1.0 |
92026-1285 |
from US $4.12 |
||
|
92033
|
92033
92033-034 RING-SNAP |
92033-034 |
US $10.42 |
||
| replacement | |||||
|
92033
|
92033
92033-1326 RING-SNAP |
92033-1326 |
from US $6.49 |
||
|
92043
|
92043
92043-087 PIN |
92043-087 |
from US $8.71 |
||
|
92055
|
92055
21027005
0 RING,42.8MM
|
21027005 |
— | ||
| replacement | |||||
|
92055
|
92055
92055-1313 RING-O |
92055-1313 |
from US $5.39 |
||
|
92055A
|
92055A
92055-1086 0 RING,STARTER MOTR |
92055-1086 |
from US $6.34 |
||
|
92057
|
92057
92057-1197 CHAIN,STARTER |
92057-1197 |
from US $40.39 |
||
|
92071
|
92071
21017017 GROMMET,CORD |
21017017 |
from US $6.81 |
||
|
92075
|
92075
92075-1863 DAMPER,MAGNETIC SWITC |
92075-1863 |
from US $14.41 |
||
| replacement | |||||
|
92075
|
92075
92161-1720 DAMPER,MAGNETIC SWITC |
92161-1720 |
from US $12.28 |
||
|
92081
|
92081
92081-110 SPRING |
92081-110 |
from US $3.48 |
||
|
92122
|
92122
92122004 ROLLER |
92122004 |
from US $7.44 |
||
|
92150
|
92150
92150-1073 BOLT,STARTER MOTOR |
92150-1073 |
from US $8.57 |
||
