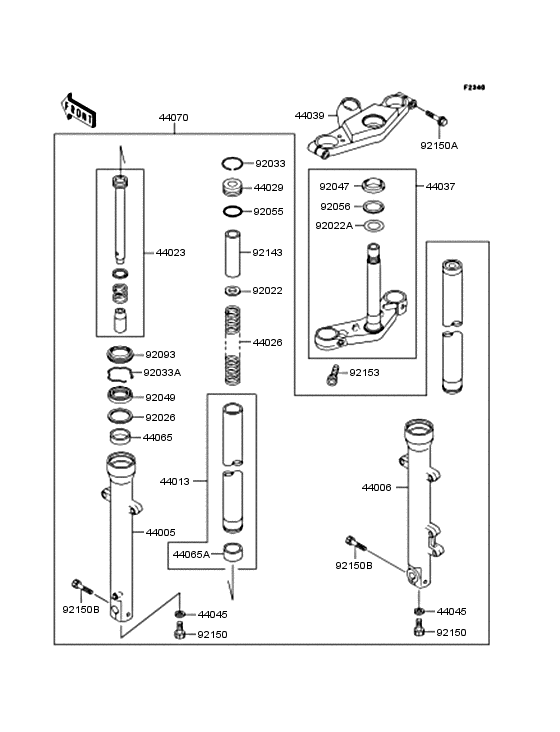

Front fork Diagram Kawasaki EX400 EX-4
- Year
- 1995
- Colour
- Metallic Nocturne Blue (C6)
- Model code
- EX400-B2
- Sales region
- Japan
- Engine Capacity
- 400
- Frame
- EX400B 002001 -
- Engine
- EX400AE 003501 -
- Model
- EX400 EX-4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44005
|
44005
44005-1330 PIPE-LEFT FORK OUTERチユ-ブ(レフトフオ-クアウタ) |
44005-1330 |
from US $358.64 |
||
|
44006
|
44006
44006-1330 PIPE-RIGHT FORK OUTERチユ-ブ(ライトフオ-クアウタ) |
44006-1330 |
from US $358.64 |
||
|
44013
|
44013
44013-1394 PIPE-FORK INNERパイプ(フオ-クインナ) |
44013-1394 |
from US $255.55 |
||
|
44023
|
44023
44023-1092 CYLINDER-COMP-FORKシリンダコンプ(フオ-ク) |
44023-1092 |
from US $104.27 |
||
|
44026
|
44026
44026-1555 SPRING-FRONT FORKスプリング(フロントフオ-ク) |
44026-1555 |
from US $55.20 |
||
|
44029
|
44029
44029-1127 SEAT-FORK SPRINGシ-ト(フオ-クスプリング) |
44029-1127 |
from US $30.52 |
||
|
44037
|
44037
44037-1319 Holder-fork underホルダ(フオ-クアンダ) |
44037-1319 |
from US $312.18 |
||
|
44039
|
44039
44039-1246-10 HOLDER-FORK UPPER,BLAホルダ(フオ-クアツパ)，ブラツク |
44039-1246-10 |
from US $227.96 |
||
|
44045
|
44045
44045051 GASKET,FORK CYL BOLTガスケツト，フオ-ク シリンダ ボルト |
44045051 |
from US $4.59 |
||
|
44065A
|
44065A
44065-1110 BUSHING-FRONT FORK,INブツシング(フロントフオ-ク)，インナ パイプ |
44065-1110 |
from US $17.74 |
||
|
44065
|
44065
44065-1109 BUSHING-FRONT FORKブツシング(フロントフオ-ク) |
44065-1109 |
from US $17.42 |
||
|
44070
|
44070
44070-5174 DAMPER-ASSY,FORKダンパアツシ，フオ-ク |
44070-5174 |
from US $1,364.08 |
||
| replacements | |||||
|
44070
|
44070
44070-1287 DAMPER-ASSY,FORK,RHダンパアツシ，フオ-ク |
44070-1287 |
from US $752.72 |
||
|
44070
|
44070
44070-1286 DAMPER-ASSY,FORK,LHダンパアツシ，フオ-ク |
44070-1286 |
from US $752.72 |
||
|
92022
|
92022
92022-1879 WASHERワツシヤ; KX85-A3/B3 |
92022-1879 |
from US $3.01 |
||
|
92022A
|
92022A
92022-231 WASHER,PLAINワツシヤ，30.5X50X0.6 |
92022-231 |
from US $2.85 |
||
|
92026
|
92026
92026-1443 SPACER,FORKスペ-サ，フオ-ク |
92026-1443 |
from US $5.54 |
||
|
92033
|
92033
92033-1236 RING-SNAPリング(スナツプ) |
92033-1236 |
from US $4.75 |
||
|
92033A
|
92033A
92033-1286 RING-SNAPリング(スナツプ) |
92033-1286 |
from US $5.23 |
||
|
92047
|
92047
92047-012 CONE,STEERING STEMベアリング コ-ン |
92047-012 |
US $12.36 |
||
| replacement | |||||
|
92047
|
92047
92048-0033 Race,steering Stem Beベアリング コ-ン |
92048-0033 |
from US $12.36 |
||
|
92049
|
92049
92049-1421 SEAL-OIL,FORK OUTERシ-ル(オイル)，フオ-ク アウタ |
92049-1421 |
from US $14.26 |
||
|
92055
|
92055
92055-1384 RING-O,FORK SPRING SEリング(0)，フオ-ク スプリング シ-ト |
92055-1384 |
from US $3.01 |
||
|
92056
|
92056
92056-003 OIL SEAL,STEERING STMオイル シ-ル |
92056-003 |
from US $5.70 |
||
|
92093
|
92093
92093-1367 SEAL,FORK OUTERシ-ル，フオ-ク アウタ |
92093-1367 |
from US $13.94 |
||
|
92143
|
92143
92143-1682 COLLAR,FORK,L=100カラ-，フオ-ク，L=100 |
92143-1682 |
from US $6.65 |
||
|
92150
|
92150
92150-1432 Boltボルト |
92150-1432 |
from US $6.34 |
||
|
92150A
|
92150A
92150-1610 Boltボルト |
92150-1610 |
from US $5.39 |
||
|
92150B
|
92150B
92150-1613 BOLT-SOCKET,8X35,BLACボルト，ソケツト，8MM; オプシヨン |
92150-1613 |
US $3.67 |
||
| replacement | |||||
|
92150B
|
92150B
120CB0835 BOLT-SOCKET,8X35,BLACボルト，ソケツト，8MM; オプシヨン |
120CB0835 |
from US $1.27 |
||
|
92153
|
92153
92153-0301 BOLT,SOCKET,10X25ボルト，ソケツト，10X25 |
92153-0301 |
from US $1.43 |
||
