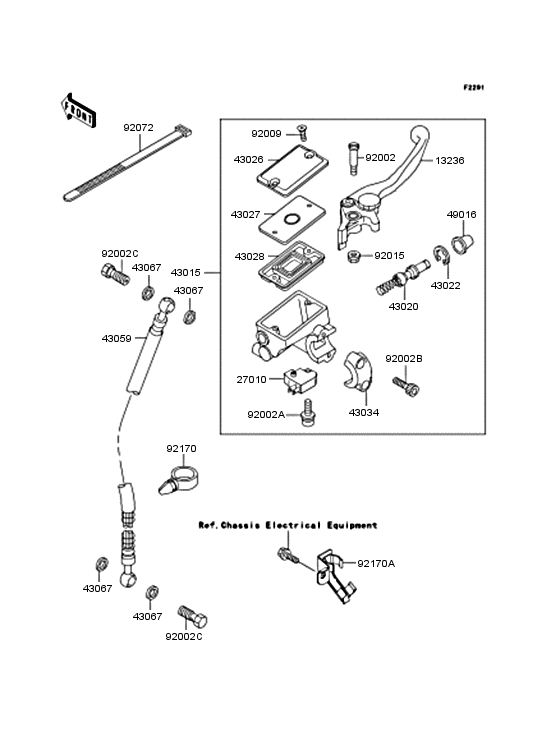

Front master cylinder Diagram Kawasaki EX400 EX-4
- Year
- 1995
- Colour
- Metallic Nocturne Blue (C6)
- Model code
- EX400-B2
- Sales region
- Japan
- Engine Capacity
- 400
- Frame
- EX400B 002001 -
- Engine
- EX400AE 003501 -
- Model
- EX400 EX-4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13236
|
13236
13236-1185 LEVER-COMP,FRONT BRAKEレバ-コンプ，フロント ブレ-キ |
13236-1185 |
from US $50.86 |
||
|
27010
|
27010
27010-1170
SWITCH,BRAKE
スイツチ，ブレ-キ |
27010-1170 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-0025 SWITCH,BRAKEスイツチ，ブレ-キ |
27010-0025 |
from US $23.19 |
||
|
43015
|
43015
43015-1479 CYLINDER-ASSY-MASTER,シリンダアツシ(マスタ)，FR |
43015-1479 |
US $427.86 |
||
| replacement | |||||
|
43015
|
43015
43015-5014 CYLINDER-ASSY-MASTER,シリンダアツシ(マスタ)，FR |
43015-5014 |
from US $307.93 |
||
|
43020
|
43020
43020-1056 PISTON-COMP-BRAKE,FRピストンコンプ(ブレ-キ)，FR |
43020-1056 |
from US $45.15 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPERストツパ(ブレ-キ)，ピストン |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1076 CAP-BRAKEキヤツプ(ブレ-キ) |
43026-1076 |
from US $28.57 |
||
|
43027
|
43027
43027-1055 PLATE-DIAPHRAGMプレ-ト(ダイアフラム) |
43027-1055 |
from US $7.08 |
||
|
43028
|
43028
43028-1058 DIAPHRAGM,MASTER CYLIダイアフラム |
43028-1058 |
from US $16.16 |
||
|
43034
|
43034
43034-1053 HOLDER-BRAKE,MASTER Cホルダ(ブレ-キ) |
43034-1053 |
from US $24.24 |
||
|
43059
|
43059
43059-1860 HOSE-BRAKE,FRホ-ス(ブレ-キ)，FR |
43059-1860 |
from US $125.36 |
||
|
43067
|
43067
43067-001
WASHER-SEAL,10.1X14.5
ワツシヤ-(オイル)，10.5X15X1.5 |
43067-001 |
— | ||
| replacement | |||||
|
43067
|
43067
49091-0001 WASHER-SEAL,10.1X14.5ワツシヤ-(オイル)，10.5X15X1.5 |
49091-0001 |
US $2.81 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDERカバ-(シ-ル) |
49016-1044 |
from US $10.61 |
||
|
92002C
|
92002C
92002-1907 BOLT,OIL,L=23ボルト，オイル，L=23; オプシヨン |
92002-1907 |
from US $9.54 |
||
| replacement | |||||
|
92002C
|
92002C
92153-0627 BOLT,OIL,L=23ボルト，オイル，L=23; オプシヨン |
92153-0627 |
from US $2.85 |
||
|
92002
|
92002
92002-1322 BOLT,LEVER SETボルト，レバ- セツト |
92002-1322 |
from US $7.13 |
||
|
92002A
|
92002A
92002-1323 Boltボルト，スクリユ，4X12; オプシヨン |
92002-1323 |
from US $2.53 |
||
|
92002B
|
92002B
92002-1324 BOLT,SOCKET,6X20ボルト，ソケツト，6X20 |
92002-1324 |
from US $6.02 |
||
| replacement | |||||
|
92002B
|
92002B
92153-0417 BOLT,SOCKET,6X20ボルト，ソケツト，6X20 |
92153-0417 |
from US $3.80 |
||
|
92009
|
92009
92009-1458 SCREW,4MMスクリユ-，4MM |
92009-1458 |
from US $3.02 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMナツト，フランジ，6MM |
92015-1233 |
from US $3.90 |
||
|
92072
|
92072
92072-1195 BAND,L=185バンド，L=185; オプシヨン |
92072-1195 |
from US $2.07 |
||
|
92170
|
92170
92170-1067 Clamp,Hoseクランプ |
92170-1067 |
from US $5.07 |
||
|
92170A
|
92170A
92170-1499 Clamp,Hoseクランプ，ホ-ス |
92170-1499 |
from US $8.55 |
||
