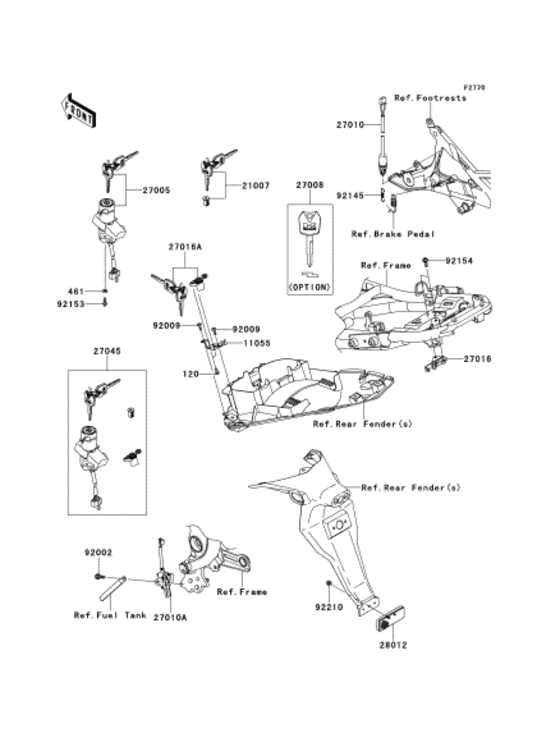

Ignition switch Diagram Kawasaki EX400 Ninja 400R
- Year
- 2011
- Colour
- Kmt.metallic Spark Black (15Z)
- Model code
- EX400CBF
- Sales region
- Japan
- Engine Capacity
- 400
- Frame
- ER400B A00075 - A04387
- Engine
- ER400BE A00001 -
- Model
- EX400 Ninja 400R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CB0512 BOLT-SOCKET,5X12ボルト(ロツカクアナ)，5X12 |
120CB0512 |
from US $0.95 |
||
|
461
|
461
461DA0600 WASHER-SPRING,6MMバネザガネ，6MM |
461DA0600 |
from US $0.55 |
||
|
11055
|
11055
11055-0590 BRACKET,SEAT LOCKブラケット，シート ロツク |
11055-0590 |
from US $6.18 |
||
|
21007
|
21007
21007-5057 ROTOR,LOCK,TANK CAPロ-タ，ロツク，タンク キヤツプ |
21007-5057 |
from US $56.40 |
||
|
27005
|
27005
27005-5141 SWITCH-ASSY-IGNITIONスイツチアツシ(イグニシヨン) |
27005-5141 |
from US $184.40 |
||
|
27008
|
27008
27008-0030 KEY-LOCK,BLANKキ-(ロツク)，ブランク |
27008-0030 |
from US $12.83 |
||
| replacement | |||||
|
27008
|
27008
27008-0618 KEY-LOCK,BLANKキ-(ロツク)，ブランク |
27008-0618 |
from US $12.83 |
||
|
27010
|
27010
27010-0095 SWITCH,REAR BRAKEスイツチ，リヤ ブレーキ |
27010-0095 |
from US $19.01 |
||
|
27010A
|
27010A
27010-0097 SWITCH,SIDE STANDスイツチ，サイド スタンド |
27010-0097 |
from US $82.13 |
||
|
27016
|
27016
27016-0008 LOCK-ASSY,SEAT STRIKEロツクアツシ，シート ストライカ |
27016-0008 |
from US $10.30 |
||
|
27016A
|
27016A
27016-5309 LOCK-ASSY,SEATロツクアツシ，シート |
27016-5309 |
from US $66.27 |
||
|
27045
|
27045
27045-5360 SWITCH-ASSYスイツチアツシ |
27045-5360 |
from US $320.89 |
||
|
28012
|
28012
28012-1077 Reflector-reflexリフレクタ(リフレツクス) |
28012-1077 |
from US $19.66 |
||
|
92002
|
92002
92002-1582 BOLT,6X25ボルト，6X25 |
92002-1582 |
from US $2.85 |
||
|
92009
|
92009
92009-3845 SCREW,6X14スクリユ-，6X14 |
92009-3845 |
from US $0.79 |
||
|
92145
|
92145
92145-0091 SPRING,REAR BRAKE SWIスプリング，リヤ ブレーキ スイツチ |
92145-0091 |
from US $1.90 |
||
|
92153
|
92153
92153-0967 BOLT,TORX,6X16ボルト，トルクス，6X16 |
92153-0967 |
from US $1.11 |
||
|
92154
|
92154
92154-1050 BOLT,FLANGED,6X12ボルト，フランジ，6X12 |
92154-1050 |
from US $0.79 |
||
|
92210
|
92210
92210-0007 NUT,FLANGED,5MMナツト，フランジ，5MM |
92210-0007 |
from US $1.61 |
||
