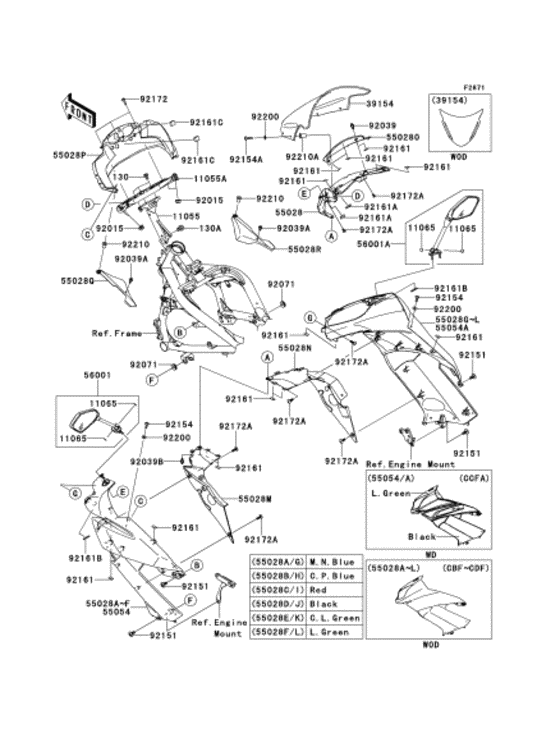

カウリング (アッパー; CBF‾CDF) Diagram Kawasaki EX400 Ninja 400R
- Year
- 2011
- Colour
- Kmt.metallic Spark Black (15Z)
- Model code
- EX400CBF
- Sales region
- Japan
- Engine Capacity
- 400
- Frame
- ER400B A00075 - A04387
- Engine
- ER400BE A00001 -
- Model
- EX400 Ninja 400R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0612 BOLT-FLANGED,6X12ボルト(ツバツキ)，6X12 |
130BB0612 |
from US $1.43 |
||
|
130A
|
130A
130BB0812 BOLT-FLANGEDボルト(ツバツキ)，8X12 |
130BB0812 |
from US $1.05 |
||
|
92154
|
92154
92154-0182 BOLT,SOCKET,5X16ボルト，ソケツト，5X16 |
92154-0182 |
from US $1.11 |
||
|
92154A
|
92154A
92154-0216 BOLT,SOCKET,5X20ボルト，ソケツト，5X20 |
92154-0216 |
from US $0.95 |
||
|
92161
|
92161
92161-0726 DAMPERダンパ |
92161-0726 |
from US $1.43 |
||
|
92161A
|
92161A
92161-0731 DAMPER,UPP CNT COWLINダンパ，アツパ センタ カウリング |
92161-0731 |
from US $2.06 |
||
|
92161B
|
92161B
92161-0740 DAMPER,UPP SIDE COWLIダンパ，アツパ サイド カウリング |
92161-0740 |
from US $1.90 |
||
|
92161C
|
92161C
92161-0835 DAMPER,20X20X10ダンパ，20X20X10 |
92161-0835 |
from US $2.06 |
||
|
92172
|
92172
92172-0004 SCREW,6X14スクリユ-，6X14 |
92172-0004 |
from US $1.27 |
||
|
92172A
|
92172A
92172-0427 SCREW,TAPPING,5X16スクリユ-，タツピング，5X16 |
92172-0427 |
from US $1.11 |
||
|
92200
|
92200
92200-0006 WASHER,NYLONE,5.3X11.ワツシヤ，ナイロン，5.3X11.5X0.5 |
92200-0006 |
from US $1.25 |
||
|
92210
|
92210
92210-0498 NUT,5MMナツト，ウエル，5MM |
92210-0498 |
US $5.45 |
||
| replacement | |||||
|
92210
|
92210
92015-1757 NUT,5MMナツト，ウエル，5MM |
92015-1757 |
from US $4.25 |
||
|
92210A
|
92210A
92210-1227 NUT,POP,5MMナツト，ポツプ，5MM |
92210-1227 |
from US $1.91 |
||
| replacement | |||||
|
92210A
|
92210A
92210-0012 NUT,POP,5MMナツト，ポツプ，5MM |
92210-0012 |
from US $1.24 |
||
