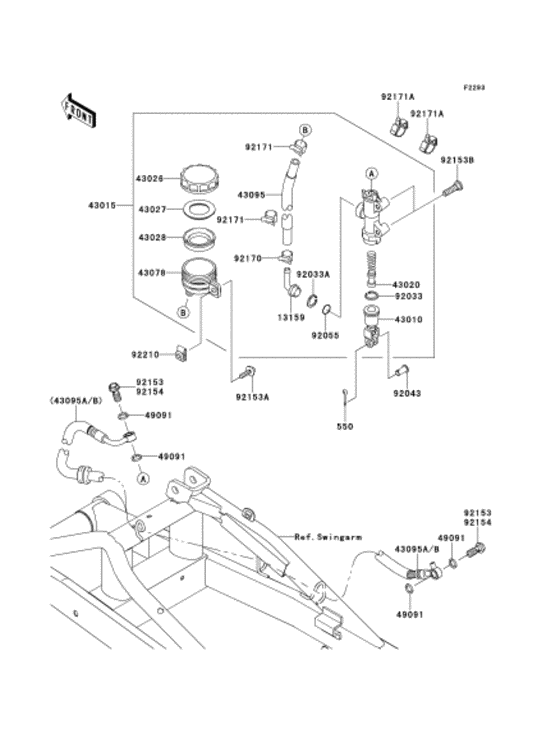

Rear master cylinder Diagram Kawasaki EX400 Ninja 400R
- Year
- 2011
- Colour
- Kmt.metallic Spark Black (15Z)
- Model code
- EX400CBF
- Sales region
- Japan
- Engine Capacity
- 400
- Frame
- ER400B A00075 - A04387
- Engine
- ER400BE A00001 -
- Model
- EX400 Ninja 400R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
550
|
550
550AA2015 PIN-COTTER,2.0X15ワリ ピン，2.0X15 |
550AA2015 |
from US $0.63 |
||
|
13159
|
13159
13159-1056 CONNECTORコネクタ |
13159-1056 |
from US $9.98 |
||
|
43010
|
43010
43010-1062 ROD-ASSY-BRAKEロツドアツシ(ブレ-キ) |
43010-1062 |
from US $34.86 |
||
|
43015
|
43015
43015-0122 CYLINDER-ASSY-MASTER,シリンダアツシ(マスタ)，RR |
43015-0122 |
from US $188.76 |
||
|
43020
|
43020
43020-1094 PISTON-COMP-BRAKEピストンコンプ(ブレ-キ) |
43020-1094 |
from US $42.04 |
||
|
43026
|
43026
43026-1051 CAP-BRAKEキヤツプ(ブレ-キ) |
43026-1051 |
from US $23.19 |
||
|
43027
|
43027
43027-1051 PLATE-DIAPHRAGMプレ-ト(ダイアフラム) |
43027-1051 |
from US $4.59 |
||
|
43028
|
43028
43028-1057 DIAPHRAGMダイアフラム |
43028-1057 |
from US $13.94 |
||
|
43078
|
43078
43078-1082 RESERVOIR,RR MASTER Cリザ-バ，RR マスタ シリンダ |
43078-1082 |
from US $19.01 |
||
|
43095
|
43095
43095-0193 HOSE-BRAKE,RR MASTERホ-ス(ブレ-キ)，リヤ マスタ シリンダ |
43095-0193 |
from US $12.36 |
||
|
43095A
|
43095A
43095-0413 HOSE-BRAKE,RR,L=712ホ-ス(ブレ-キ)，RR，L=712 |
43095-0413 |
from US $52.81 |
||
|
43095B
|
43095B
43095-0758 ホ-スRR，L=712; ブレ-キ ホ-ス(ブレ-キ)，RR，L=712 |
43095-0758 |
US $52.81 |
||
|
49091
|
49091
49091-0001 WASHER-SEAL,10.1X14.5ワツシヤ(シ-ル)，10.1X14.5X1.5 |
49091-0001 |
US $2.81 |
||
|
92033
|
92033
92033-0079 RING-SNAP,20.9X24.6X1リング(スナツプ)，20.9X24.6X1.2 |
92033-0079 |
from US $3.80 |
||
|
92033A
|
92033A
92033-1186 RING-SNAP,20.5MMリング(スナツプ)，20.5MM |
92033-1186 |
from US $3.01 |
||
|
92043
|
92043
92043-0182 PINピン |
92043-0182 |
from US $1.58 |
||
|
92055
|
92055
92055-0741 RING-O,14.8X2.4リング(0)，14.8X2.4 |
92055-0741 |
from US $1.90 |
||
|
92153
|
92153
92153-0627 BOLT,OIL,L=23ボルト，オイル，L=23 |
92153-0627 |
from US $2.85 |
||
|
92153A
|
92153A
92153-0725 BOLT,6X22ボルト，6X22 |
92153-0725 |
from US $0.95 |
||
|
92153B
|
92153B
92153-1624 BOLT,SOCKET,8X30ボルト，ソケツト，8X30 |
92153-1624 |
from US $1.90 |
||
|
92154
|
92154
92154-0732 BOLT,FLANGED,10X23ボルト，フランジ，10X23 |
92154-0732 |
from US $2.53 |
||
|
92170
|
92170
92170-1091 Clamp,Hoseクランプ，ホ-ス |
92170-1091 |
from US $3.17 |
||
|
92171
|
92171
92171-0463 Clamp,Hoseクランプ，ホース |
92171-0463 |
from US $3.48 |
||
|
92171A
|
92171A
92171-0955 Clampクランプ |
92171-0955 |
from US $2.69 |
||
|
92210
|
92210
92210-0474 NUT,6MMナツト，6MM |
92210-0474 |
from US $2.69 |
