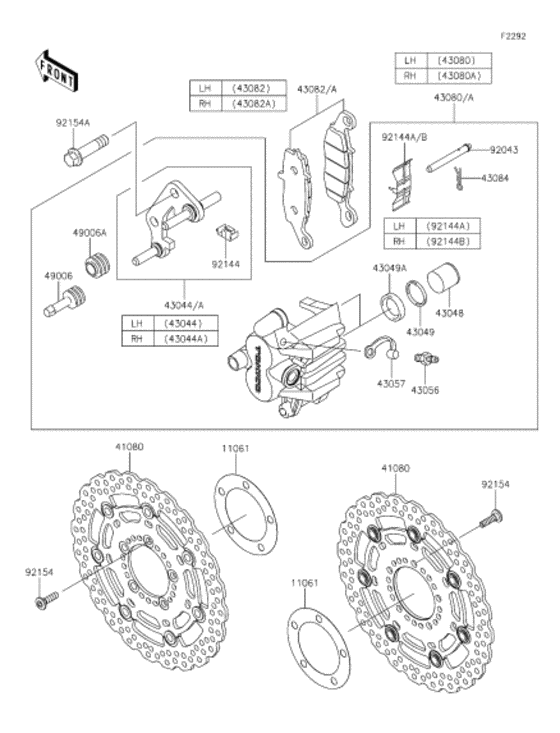

Front brake Diagram Kawasaki EX400 Ninja 400R
- Year
- 2014
- Colour
- Metallic Moondust Gray (25X)
- Model code
- EX400EEF
- Sales region
- Japan
- Engine Capacity
- 400
- Frame
- EX400E A08591 -
- Engine
- ER400BE A00001 -
- Model
- EX400 Ninja 400R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061
|
11061
11061-0029 GASKET,DISC PLATEガスケツト，デイスク プレ-ト |
11061-0029 |
from US $12.20 |
||
|
41080
|
41080
41080-0161-32L DISC,FR,HOUSING BLK+Dデイスク，FR，ブラツク+ブラツク |
41080-0161-32L |
from US $383.33 |
||
|
43044
|
43044
43044-1115 HOLDER-COMP-CALIPERホルダコンプ(キヤリパ)，FR，LH |
43044-1115 |
from US $113.10 |
||
|
43044A
|
43044A
43044-1116 HOLDER-COMP-CALIPER,Fホルダコンプ(キヤリパ)，FR，RH |
43044-1116 |
from US $109.66 |
||
|
43048
|
43048
43048-1052 PISTON-CALIPERピストン(キヤリパ) |
43048-1052 |
from US $42.79 |
||
|
43049
|
43049
43049-1055 PACKING,PISTONパツキング，ピストン |
43049-1055 |
from US $9.56 |
||
|
43049A
|
43049A
43049-1096 PACKING,PISTON SEALPacking, piston seal パツキング，ピストン シ-ル |
43049-1096 |
from US $9.56 |
||
|
43056
|
43056
43056-0007 BREATHER-BRAKEブリ-ザ(ブレ-キ) |
43056-0007 |
from US $14.26 |
||
|
43057
|
43057
43057-003 CAP,BREEDERキヤツプ(ブリ-ザ) |
43057-003 |
from US $3.16 |
||
|
43080
|
43080
43080-0076-DJ CALIPER-SUB-ASSY,FR,Lキヤリパサブアツシ，FR，LH，ブラツク |
43080-0076-DJ |
from US $284.59 |
||
|
43080A
|
43080A
43080-0077-DJ CALIPER-SUB-ASSY,FR,Rキヤリパサブアツシ，FR，RH，ブラツク |
43080-0077-DJ |
from US $284.59 |
||
|
43082
|
43082
43082-0009 PAD-ASSY-BRAKEパツドアツシ(ブレ-キ)，LH |
43082-0009 |
from US $81.23 |
||
|
43082A
|
43082A
43082-0010 PAD-ASSY-BRAKEパツドアツシ(ブレ-キ)，RH |
43082-0010 |
from US $81.23 |
||
|
43084
|
43084
43084003 CLIPクリツプ(パツド) |
43084003 |
from US $3.17 |
||
|
49006
|
49006
49006-1054 BOOT,CALIPERブ-ツ，キヤリパ |
49006-1054 |
from US $8.55 |
||
|
49006A
|
49006A
49006-1095 BOOT,CALIPERブ-ツ，キヤリパ |
49006-1095 |
from US $4.91 |
||
|
92043
|
92043
92043-1489 PIN,PADピン，パツド |
92043-1489 |
from US $4.80 |
||
|
92144
|
92144
92144-1831 SPRING,STOPPERスプリング，ストツパー |
92144-1831 |
from US $4.09 |
||
|
92144A
|
92144A
92144-1832 SPRING,PADスプリング，パツド，LH |
92144-1832 |
from US $6.97 |
||
|
92144B
|
92144B
92144-1844 SPRING,PAD,RHスプリング，パツド，RH |
92144-1844 |
from US $6.97 |
||
|
92154
|
92154
92154-0844 BOLT,SOCKET,8X30ボルト，ソケツト，8X30 |
92154-0844 |
from US $2.06 |
||
|
92154A
|
92154A
92154-0845 BOLT,FLANGED,10X41ボルト，フランジ，10X41 |
92154-0845 |
from US $3.96 |
