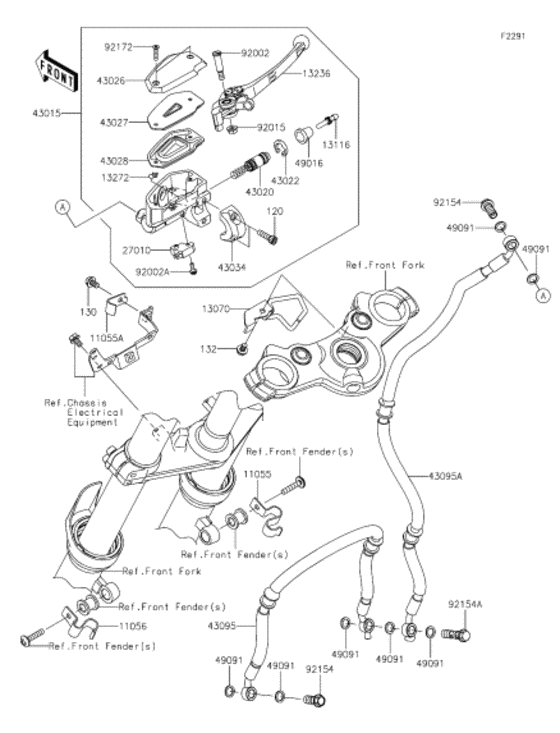

Front master cylinder Diagram Kawasaki EX400 Ninja 400R
- Year
- 2014
- Colour
- Metallic Moondust Gray (25X)
- Model code
- EX400EEF
- Sales region
- Japan
- Engine Capacity
- 400
- Frame
- EX400E A08591 -
- Engine
- ER400BE A00001 -
- Model
- EX400 Ninja 400R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CB0622 BOLT,SOCKET,6X22ボルト(ロツカクアナ)，6X22 |
120CB0622 |
from US $3.17 |
||
|
130
|
130
130BA0610 BOLT-FLANGED,6X10ボルト(ツバツキ)，6X10 |
130BA0610 |
from US $0.79 |
||
|
132
|
132
132BA0610 BOLT-FLANGED-SMALL,6Xボルト(コガタツバツキ)，6X10 |
132BA0610 |
from US $0.79 |
||
|
11055
|
11055
11055-1116 BRACKETブラケット |
11055-1116 |
from US $2.38 |
||
|
11055A
|
11055A
11055-1562 BRACKETブラケット |
11055-1562 |
from US $2.85 |
||
|
11056
|
11056
11056-1083 BRACKETブラケット |
11056-1083 |
from US $2.38 |
||
|
13070
|
13070
13070-0766 ガイドガイド |
13070-0766 |
US $7.44 |
||
|
13116
|
13116
13116-0032 ROD-PUSHロツド(プツシユ) |
13116-0032 |
from US $13.94 |
||
|
13236
|
13236
13236-0169 LEVER-COMP,FRONT BRAKEレバ-コンプ，フロント ブレーキ |
13236-0169 |
from US $51.16 |
||
|
13272
|
13272
13272-0573 PLATEプレ-ト |
13272-0573 |
from US $3.96 |
||
|
27010
|
27010
27010-0025 SWITCH,BRAKEスイツチ，ブレーキ |
27010-0025 |
from US $23.19 |
||
|
43015
|
43015
43015-0118 CYLINDER-ASSY-MASTER,シリンダアツシ(マスタ)，FR |
43015-0118 |
from US $274.43 |
||
| replacement | |||||
|
43015
|
43015
43015-0709 Cylinder-Assy-Master,シリンダアツシ(マスタ)，FR |
43015-0709 |
US $500.67 |
||
|
43020
|
43020
43020-0015 PISTON-COMP-BRAKEピストンコンプ(ブレ-キ) |
43020-0015 |
from US $42.04 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPERストツパ(ブレ-キ)，ピストン |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-0019 CAP-BRAKEキヤツプ(ブレ-キ) |
43026-0019 |
from US $28.57 |
||
|
43027
|
43027
43027-0008 PLATE-DIAPHRAGMプレ-ト(ダイアフラム) |
43027-0008 |
from US $5.86 |
||
|
43028
|
43028
43028-0015 DIAPHRAGMダイアフラム |
43028-0015 |
from US $22.44 |
||
|
43034
|
43034
43034-0050 HOLDER-BRAKE,MASTER-Cホルダ(ブレ-キ)，マスタシリンダ |
43034-0050 |
from US $27.83 |
||
|
43095
|
43095
43095-0626 HOSE-BRAKE,FR,L=545ホ-ス(ブレ-キ)，FR，L=545 |
43095-0626 |
from US $52.36 |
||
|
43095A
|
43095A
43095-0636 HOSE-BRAKE,M/C-CALIPEホ-ス(ブレ-キ)，マスタシリンダ-キヤリパ |
43095-0636 |
from US $56.10 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDERカバ-(シ-ル) |
49016-1044 |
from US $10.61 |
||
|
49091
|
49091
49091-0001 WASHER-SEAL,10.1X14.5ワツシヤ(シ-ル)，10.1X14.5X1.5 |
49091-0001 |
US $2.81 |
||
|
92002
|
92002
92002-1322 BOLT,LEVER SETボルト，レバ- セツト，ブラツク |
92002-1322 |
from US $7.13 |
||
|
92002A
|
92002A
92002-1323 Boltボルト，スクリユ，4X12 |
92002-1323 |
from US $2.53 |
||
|
92015
|
92015
92015-1528 NUT,FLANGED,6MMナツト，フランジ，6MM |
92015-1528 |
from US $3.17 |
||
|
92154
|
92154
92154-0732 BOLT,FLANGED,10X23ボルト，フランジ，10X23 |
92154-0732 |
from US $2.53 |
||
|
92154A
|
92154A
92154-0733 BOLT,FLANGED,10X37ボルト，フランジ，10X37 |
92154-0733 |
from US $5.23 |
||
|
92172
|
92172
92172-0320 SCREW,4X20スクリユ-，4X20 |
92172-0320 |
from US $1.90 |
||
