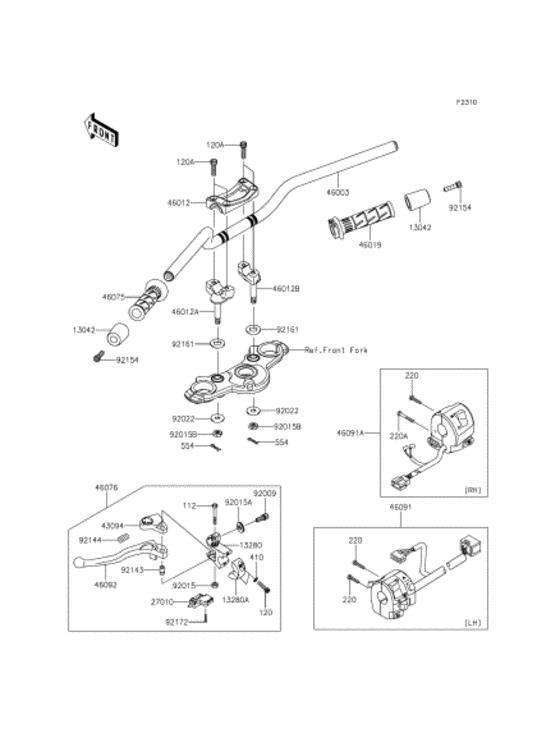

Handlebar Diagram Kawasaki EX400 Ninja 400R ABS
- Year
- 2014
- Colour
- Ebony (H8)
- Model code
- EX400FEFB
- Sales region
- Japan
- Engine Capacity
- 400
- Frame
- EX400E A10592 -
- Model
- EX400 Ninja 400R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112BB0645 BOLT-UPSET,6X45ボルト(アプセツト)，6X45 |
112BB0645 |
from US $1.74 |
||
|
120A
|
120A
120CC0830 BOLT-SOCKET,8X30ボルト(ロツカクアナ)，8X30 |
120CC0830 |
from US $1.90 |
||
|
120
|
120
120CB0625 BOLT-SOCKETボルト(ロツカクアナ)，6X25 |
120CB0625 |
from US $1.27 |
||
|
220
|
220
220AB0525 SCREW-PAN-CROSナベコネジ(+ジアナ)，5X25 |
220AB0525 |
from US $0.95 |
||
|
220A
|
220A
220AB0540 SCREW-PAN-CROSS,5X40ナベコネジ(+ジアナ)，5X40 |
220AB0540 |
from US $0.95 |
||
|
410
|
410
410AB0600 WASHER-PLAIN-SMALL,6Mヒラザガネ(コガタマル)，6MM |
410AB0600 |
from US $0.79 |
||
|
554
|
554
554DB0800 PIN-SNAPスナツプ ピン |
554DB0800 |
from US $0.63 |
||
|
13042
|
13042
13042-5002 WEIGHT,HANDLEウエイト，ハンドル |
13042-5002 |
from US $31.72 |
||
|
13280
|
13280
13280-0306 HOLDER,CLUTCH LEVERホルダ，クラツチ レバー |
13280-0306 |
from US $33.36 |
||
|
13280A
|
13280A
13280-0319 HOLDER,CLUTCH LEVERホルダ，クラツチ レバー |
13280-0319 |
from US $22.44 |
||
|
27010
|
27010
27010-1094 SWITCH,CLUTCHスイツチ，クラツチ |
27010-1094 |
from US $21.07 |
||
|
43094
|
43094
43094-0556 ADJUSTERアジヤスタ，クラツチ レバー |
43094-0556 |
from US $24.38 |
||
|
46003
|
46003
46003-0588-26M HANDLE,F.M.GRAYハンドル，グレ- |
46003-0588-26M |
from US $96.19 |
||
|
46012
|
46012
46012-0059 HOLDER-HANDLE,UPPホルダ(ハンドル)，UPP |
46012-0059 |
from US $46.53 |
||
|
46012A
|
46012A
46012-0060 HOLDER-HANDLE,LWR,LHホルダ(ハンドル)，LWR，LH |
46012-0060 |
from US $22.44 |
||
|
46012B
|
46012B
46012-0061 HOLDER-HANDLE,LWR,RHホルダ(ハンドル)，LWR，RH |
46012-0061 |
from US $22.44 |
||
|
46019
|
46019
46019-0060 GRIP-ASSY,THROTTLEグリツプアツシ，スロツトル |
46019-0060 |
from US $19.96 |
||
|
46075
|
46075
46075-0564 GRIP,HANDLE,LHグリツプ，ハンドル，LH |
46075-0564 |
from US $11.72 |
||
|
46076
|
46076
46076-0082 LEVER-ASSY-GRIP,LHレバ-アツシ(グリツプ)，LH |
46076-0082 |
from US $103.82 |
||
| replacement | |||||
|
46076
|
46076
46076-0138 LEVER-ASSY-GRIP,LHレバ-アツシ(グリツプ)，LH |
46076-0138 |
from US $115.08 |
||
|
46091
|
46091
46091-0214
HOUSING-ASSY-CONTROL, LH
ハウジングアツシ(コントロ-ル)，LH |
46091-0214 |
— | ||
| replacement | |||||
|
46091
|
46091
46091-0406 Housing-Assy-Control, Lhハウジングアツシ(コントロ-ル)，LH |
46091-0406 |
from US $147.14 |
||
|
46091A
|
46091A
46091-0246 HOUSING-ASSY-CONTROL, RHハウジングアツシ(コントロ-ル)，RH |
46091-0246 |
US $129.55 |
||
| replacement | |||||
|
46091A
|
46091A
46091-0480 Housing-Assy-Control, Rhハウジングアツシ(コントロ-ル)，RH |
46091-0480 |
from US $137.17 |
||
|
46092
|
46092
46092-0031 LEVER-GRIP,CLUTCHレバ-(グリツプ)，クラツチ |
46092-0031 |
from US $24.83 |
||
|
92009
|
92009
92009-1134 SCREW,CABLE ADJUST,8スクリユ-，ケ-ブル アジヤスト，8MM，ブラツク |
92009-1134 |
from US $9.19 |
||
|
92015
|
92015
92015-1191
NUT,LOCK,6MM
ナツト，ロツク，6MM |
92015-1191 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0006 NUT,LOCK,6MMナツト，ロツク，6MM |
92210-0006 |
from US $1.27 |
||
|
92015A
|
92015A
92015-1197 NUT,CABLE ADJUST LOCKナツト，ケ-ブル アジヤスト ロツク，8MM，ブラツク |
92015-1197 |
from US $6.34 |
||
|
92015B
|
92015B
92015-1962 NUTナツト，ロツク，10MM |
92015-1962 |
US $7.74 |
||
| replacement | |||||
|
92015B
|
92015B
92210-1184 NUTナツト，ロツク，10MM |
92210-1184 |
from US $4.09 |
||
|
92022
|
92022
92022-1088 WASHER,10.2X28X2ワツシヤ，10.2X28X2 |
92022-1088 |
from US $2.85 |
||
|
92143
|
92143
92143-1379 COLLARカラ- |
92143-1379 |
from US $6.34 |
||
|
92144
|
92144
92144-1467 SPRINGスプリング |
92144-1467 |
from US $3.96 |
||
|
92154
|
92154
92154-0440 BOLT,SOCKET,8X30ボルト，ソケツト，8X30 |
92154-0440 |
from US $1.74 |
||
|
92161
|
92161
92161-0037 DAMPERダンパ |
92161-0037 |
from US $1.11 |
||
|
92172
|
92172
92172-0183 SCREW,3X16スクリユ-，3X16 |
92172-0183 |
from US $0.95 |
||
