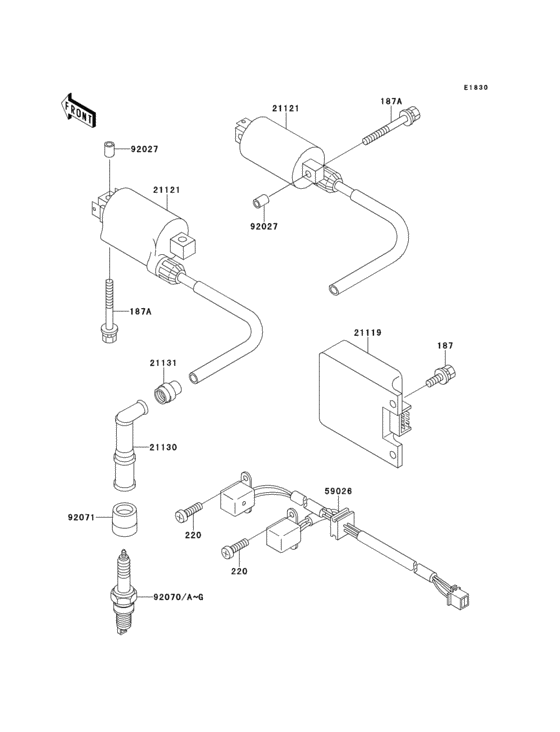

Ignition System Diagram Kawasaki EX500 GPZ500
- Year
- 1991
- Colour
- Candy Cardinal Red / Pearl Alpine White (GP)
- Model code
- EX500-A5
- Sales region
- Europe (General)
- Engine Capacity
- 500
- Model
- EX500 GPZ500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
187
|
187
187B0618
BOLT-UPSET-WSP
|
187B0618 |
— | ||
| replacement | |||||
|
187
|
187
187AA0618
BOLT-UPSET-WSP
|
187AA0618 |
— | ||
|
187A
|
187A
187G0625 BOLT-UPSET-WSP |
187G0625 |
from US $1.43 |
||
| replacement | |||||
|
187A
|
187A
187BA0625 BOLT-UPSET-WSP |
187BA0625 |
from US $1.24 |
||
|
220
|
220
220B0510
SCREW-PAN-CROSS,5X10
|
220B0510 |
— | ||
| replacement | |||||
|
220
|
220
220AA0510 SCREW-PAN-CROSS,5X10 |
220AA0510 |
from US $0.48 |
||
|
21119
|
21119
21119-1219
IGNITER
|
21119-1219 |
— | ||
|
21121
|
21121
21121-1153
COIL-IGNITION
|
21121-1153 |
— | ||
|
21130
|
21130
21130-1068 Cap-spark plug |
21130-1068 |
from US $28.57 |
||
|
21131
|
21131
21131005 GROMMET,HIGH TENSION |
21131005 |
US $7.80 |
||
|
59026
|
59026
59026-1066 COIL-PULSING |
59026-1066 |
from US $83.48 |
||
|
92027
|
92027
92027-103 COLLAR |
92027-103 |
from US $2.38 |
||
|
92070A
|
92070A
92070-1011 KA SPARK PLUG D8EA |
92070-1011 |
US $2.95 |
||
| replacements | |||||
|
92070A
|
92070A
92070-1199 SPARK PLUG DR8EA |
92070-1199 |
from US $4.50 |
||
|
92070A
|
92070A
D8EA KA SPARK PLUG D8EA |
D8EA |
US $29.50 |
||
|
92070D
|
92070D
92070-1034 KA SPARK PLUG D9EA |
92070-1034 |
US $41.60 |
||
| replacements | |||||
|
92070D
|
92070D
92070-1189 KA SPARK PLUG DR9EA |
92070-1189 |
from US $4.16 |
||
|
92070D
|
92070D
E9207-010-34
D9ea (ngk sparkplug)
|
E9207-010-34 |
— | ||
|
92071
|
92071
92071-1146 GROMMET,PLUG CAP |
92071-1146 |
from US $7.44 |
||
