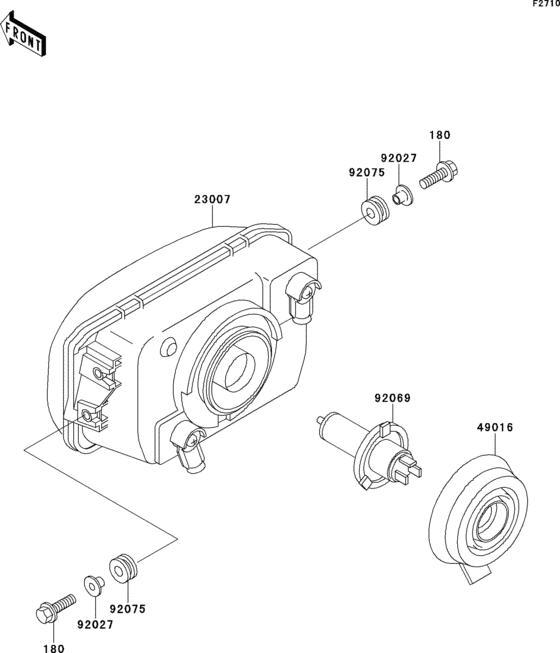

Headlight Diagram Kawasaki EX500 EX500
- Year
- 1993
- Model code
- EX500-A7
- Sales region
- Canada
- Engine Capacity
- 500
- Frame
- JKAEXVA1 PA075001 - 999999
- Model
- EX500 GPZ500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
180
|
180
180AA0625 BOLT-UPSET-WS,6X25 |
180AA0625 |
from US $1.15 |
||
|
23007
|
23007
23007-1374 Lens-comp,head lamp |
23007-1374 |
from US $284.60 |
||
|
49016
|
49016
49016-1108 COVER-SEAL,HEAD LAMP |
49016-1108 |
from US $15.52 |
||
|
92027
|
92027
92152-0365 COLLAR |
92152-0365 |
from US $0.91 |
||
|
92069
|
92069
92069-0050 BULB,12V 60/55W,H412V 60/55W,H4 |
92069-0050 |
from US $18.68 |
||
|
92075
|
92075
92075-1690 DAMPER |
92075-1690 |
from US $3.90 |
