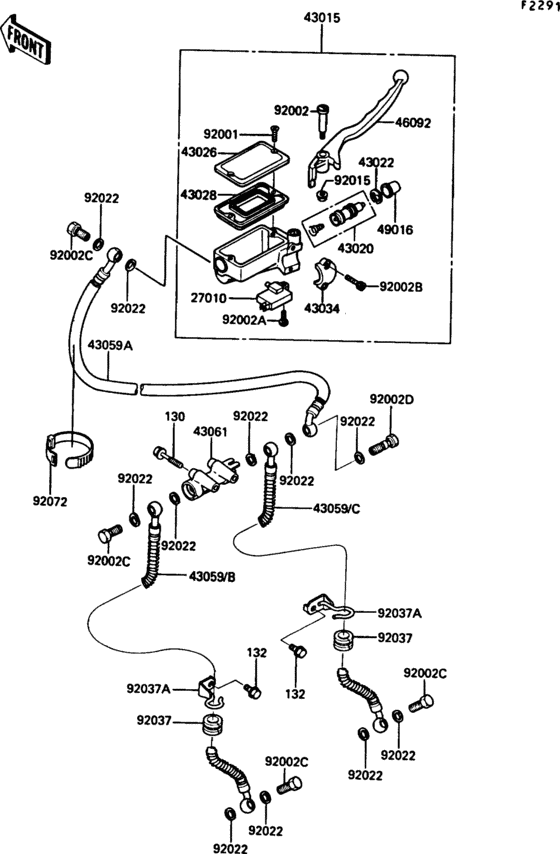

Front master cylinder Diagram Kawasaki EX500 GPZ500S
- Year
- 1990
- Model code
- EX500-B3
- Sales region
- Europe
- Engine Capacity
- 500
- Frame
- EX500A 036501 - 048000
- Model
- EX500 GPZ500S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0660 BOLT-FLANGED |
130BA0660 |
from US $1.24 |
||
|
132
|
132
132BB0610 BOLT-FLANGED-SMALL,6X |
132BB0610 |
from US $1.11 |
||
|
27010
|
27010
27010-0025 SWITCH,BRAKE |
27010-0025 |
from US $23.19 |
||
|
43015
|
43015
43015-1377
Cylinder-assy-master,
|
43015-1377 |
— | ||
|
43020
|
43020
43020-1056 PISTON-COMP-BRAKE,FR |
43020-1056 |
from US $45.15 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPER |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1055 CAP-BRAKE,FR |
43026-1055 |
from US $35.31 |
||
|
43028
|
43028
43028-1058 DIAPHRAGM,MASTER CYLI |
43028-1058 |
from US $16.16 |
||
|
43034
|
43034
43034-1053 HOLDER-BRAKE,MASTER C |
43034-1053 |
from US $24.24 |
||
|
43059
|
43059
43059-1617 Hose (brake), fr |
43059-1617 |
US $91.85 |
||
|
43059A
|
43059A
43059-1842 HOSE-BRAKE,FR |
43059-1842 |
from US $66.60 |
||
|
43061
|
43061
43061-1004 JOINT BRAKE |
43061-1004 |
from US $50.27 |
||
|
46092
|
46092
46092-1117 LEVER-GRIP,FRONT BRAKE |
46092-1117 |
from US $21.24 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDER |
49016-1044 |
from US $10.61 |
||
|
92001
|
92001
92001-1727 BOLT,MASTER CYLINDER |
92001-1727 |
from US $2.85 |
||
|
92002
|
92002
92002-1322 BOLT,LEVER SET |
92002-1322 |
from US $7.13 |
||
|
92002A
|
92002A
92002-1323 Bolt |
92002-1323 |
from US $2.53 |
||
|
92002B
|
92002B
92153-0417 BOLT,SOCKET,6X20 |
92153-0417 |
from US $3.80 |
||
|
92002C
|
92002C
92153-0627 BOLT,OIL,L=23 |
92153-0627 |
from US $2.85 |
||
|
92002D
|
92002D
92153-0628 BOLT,OIL,L=37 |
92153-0628 |
from US $6.65 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MM |
92015-1233 |
from US $3.90 |
||
|
92022
|
92022
49091-0001 WASHER-SEAL,10.1X14.5 |
49091-0001 |
US $2.81 |
||
|
92037
|
92037
43064007 DAMPER RUBBER |
43064007 |
from US $3.64 |
||
|
92037A
|
92037A
92171-0105 CLAMP,BRAKE HOSE |
92171-0105 |
from US $11.66 |
||
|
92072
|
92072
92072-056 BAND,WIRING HARNESS |
92072-056 |
from US $3.17 |
